Delivery Date:
07/19/2021
Department Name:
Lodi Fire Department
Department City / State:
Lodi, OH

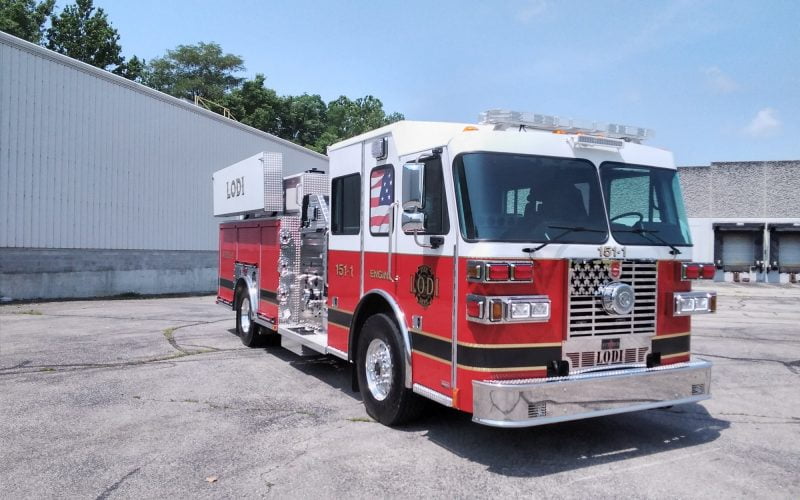

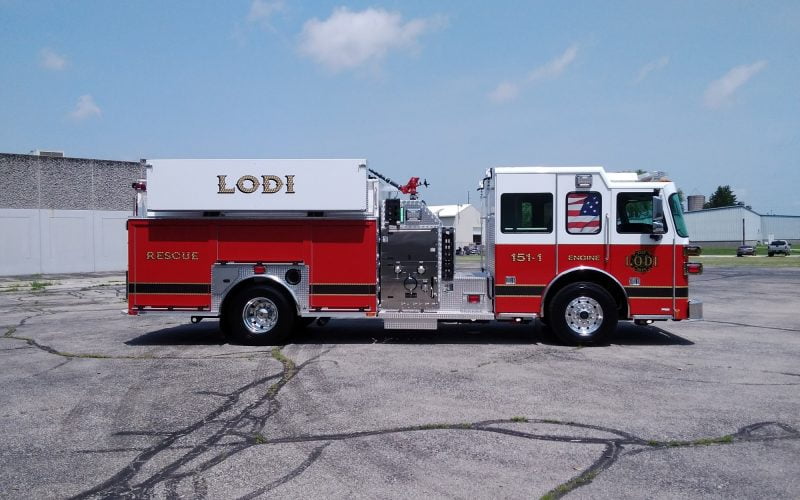

Truck Type:
Sutphen Corporation – HS #6862
Dealer – Herb Fire
WHEELBASE: 209”
TRAVEL HEIGHT: 10’
TRAVEL LENGTH: 32’
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (110K PSI)
- Front Axle and Suspension 19,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins L 9 450 HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS 3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 3” Deck Gun
- Speedlay: (2) 2” w/ 1 ½” Swivels
- Crosslay: (1) 2 ½” w/ 2 ½” Swivel
- 1500 Gallon Water Tank
- 20 Gallon Foam Tank

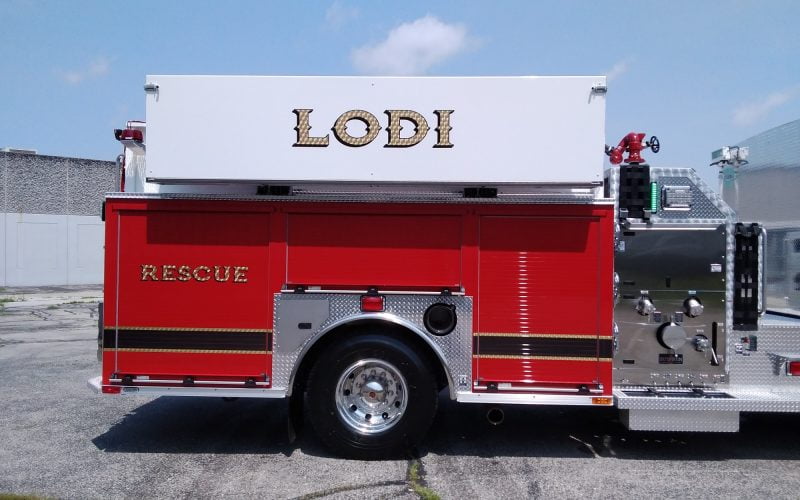

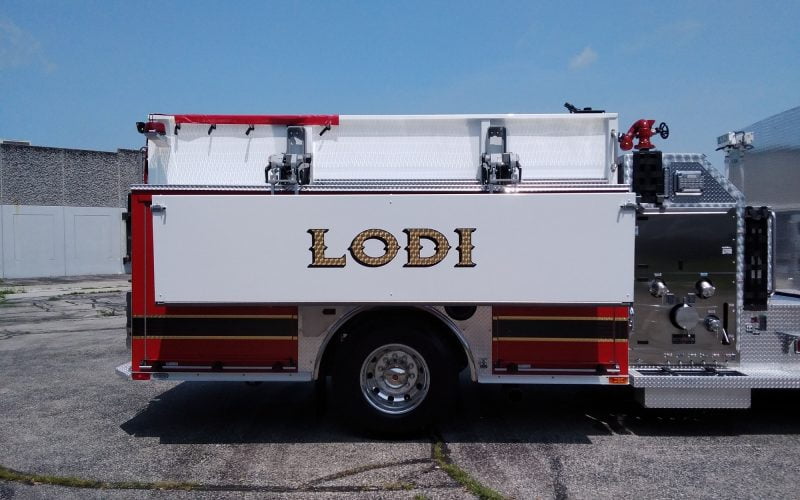

BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-up compartment doors, Painted
- Over 186 cu. ft. Total Compartment Space

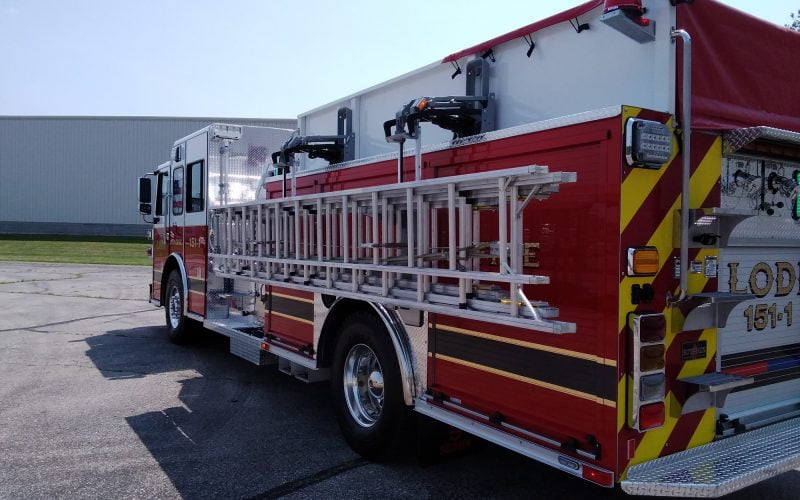

- Alco-Lite Ladder Package: 30’ 3-section EXT Ladder, PRL-14 14’ Roof, 10’ Folding
- Ziamatic Quic-Lift Electric Ladder Rack, Extend Down
- Body: G7 – Aluminum 40/51 Electric Ladder Rack
ADDITIONAL EQUIPMENT:

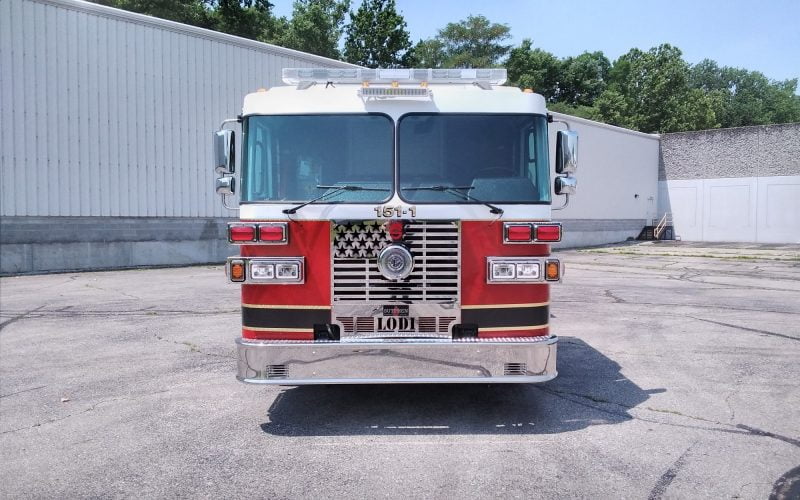

- 6” Polished Stainless-Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera: FRC Inview Trueview Single Camera
- Firetech FT-MB-2.18 Brow
- Whelen Freedom IV 72” LED Light Bar
- Whelen PFH2 Tele Lights
- Whelen 600 Red LEDs
- Whelen L31 Beacon
