Delivery Date:
10/12/2018
Department Name:
Lebanon Fire Department
Department City / State:
Lebanon, OH
Truck Type:
WHEEL BASE: 185”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 30’ – 10”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension
- Rear Axle and Suspension
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

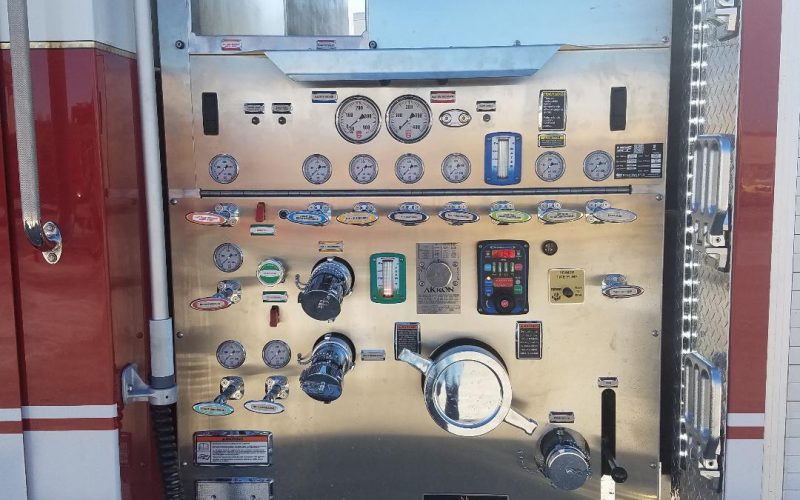

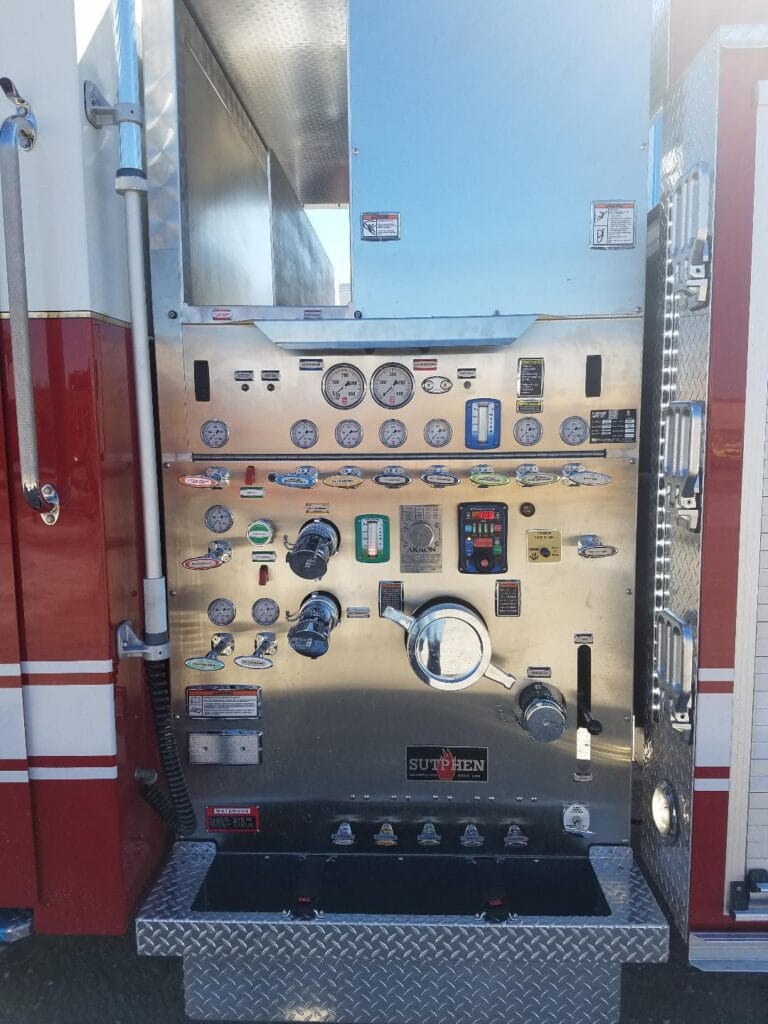

PUMP: Waterous
- CSU-1500, Single Stage
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 2” with 1 ½” Swivel
- 30-Gallon Foam Tank
- 1,000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Compartment Doors
- 150 cu. ft. Total Compartment Space
- Alco-Lite Ladders (PEL-24, 24’ 2-Section & PRL-14, 14’ Roof & 10’ Folding)
OPTIONAL EQUIPMENT:
- 24” Bumper Extension, 2” Raised Lid, and Full-Width, Deep-Center Trough
- Safety Vision SV-CLCD0-70, Camera System
- Federal Q2B Siren
- Pike Pole Holders
- Whelen Freedom IV 72” LED Light Bar
- FR Spectra, LED, Brow 15K Lumens, 12V
- FR Spectra, LED, Tele, 15K Lumens, 12V
