Delivery Date:
09/08/2018
Department Name:

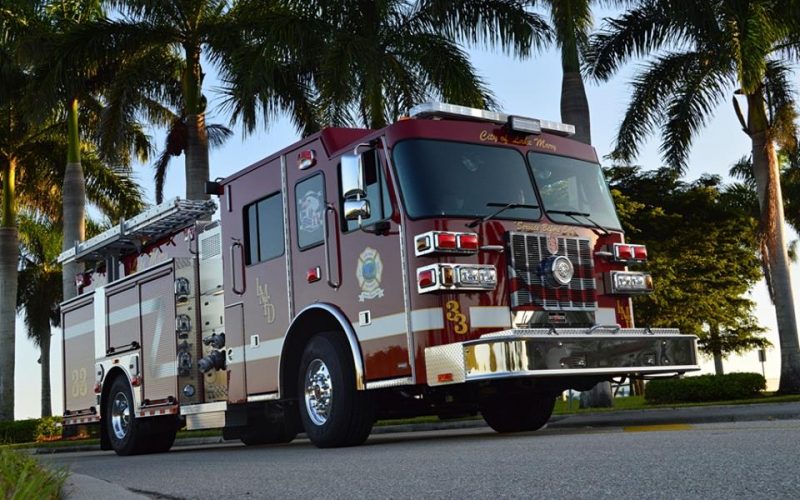

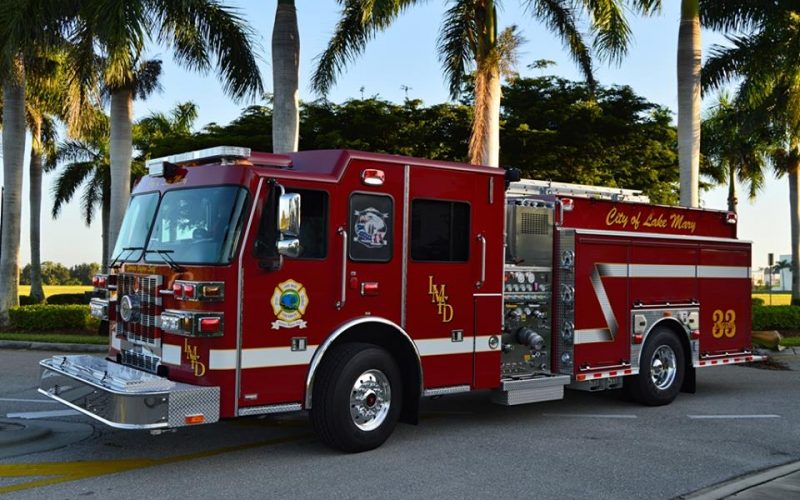

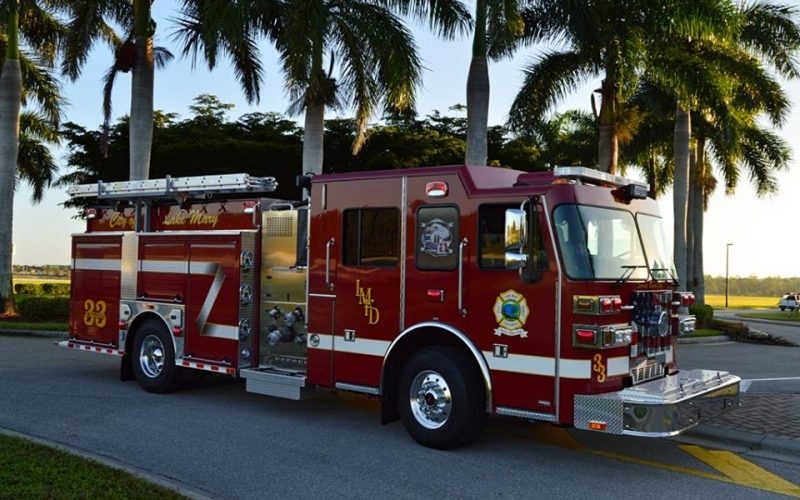

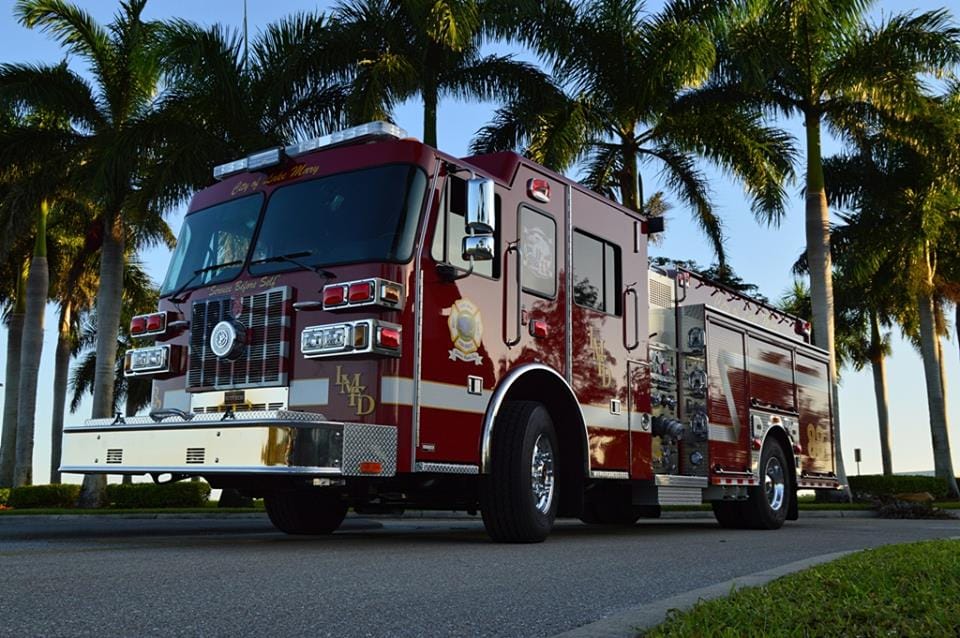

Lake Mary Fire Department
Department City / State:
Lake Mary, FL
Truck Type:
WHEEL BASE: 196”
TRAVEL HEIGHT: 9’ – 4”
TRAVEL LENNGTH: 32’ – 11“
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-200 GPM Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear,
- 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (2) 2” with 1 ½” Swivel
- 30-Gallon Foam Tank
- Elkhart Foam Supply System
- 750-Gallon Water Tank
BODY: Sutphen
- Aluminum
- Amdor Roll-Up Compartment Doors
- 266 cu. ft. Total Compartment Space
- Duo Safety Ladders (24’ 2-Section, 14’ Roof and 10’ Folding Attic Ladder)
OPTIONAL EQUIPMENT:
- 24” Bumper Extension, 2” Raised Lid, and Full-Width, Shallow Trough
- Rear Vision Camera
- Ziamatic Hydraulic Ladder Rack
- Pike Pole Storage (2)
- Harrison 8kw Generator
- Hannay Electric Cord Reel, 150’ (1)
- Federal Q2B Siren
