Delivery Date:
02/09/2022
Department Name:
La Porte Fire Department
Department City / State:
La Porte, TX
Truck Type:
Sutphen Corporation – HS #6751
WHEELBASE: 185”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 31’ – 8”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Half Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Rails, Single Frame Rails (50K PSI)
- Front Axle and Suspension 18,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: C.E. Niehoff 360AMP
- Transmission: Allison Gen 5, EVS3000

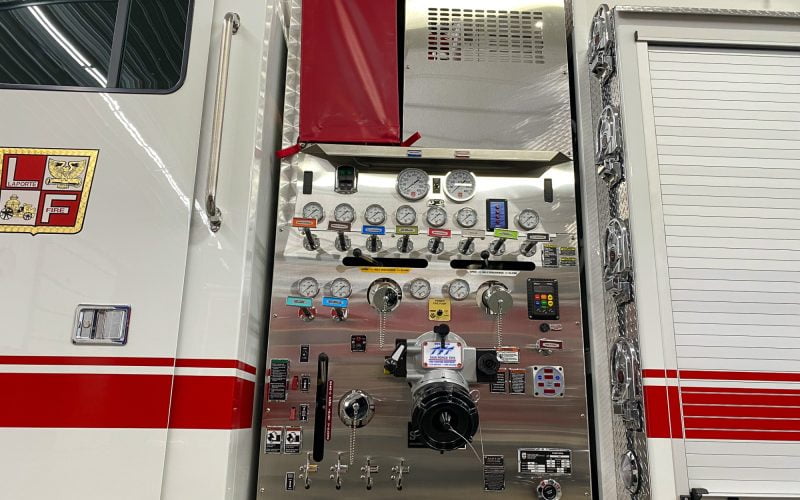

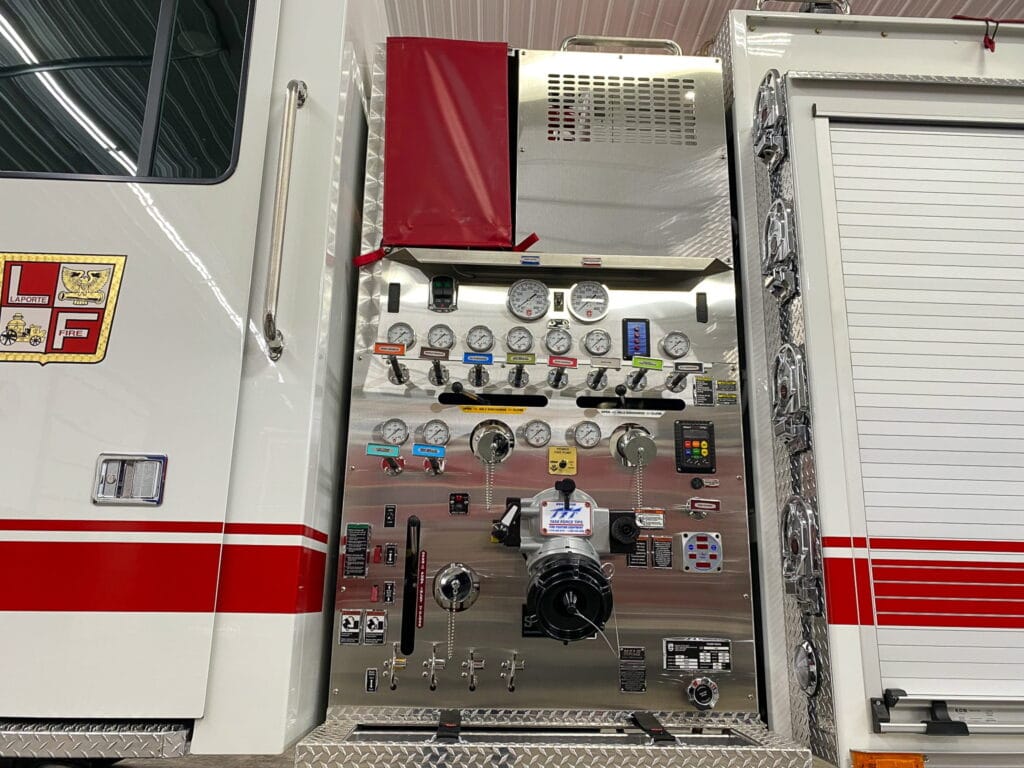

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½“ Right Rear,
- (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- 750-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-up Compartment Doors
- Over 230 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: Pel-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: S2 Alum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Hannay Electric Cord Reel 150’ (1)
- Camera System: Safety Vision SV-CLCDO-70 Wired
- Generator: 10KW Smart Power
- FR Spectra 12V Scene Lights
- Whelen Freedom IV 72” LED Light Bar
- FRC Spectra 12V LED Brow Light
- Command Light KL408A-W1
- FireTech Work Lights
