Delivery Date:
11/09/2019
Department Name:
Kerrville Fire Department
Department City / State:
Kerrville, TX

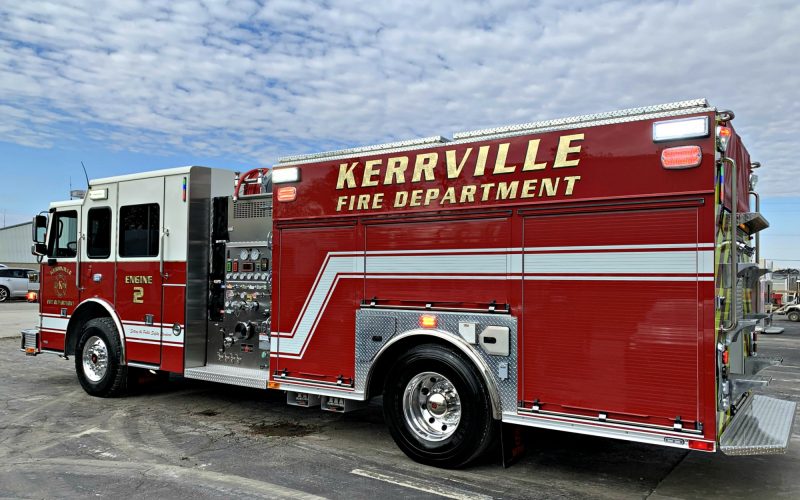

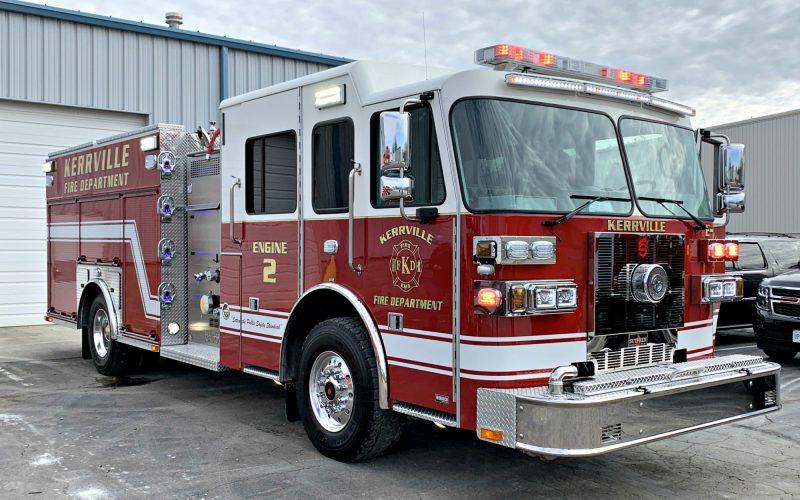

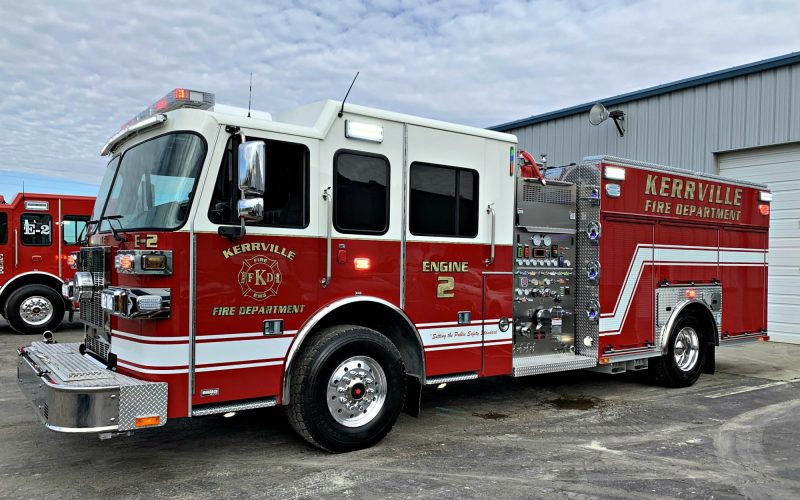

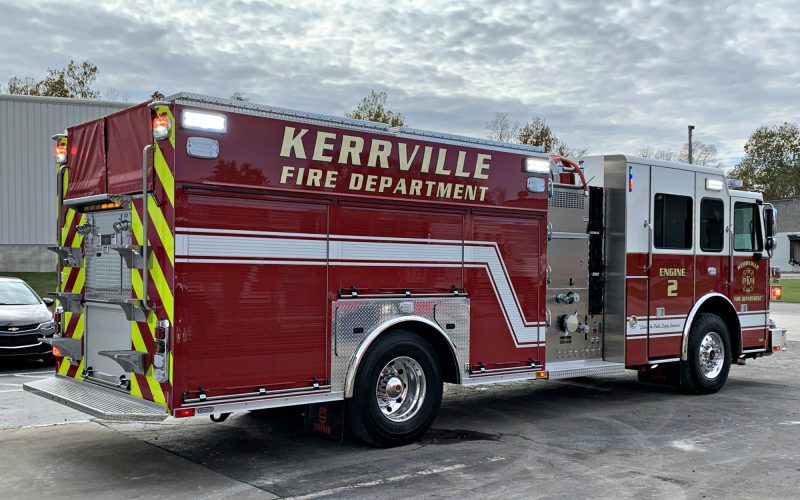

Truck Type:
Sutphen Corporation – HS #6480
WHEEL BASE: 203”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 32’ – 10”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (1) 2 ½”
- Speedlay: (2) 2” with 1 ½” Swivel & Poly Lift-Out Tray
- 750-Gallon Water Tank
- 30-Gallon Foam Tank
- Hale Foamlogix 2.1 with 20-Gallon Tank and Intelli-Tank Gauge
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- 246 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chutes
- Body: G9 – Alum 40/51 Ladders Through the Tank
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Safety Vision SV-CLCD0-70, Camera System
- Hannay Electric Cord Reel, 150’ (1)
- 10 SCBA Cylinder Compartments
- Whelen Freedom LED Lightbar
- HiViz 3-Piece Brow Light
- FRC Spectra 12V LED Scene Lights
- Whelen TIR6 LED, TAM65 36”, Traffic Advisor
