Delivery Date:
08/05/2020
Department Name:
Johnson City Fire Department
Department City / State:
Johnson City, NY
Truck Type:
Sutphen Corporation – HS #6612
Dealer – Vander Molen Fire Apparatus Sales and Service
WHEELBASE: 172”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 29’ – 5 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1,500 GPM, Single Stage Pump
- Discharges: (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 3” Deck Gun
- Crosslay: (2) 1 ½” w/ Swivel, (1) 2 ½” w/ Swivel
- 750-Gallon Water Tank
BODY: Sutphen
- AMDOR Roll-Up Compartment Doors
- 249 Cu. Ft. Compartment Space
- Alco-Lite Ladder Package (24’ 2-Section, 14’ Roof and 10’ Folding)
- Electric Ladder Rack
- Body: S4-Alum 30/53
ADDITIONAL EQUIPMENT:

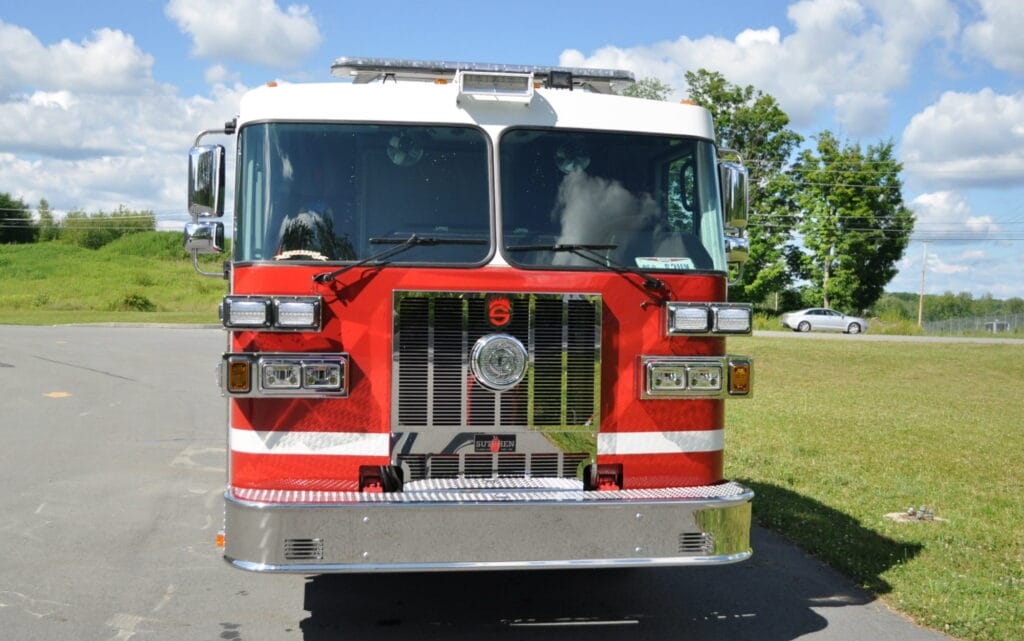

- 12” Polished Stainless-Steel Bumper
- Federal Q2B Siren, Grille Mount
- 4 Bottle Compartments
- Whelen PFH2 LED Brow Light
- Whelen Justice LED Lightbar
- Whelen PFP2 LED Scene Light
- Whelen PFH2 telelights
- Whelen L31 Beacons
- Whelen M9 Scene Lights
