Delivery Date:
08/12/2018
Department Name:
Islamorada Fire Rescue
Department City / State:
Islamorada, FL
Truck Type:
WHEEL BASE: 199”
TRAVEL HEIGHT: 10’ – 1”
TRAVEL LENGTH: 33’ – 3”
CHASSIS: Sutphen 73” cab with half 15” raised roof
- Four-Door, Five-Person cab
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: LEece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

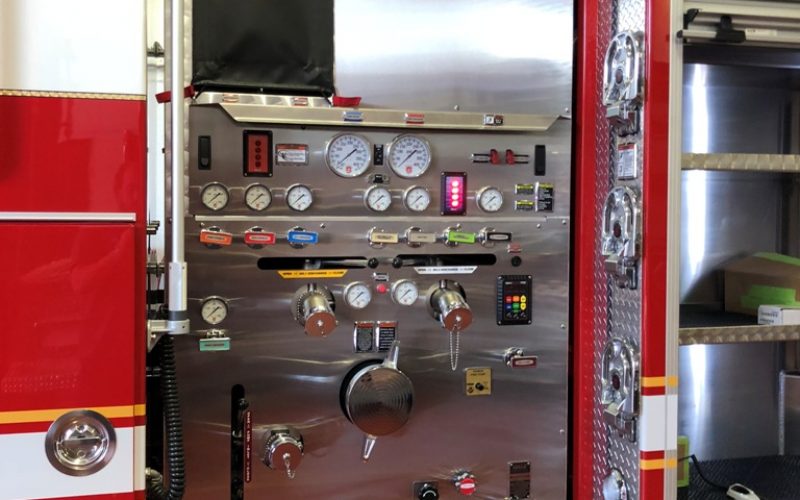

PUMP: Hale
- QMAX-1500 GPM
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front Left of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- 1000-gallon water tank
- 50-gallon foam tank
- Elkhart Foam Supply System with Flush
BODY: Sutphen
- Aluminum
- Rom Roll-Up Doors
- Alco-Lite PEL-24

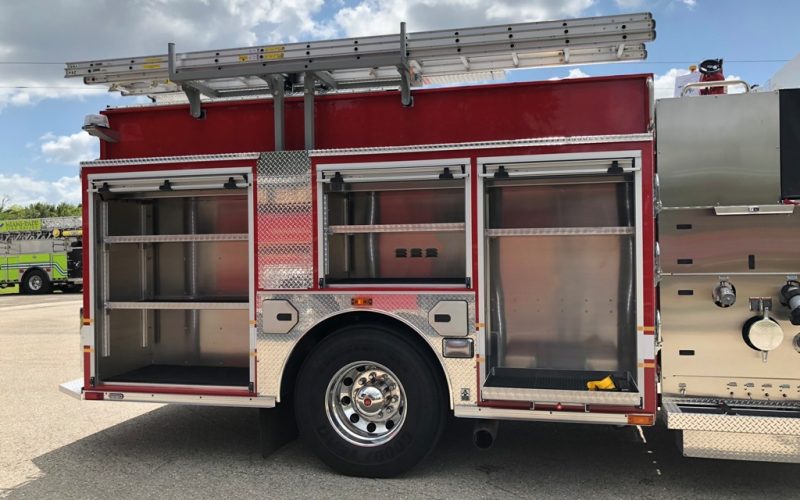

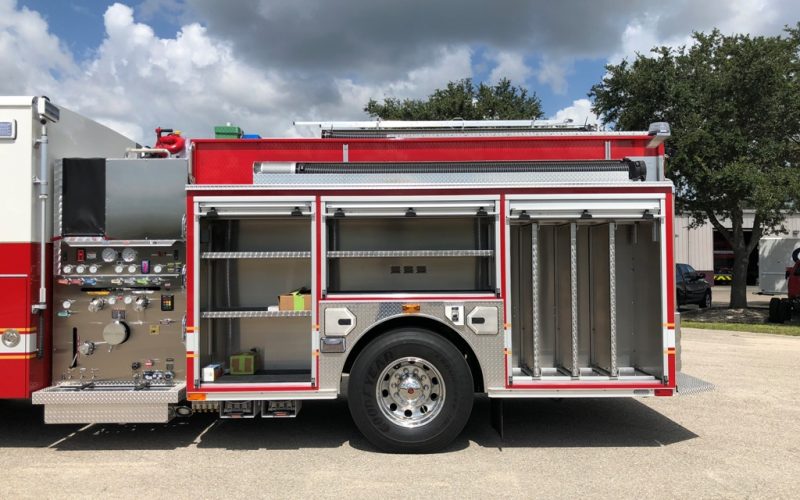

- 5 cu. ft. Total Compartment Space
OPTIONAL EQUIPMENT:
- Ziamatic Hydraulic Ladder Rack
- Warning-Scene Lights, Whelen M9V2
- 12 V PP for a Hand-Held Spotlight
- 24” Bumper
- Federal Q2B
