Delivery Date:
11/16/2022
Department Name:
Inlet Volunteer Hose Co.
Department City / State:
Inlet, NY
Truck Type:

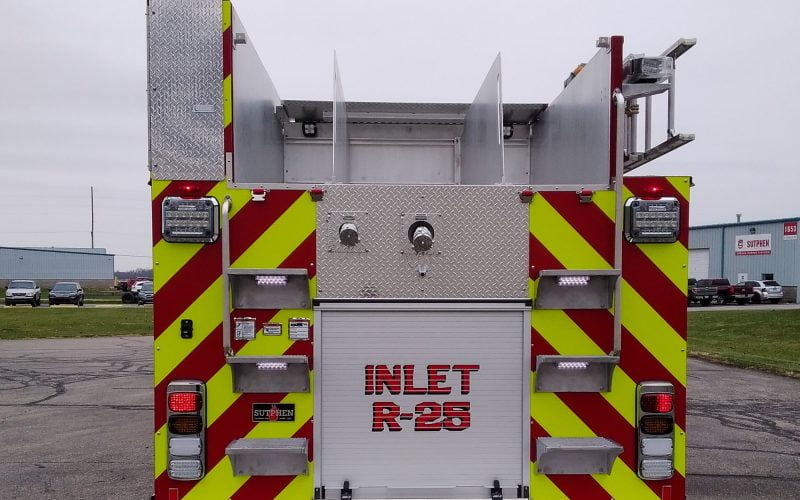

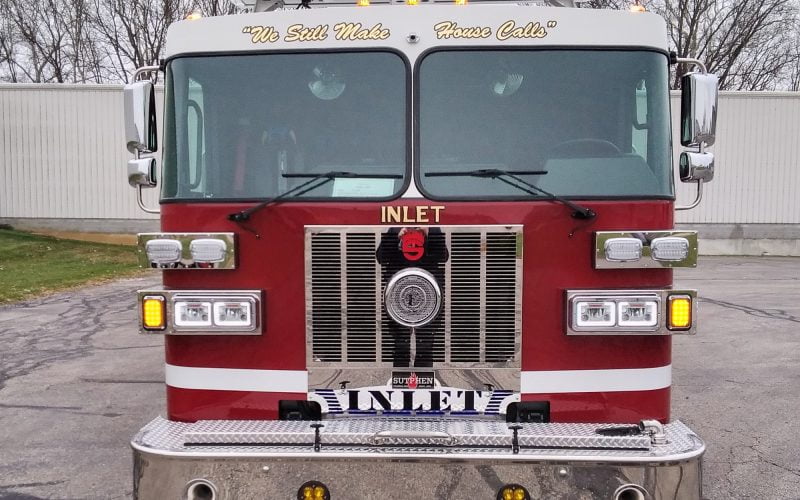

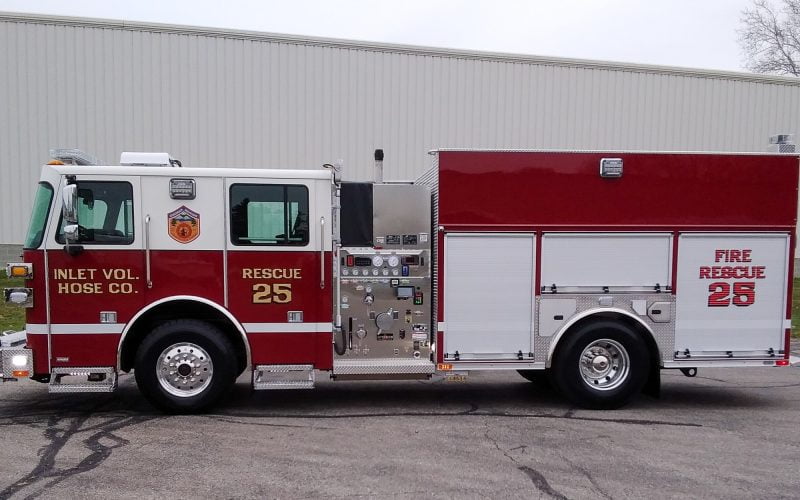

Sutphen Corporation – HS #7133
Dealer – Vander Molen Fire Apparatus Sales and Service
WHEELBASE: 185”
TRAVEL HEIGHT: 9’ – 11”
TRAVEL LENGTH: 31′ – 4”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” cab with Flat Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 31,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: Delco-Remy 430 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharge: (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front/Right of Main Hosebed, 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (2) 2” w/ 1 ½” Swivel
- 1,500-Gallon Water Tank
- 20-Gallon Foam Tank
- Foam System: Hale Smartfoam 2.1A
BODY: Sutphen
- 3/16” Extruded Aluminum
- AMDOR Roll-Up Compartment Doors
- 193 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: G7 – Alum 40/51 Electric Ladder Rack
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade, Backeye 360 Camera System
- Ziamatic Quic-Lift Electric Ladder Rack
- Whelen Freedom LED Lightbar w/ PFH2 Integrated
- FireTech FT-SL-15-X-FT-W Telescopic Lights
- FireTech Guardian Elite
