Delivery Date:
02/23/2021
Department Name:
Indian River County
Department City / State:
Vero Beach, FL
Truck Type:
Sutphen Corporation – HS #6755
Dealer – South Florida Emergency Vehicles
WHEELBASE: 196”
TRAVEL HEIGHT: 10’
TRAVEL LENGTH: 32’ – 8”

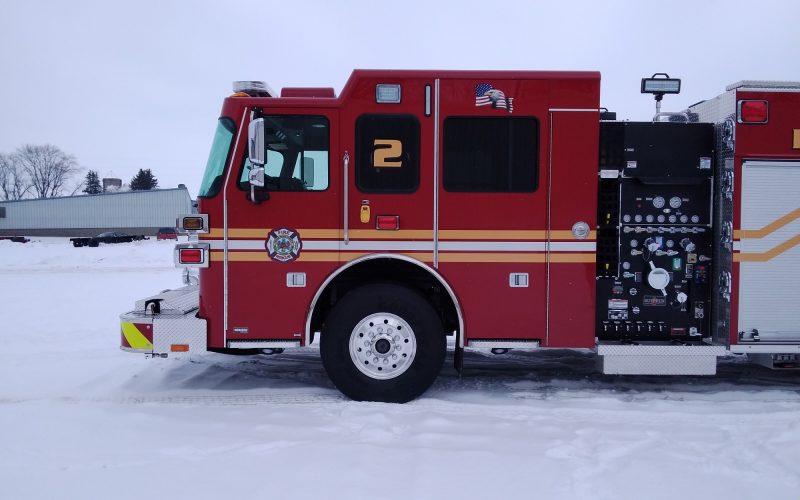

CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension Reyco 24,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000R
PUMP: Waterous
- S101 1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (1) 2 ½”
- Speedlay (2) 2”
- 750-Gallon Water Tank
- 20-Gallon Foam Tank

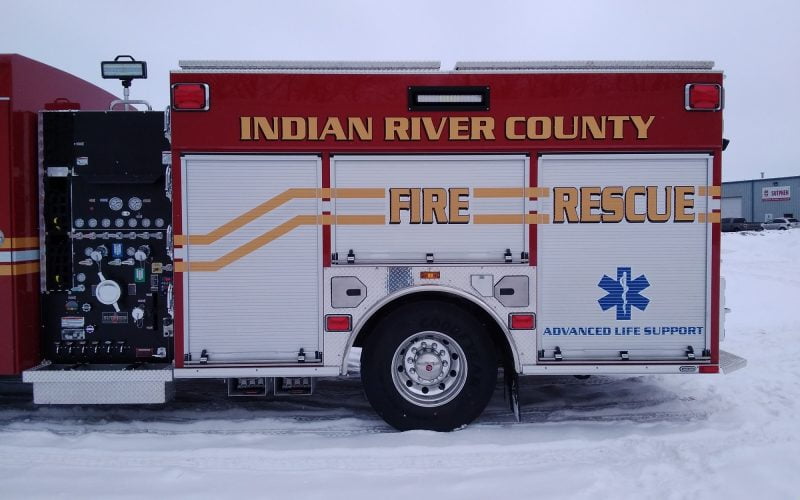

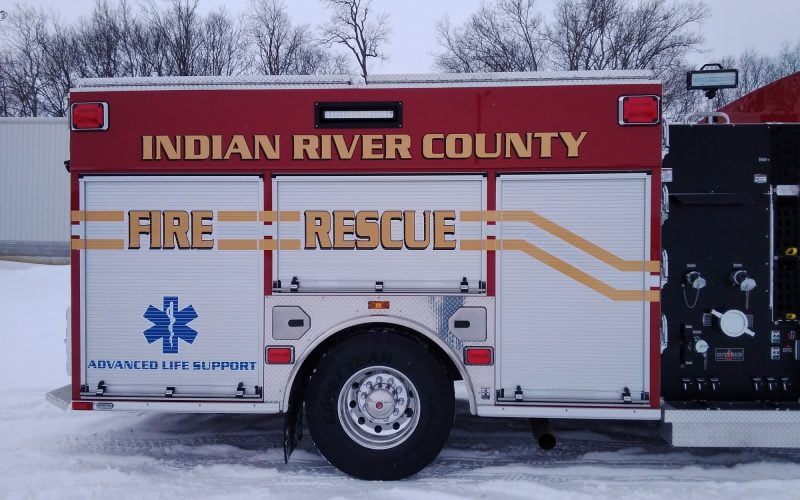

BODY: Sutphen
- Alum 40/51 Ladders Thru Tank
- Amdor Roll-Up Compartment Doors Satin Finish
- 294 cu. ft. Total Compartment Space
- Ladder Chute w/ Suction Hose Storage
- Body: G9
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless-Steel Bumper
- Federal Q2B Siren, Grille Mount
- Whelen Freedom IV 72” LED Light Bar
- FRC Spectra Brow Light
- Whelen 900 LED Red Lights
- Whelen 600 Red LED Lights
