Delivery Date:
01/20/2022
Department Name:
Hoover Fire Department
Department City / State:
Hoover, AL
Truck Type:
Sutphen Corporation – HS #6968-69
Dealer – Williams Fire
WHEELBASE: 179 ½”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 31’ – 8 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 18,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS 3000

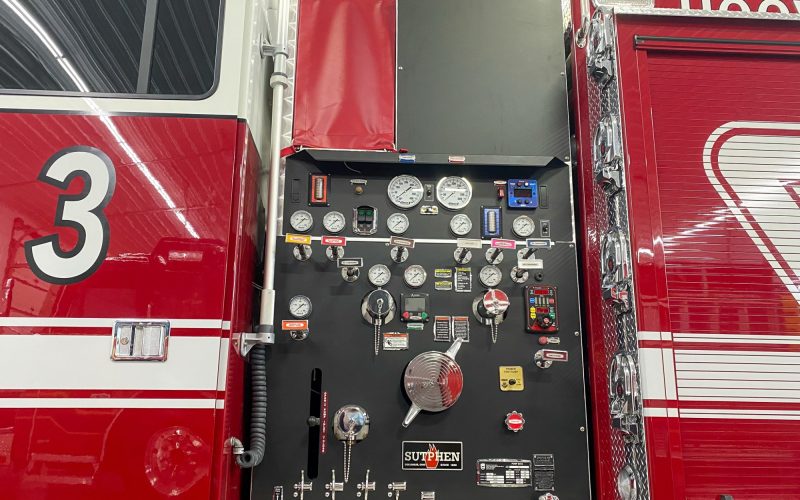

PUMP: Hale
- QFLO-1250 GPM Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 2” w/ 1 ½” Swivel
- 600-Gallon Water Tank
- 50-Gallon Foam Tank
- Foam System: FoamPro 2002, 5.0 GPM
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-up Compartment Doors, Satin Finish
- 197 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
- Ladder Chute w/ Backboard Storage
- Body: S2 – Aluminum 43/53 Ladder Chute. Low Hosebed.
ADDITIONAL EQUIPMENT:
- 20” Formed Steel Channer, Painted
- Federal Q2B Siren, Front Bumper Mount
- Intercom System: FireCom Wireless
- Camera System: (2) Pro-Vision 900 DVR System
- FRC Spectra LED Brow Light
- Whelen Freedom IV 81” LED Light Bar
- Opticom Mounted on Roof
- FRC Spectra Tele Lights
- Whelen M9CZ LED Combo Warning/Scene Lights
