Delivery Date:
08/14/2020
Department Name:
Hempfield Fire Department
Department City / State:
Greensburg, PA

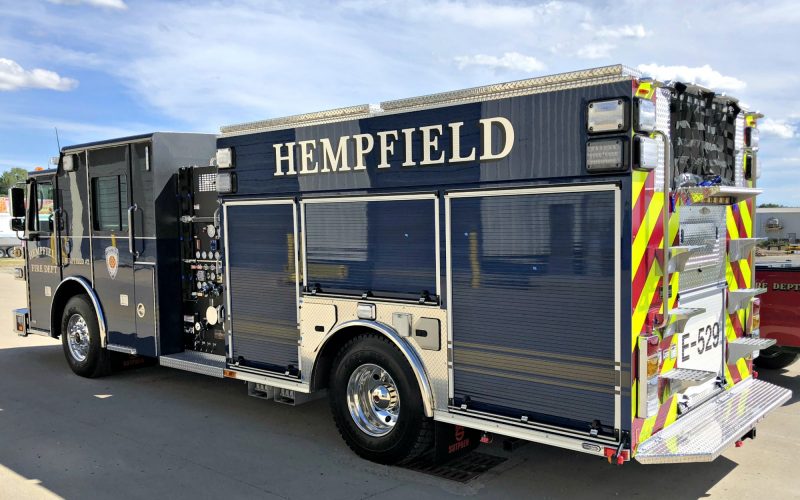

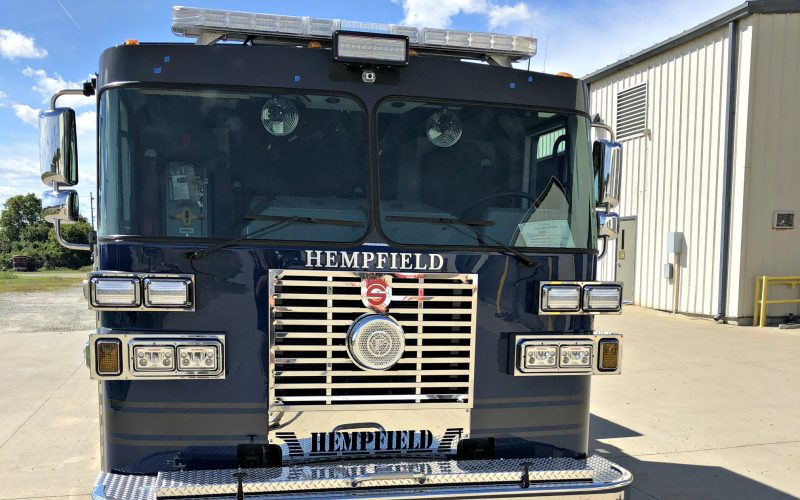

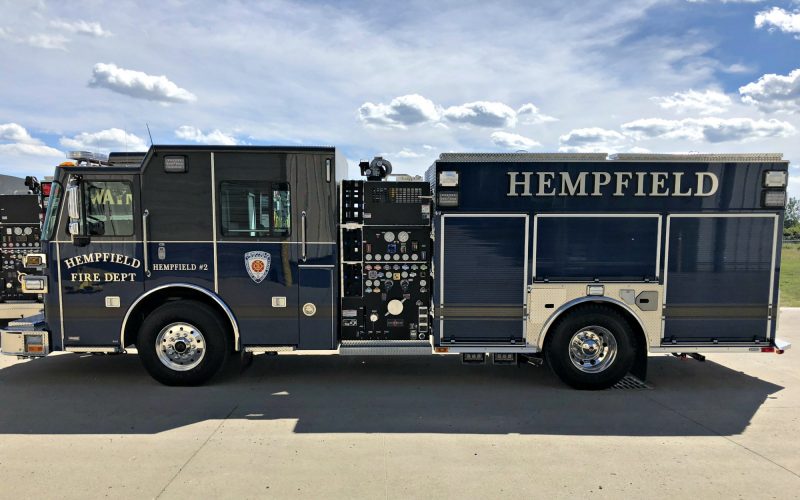

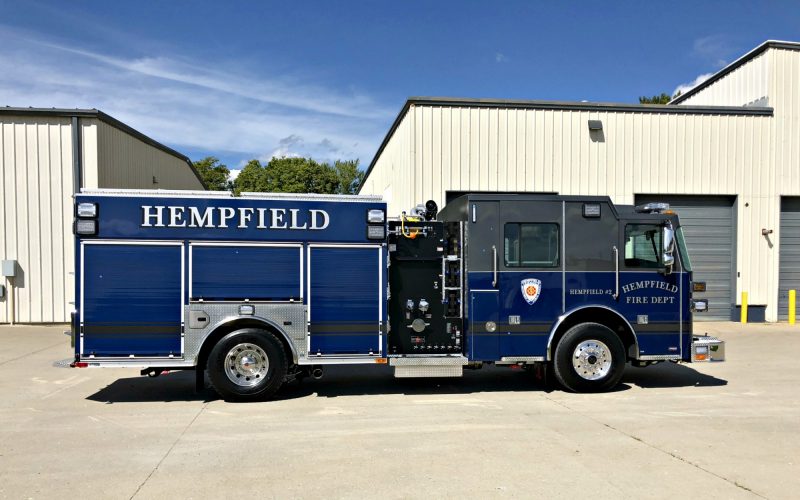

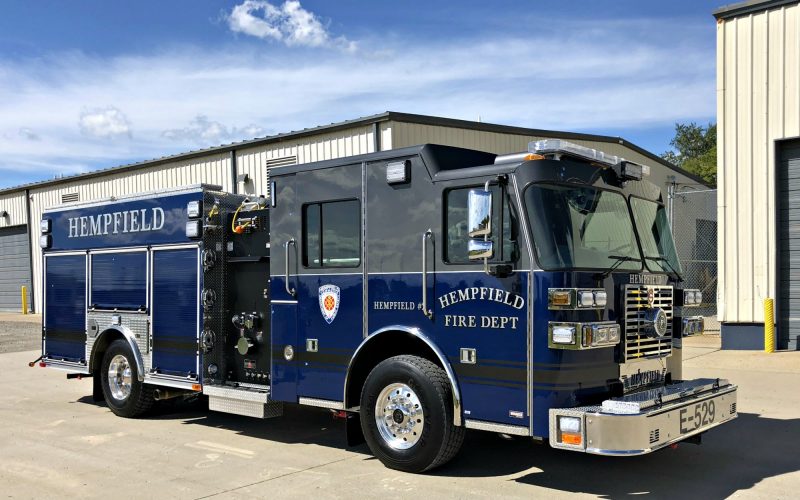

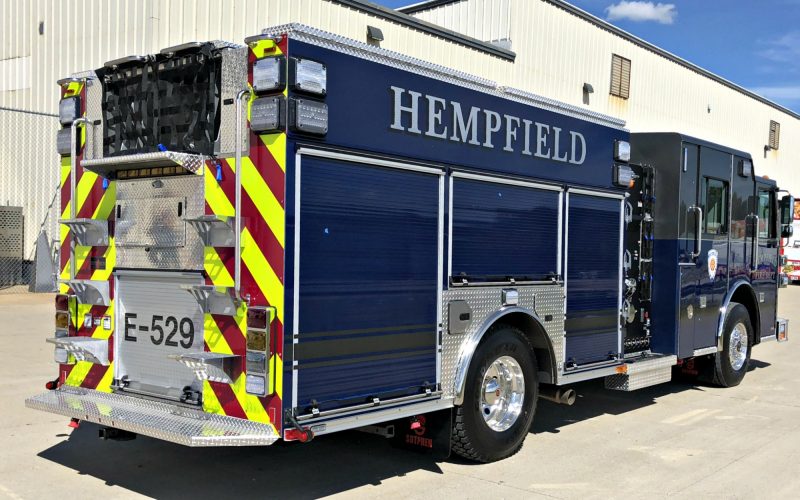

Truck Type:
Sutphen Corporation – HS #6614
Dealer – FAST of the Allegheny Mountains
WHEELBASE: 196”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 32’ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS 3000
PUMP: Hale
- XS QMAX 2000 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (1) 2 ½”
- Speedlay: (2) 2” w/ Swivels and Poly Lift-Out Trays
- Monitor: TFT Hurricane Remote Control Deck Gun with RC Riser, RC 1250 GPM Automatic Nozzle, Quad Stacked Tips and Wireless Remote Control
- 750-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: FoamPro 2001, 2.6 GPM
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- 246 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chute
- Body: G9-Alum 40/51 Ladders Through Tank
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade, Backeye 360 Camera System
- Intercom System: Firecom Combination Wireless and Wired
- Generator: Smart Power 8KW TM HYD
- Hannay Electric Cord Reel, 150’ (1)
- Will-Burt Light Tower
- Whelen Freedom IV 72” LED Lightbar
- Whelen 900 Scene Light
- FRC Spectra LED Brow Light
- Whelen 900 Warning Light
