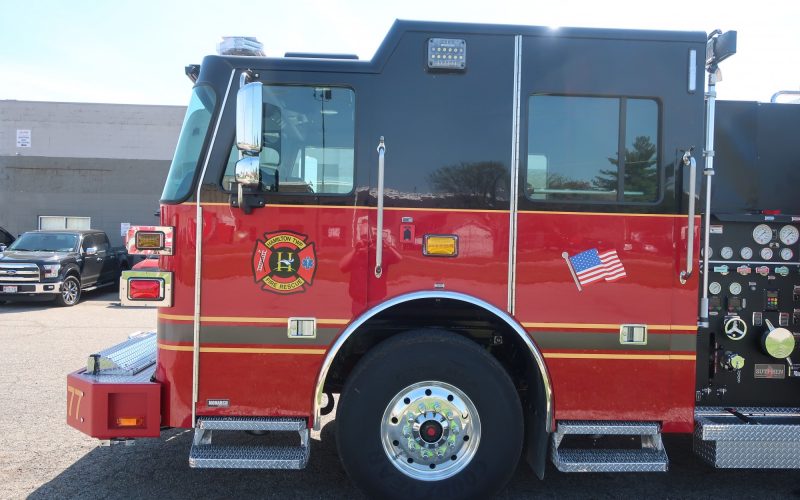

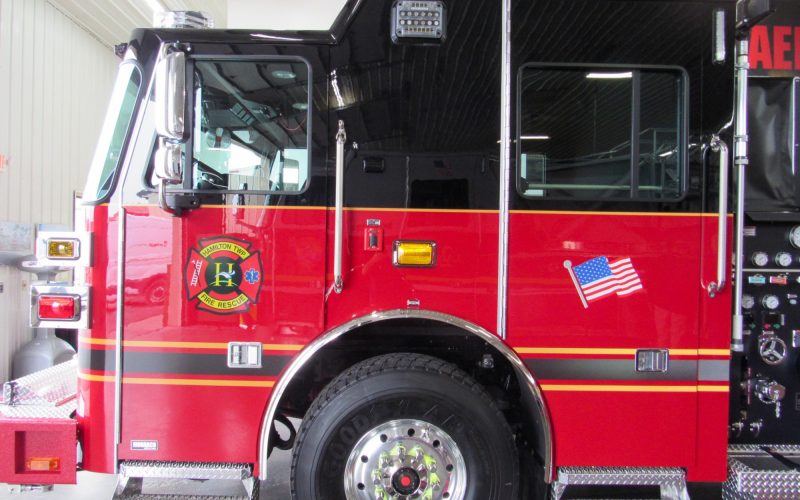

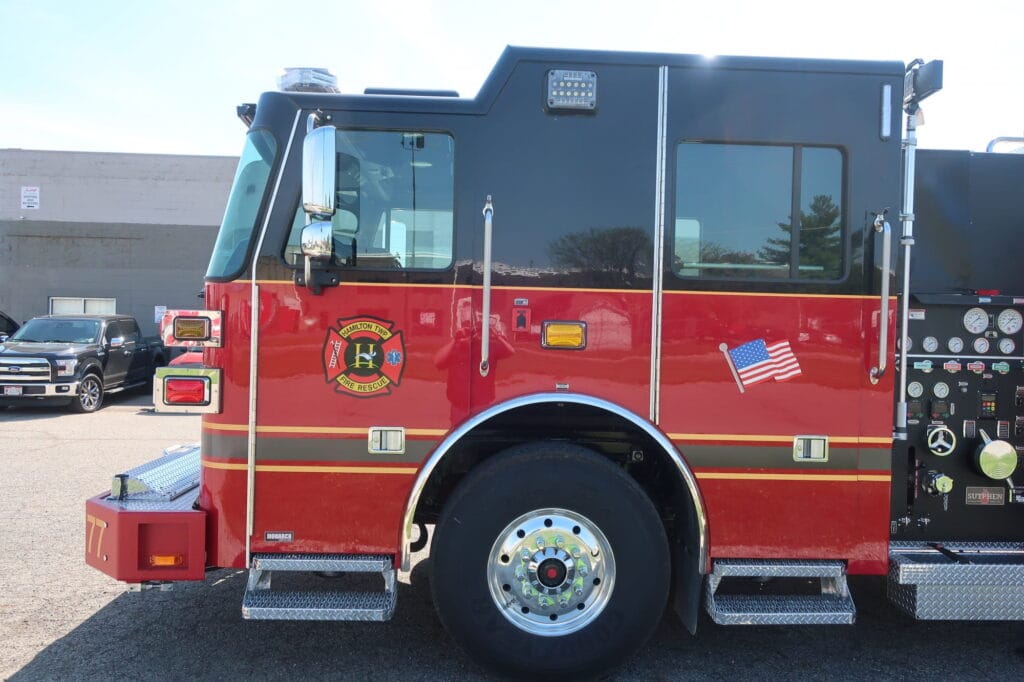

Custom Pumper – Hamilton Township Fire and Rescue, OH

Sutphen Corporation – HS #6890

Dealer – Heritage Fire Equipment

WHEELBASE: 186”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 31’-8 ½”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 62” extended cab with 10” raised roof

• Four-Door, Four-Person Cab
• 10” Double Rails, Single Axle (50K PSI)
• Front Suspension 23,000 lbs.
• Rear suspension 27,000lbs.
• Engine: Cummins X 12, 500 HP
• Alternator: Leece Neville 420 AMP
• Transmission: Allison Gen 5, EVS4000

PUMP:                  Hale

• QMAX-1,500 GPM Single Stage Pump
• Discharges: (1) 4” Right, (2) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front Bumper Discharge, (1) 3” Deck Gun
• Crosslay/Speedlay: (2) 2” w/Swivel
• 1000-Gallon Water Tank

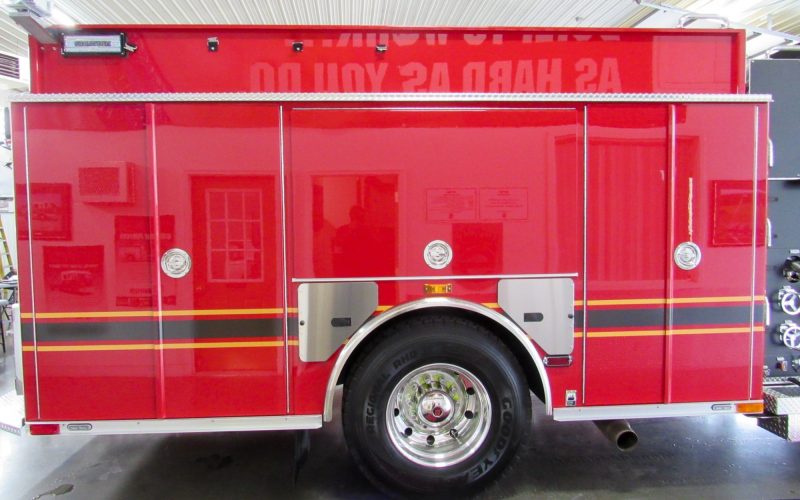

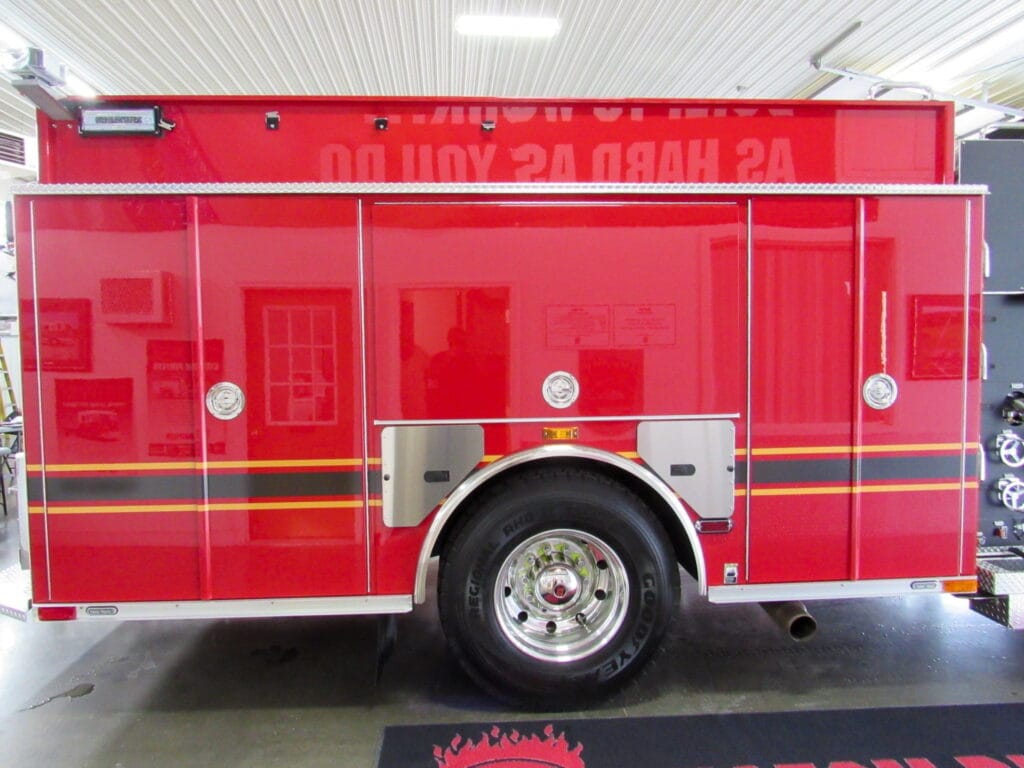

BODY:                   Sutphen

• Aluminum 43/53
• Mixed Amdor Roll-Up and Hinged Compartment Doors Satin Finish
• 6 cu. ft. Total Compartment Space
• Body: Custom Pumper S9

ADDITIONAL EQUIPMENT:

• 18” Formed Steel Channel Bumper, Painted
• Federal Q2B Siren, Grille Mount
• Firetech 3-Piece 72” 12V LED Brow Light
• Whelen Freedom IV 72” LED Light Bar
• (2) Grover 2040 Air Hrons
• FRC Spectra 12V LED Scene Lights
• Firetech Guardian Elite FT-GSEM 12V LED Scene Lights
• Whelen Quad 600 Taillights
