Custom Pumper – Hamilton Fire Department, OH

Sutphen Corporation – HS #6884-#6942

Dealer – Heritage Fire Equipment

WHEELBASE: 184.5”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 31’ – 6 1/2 “

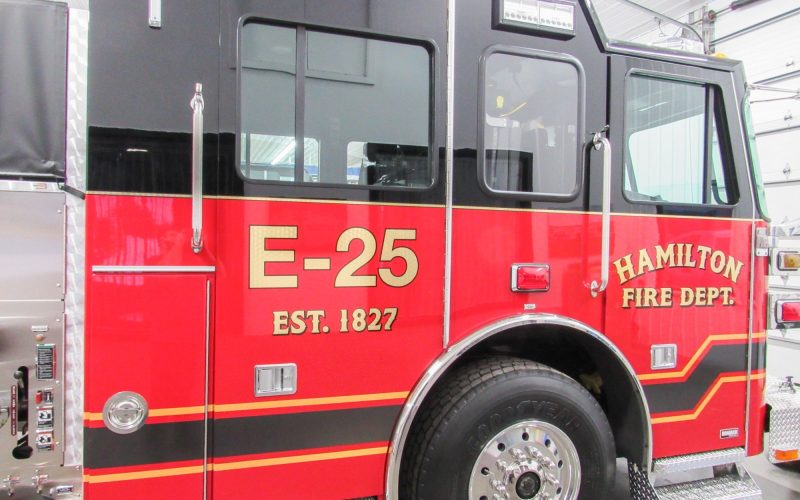

CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

• Four-Door, Six-Person Cab
• 10” Double Domex Frame Rails (110K PSI)
• Front Axle and Suspension 18,000 lbs
• Rear Axle and Suspension 24,000 lbs
• Engine: Cummins L 9 450HP
• Alternator: Leece Neville 320 AMP
• Transmission: Allison Gen 5, EVS 3000

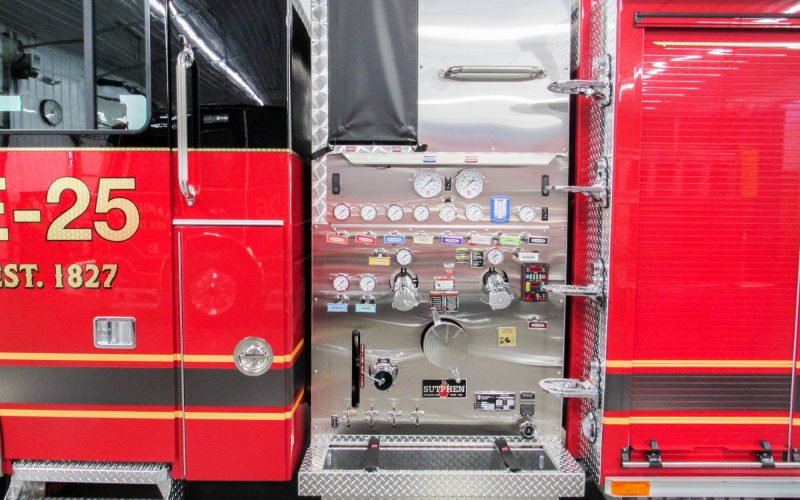

PUMP:                  Hale

• QMAX 1500 GPM Single Stage Pump
• Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hose Bed,

(1) 2 ½ “Front/Right of Main Hose Bed, (1) 2 ½” Rear, (1) 1 ½ “ Front Bumper, (1) 3” Deck Gun

• Crosslays: (2) 2” w/ 1 ½” Swivels
• 500 Gallon Water Tank

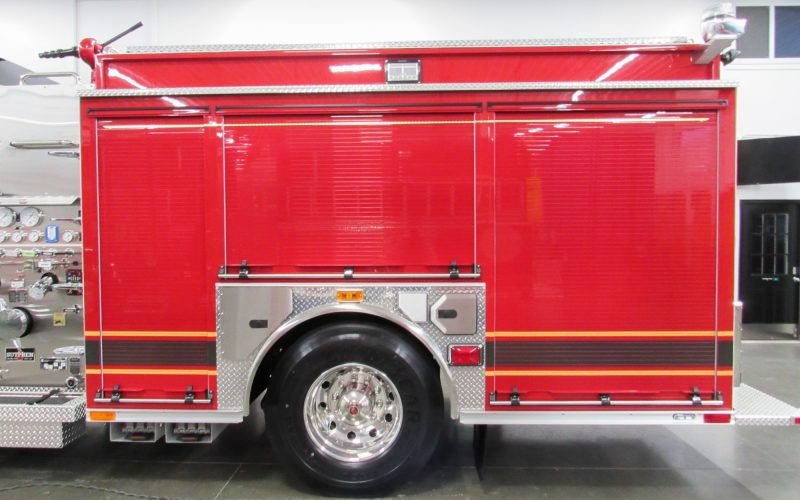

BODY:                   Sutphen

• 3/16” Extruded Aluminum
• Amdor Roll-up Compartment Doors, Painted
• 228 cu. ft. Total Compartment Space

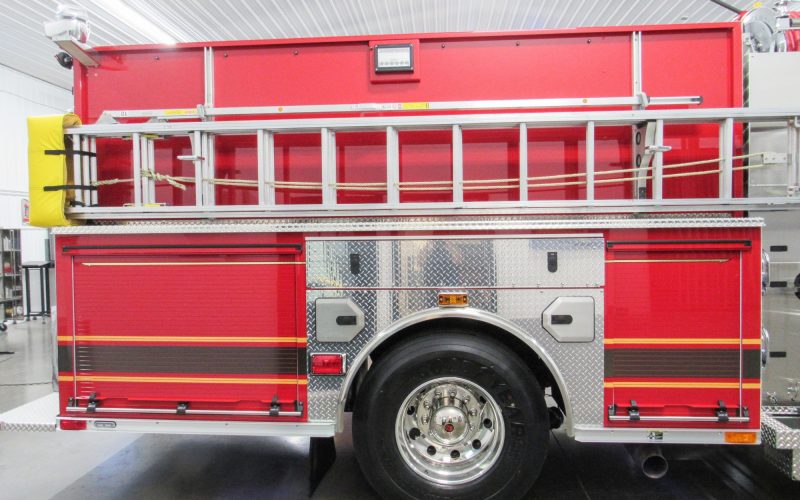

• Alco-Lite ladder package: PEL-24 24’ 2 Section & PRL-14 14’ Roof & 10’ Folding
• Body: S1 – Aluminum 31/53 RGT Low Ladder Bracket

ADDITIONAL EQUIPMENT:

• 18” Formed Steel Bumper
• Federal Q2B Siren, Grille Mount
• Camera System: FRC, Inview Trueview, Single Camera
• Whelen 12V LED Brow Light
• Whelen 12V LED Scene Light
• Whelen Freedom IV 72” LED Lightbar
• Whelen 600 LED Taillights
• Whelen LED, TAL65 36” Traffic Advisor
