Delivery Date:
10/18/2019
Department Name:
Hamburg Fire Department
Department City / State:
Hamburg, NJ

Sutphen Corporation – HS #6430

Dealer – Signal 1 Fire Equipment

WHEEL BASE: 170”

TRAVEL HEIGHT: 9’ – 6”

TRAVEL LENGTH: 27’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 24,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS3000

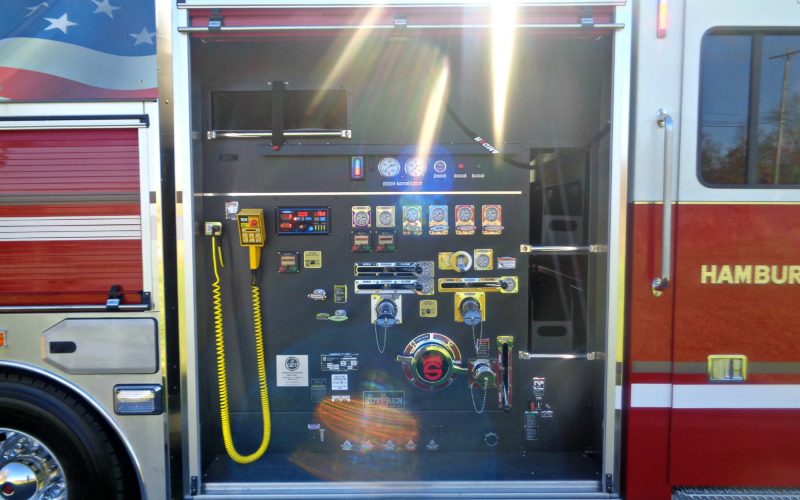

PUMP:                 Hale

  • QMAX-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Right, (1) 4” Right, (1) 2 ½” Left, (1) 2 ½” Pipe to Right Rear, (1) 2 ½” Pipe to Left Rear, (1) 3” Deck Gun
  • Speedlays: (2) 1 ½” with Poly Lift-Out Trays
  • Monitor: TFT Hurricane, Manual 1250 GPM
  • 500 -Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Doors
  • Over 74 cu. ft. Total Compartment Space
  • Duo-Safety Ladders (26’ 3-Section & 10’ Roof & 10’ Folding Attic Ladder, 585A)
  • Ladder Chute

OPTIONAL EQUIPMENT:

  • Federal Q2B Siren, Grille Mount
  • 6” Polished Stainless Steel Bumper
  • Pike Pole Storage Tubes (3)
  • HiViz FireTech 72” Brow Light
  • Whelen FN72QLED Lightbar
  • Whelen L31H Beacons
  • Wilburt 7.5 FT Light Tower 12V FRC Evolution Lights (4)
