Delivery Date:
03/15/2021
Department Name:
Hallsville Fire Department
Department City / State:
Hallsville, TX
Truck Type:
Sutphen Corporation – HS #6778
Dealer – Texas Fire Apparatus
WHEELBASE: 205”
TRAVEL HEIGHT: 9’ – 11”
TRAVEL LENGTH: 33’ – 7”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” extended cab with 10” raised roof
- Four-Door, Six-Person Cab
- 10” Double Rails, Single Axle (50K PSI)
- Front Suspension 20,000 lbs.
- Rear suspension 27,000lbs.
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS3000

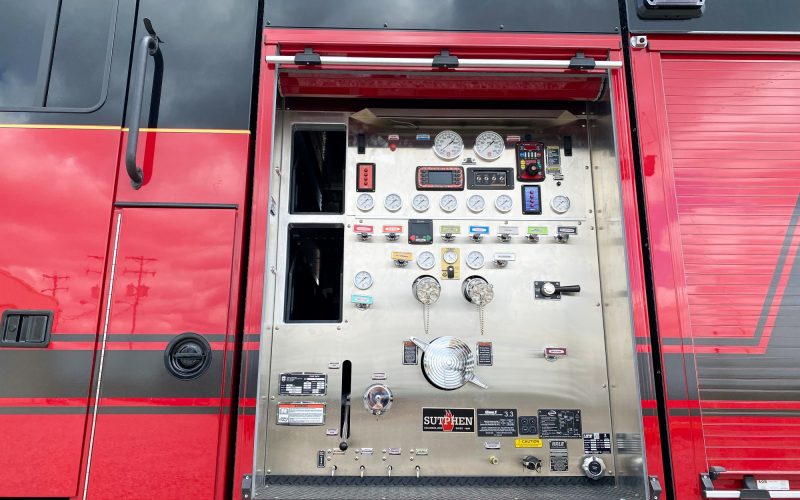

PUMP: Hale
- XS QMAX-2,000 GPM Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front/ Right of Main Hosebed, 2 ½” Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 2” with 1 ½” swivels
- 1000-Gallon Water Tank
- 30 Gallon Foam Tank
- Foam System: Hale SmartFoam 5.0

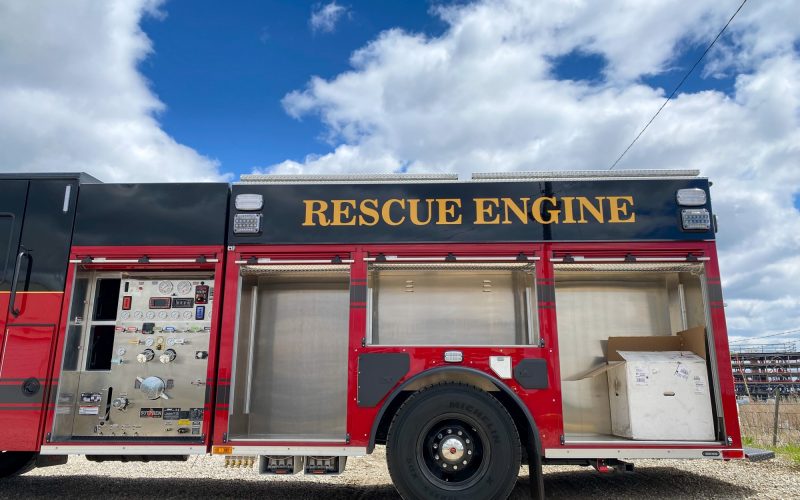

BODY: Sutphen
- 3/16 Extruded Aluminum
- ROM Roll-Up Compartment Doors
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Over 290 cu. ft. Total Compartment Space
- Body: G9 – Alum 40/51 Ladders Through the Tank
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel Bumper, Painted
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade, Backeye 360
- Intercom SystemL FireCom 5100D, Single Radio
- Whelen Freedom IV 81” LED Light Bar
- Firetech 3-Piece 72” LED Brow Light
- Firetech Guardian Elite Scene
- FT-MB-2.18 Light in Bumper
