Delivery Date:
02/29/2020
Department Name:

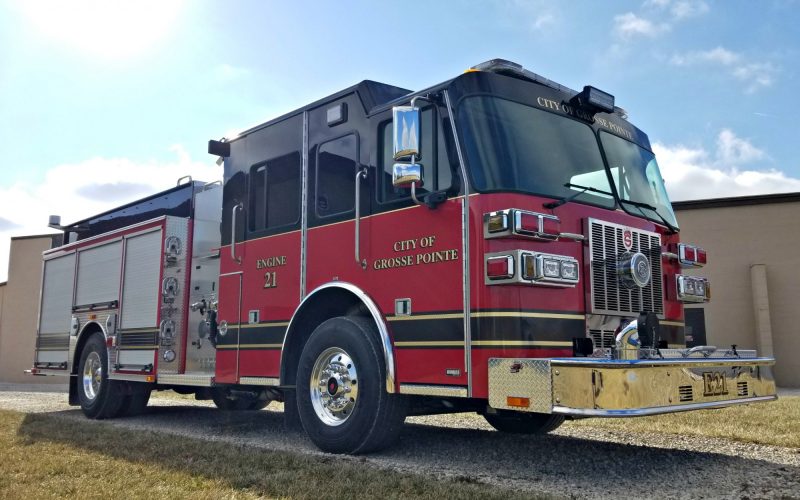

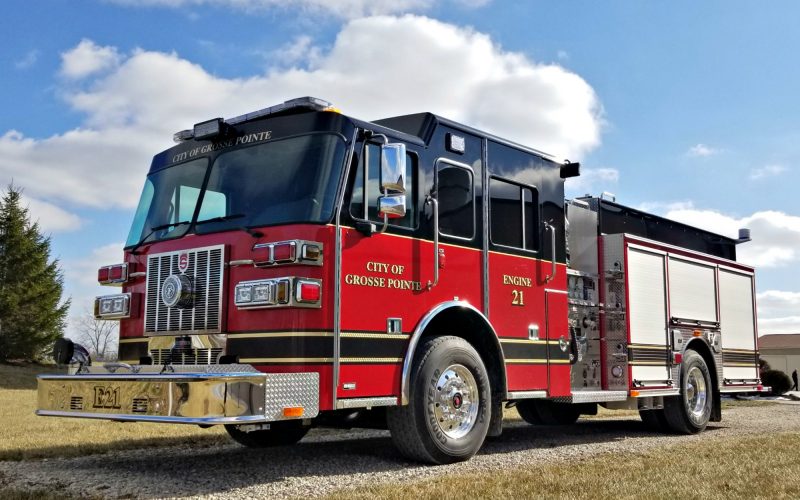

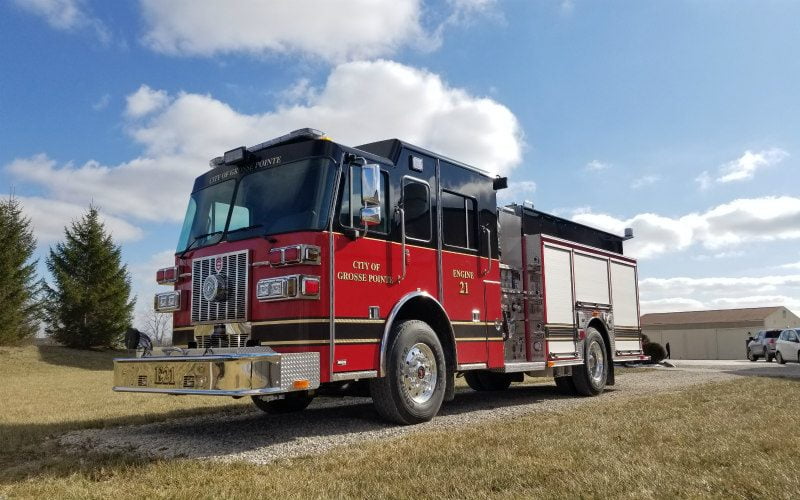

Grosse Pointe Fire Department
Department City / State:
Grosse Pointe, MI
Truck Type:
WHEEL BASE: 196”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 33’
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” raised roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 270 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” left rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (1) 2 ½” w/ Swivel, (2) 1 ½” w/ Swivel
- 750-Gallon Water Tank
- 20-Gallon Foam Tank
- Hale Smartfoam
BODY: Sutphen
- ROM Roll-Up Compartment Doors
- 222 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chutes
- Body: S2 – Alum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel bumper
- Federal Q2B Siren, Grille Mount
- Camera System
- FRC Spectra 12V LED Brow Light
- Pursuit LED Lightbar
- FRC Spectra 900 12V LED Scene Lights
