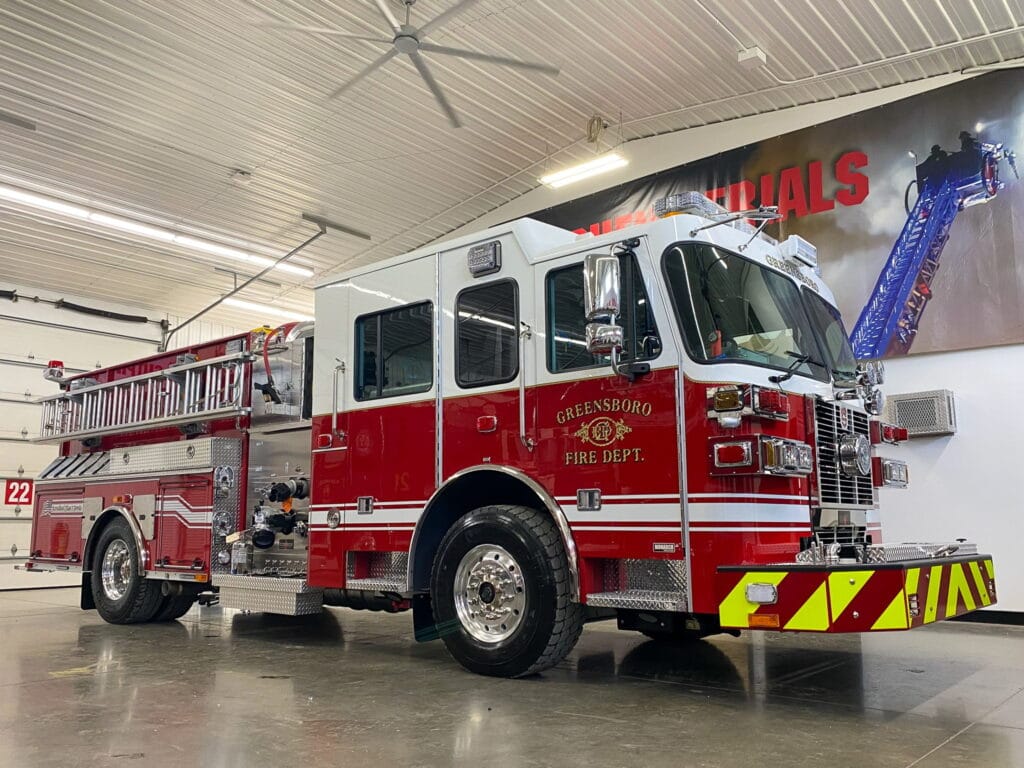

Delivery Date:
05/11/2022
Department Name:
Greensboro Fire Department
Department City / State:
Greensboro, NC
Truck Type:
Sutphen Corporation – HS #6963
Dealer – Stevens Fire Equipment
WHEELBASE: 193 – 0 ½”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 32’ – 2 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins X 12, 455HP
- Alternator: Delco-Remy 430 AMP
- Transmission: Allison Gen 5, EVS4500 w/ Retarder
PUMP: Hale
- QMAX-1500 GPM Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 1 ½” & (1) 2 ½” w/ Swivels
- 510-Gallon Water Tank
- 10-Gallon Class A Foam Tank
- 20-Gallon Class B Foam Tank
- Foam System: Williams ATP 500 – Class A & B Foam
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-up Compartment Doors, Satin Finish
- Over 150 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
- Body: PA-08 Res 35/48 Mid Right (Electric Ladder Rack/Bracket)
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel, Painted Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Safety Vision SV-CLCD0-70
- Intercom System: Wired, Sigtronic, Single Radio, 6 Position
- Whelen Freedom 81” Rota-Beam Lightbar w/ Opticom
- Whelen TAL65 Traffic Advisor
- FR Spectra 12V Brow
- FireTech Guardian Elite 12V Scene
- FireTech 12V Work Lights
