Delivery Date:
07/19/2023
Department Name:

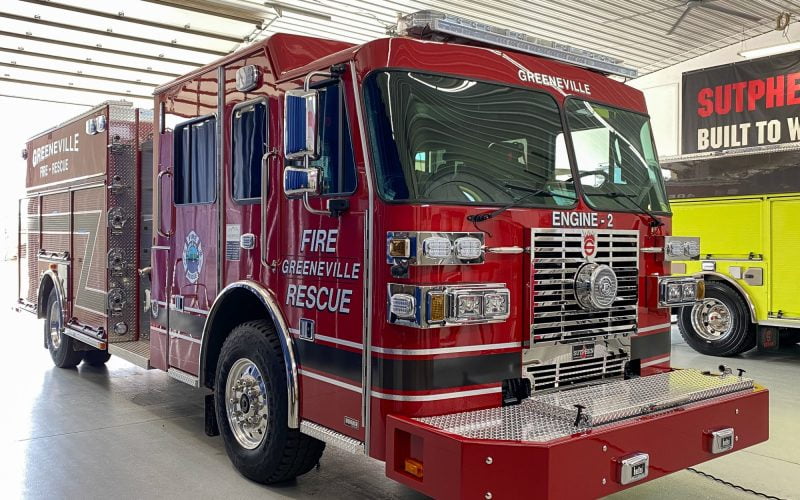

Greeneville Fire Department
Department City / State:
Greeneville, TN
Truck Type:
Dealer – Southeast Fire
WHEELBASE: 209 ½”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 34′ – 2”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 20,000 lbs.
- Rear Axle and Suspension: 27,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (2) 1 ½” & (1) 2 ½” w/ Swivels
- 1,000-Gallon Water Tank
- 30-Gallon Foam Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- Over 435 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: S8 – Alum 56/53 Ladders Through Tank & Double Hatch
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: Brigade, Two Camera (Wired)
- Whelen Freedom IV 72” LED Light Bar
- Whelen PFH2 12V LED Brow Light
- Whelen M9 12V Scene Lights
