Delivery Date:
05/15/2021
Department Name:
Greene County Fire Department
Department City / State:
Greensboro, GA
Truck Type:
Sutphen Corporation – HS #6819
Dealer – Williams Fire Apparatus
WHEELBASE: 185”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 31’ – 7”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 19,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville 420 AMP
- Transmission: Allison Gen 5, EVS 3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (2) 2”
- 1000 Gallon Water Tank
- 30 gallon Foam Tank

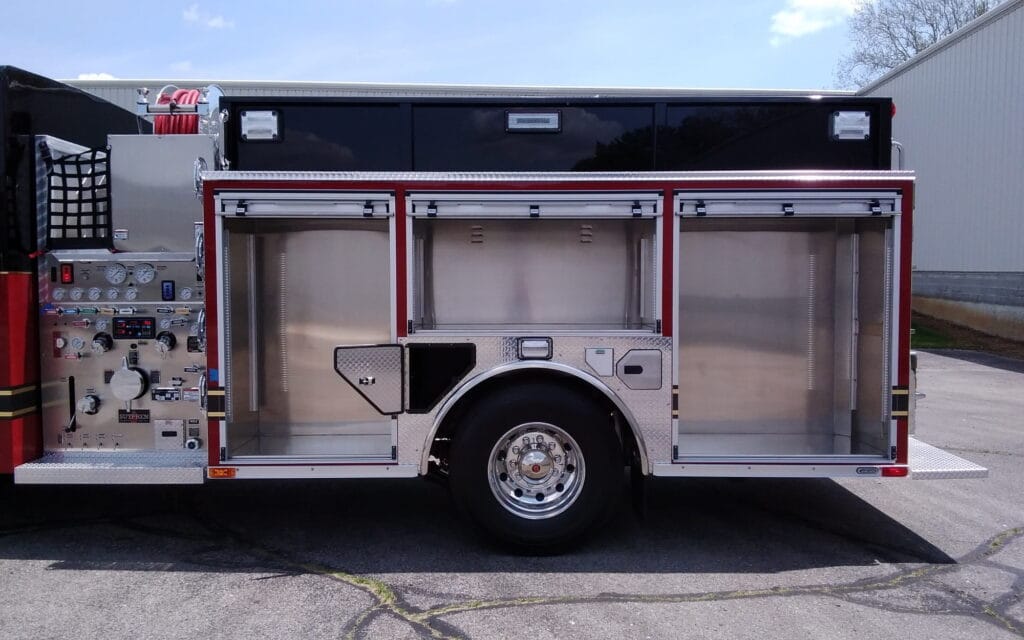

BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-up compartment doors, Satin Finish
- Over 222 cu. ft. Total Compartment Space
- Alco-Lite PEL-24 24’ 2 Sec & PRL-14 14’ Roof & 10’ Folding
- Ladder Chute w/ Backboard Storage
- Body: G2 – Aluminum 40/51 Ladder Chute
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless-Steel Bumper
- Federal Q2B Siren, Grille Mount
- Whelen PFH2 LED Brow Light
- Whelen Freedom LED Lightbar
- (2) Triple Air Bottle Compartments
- Camera: FRC Inview Trueview Single Camera
