Delivery Date:
02/19/2020
Department Name:
Greencastle Fire Department
Department City / State:
Greencastle, IN
Truck Type:
WHEEL BASE: 215”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 34’ – 1”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” raised roof
- Four-Door, five-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlay: (2) 2” w/ 1 ½” Swivel
- 1,000-Gallon Water Tank

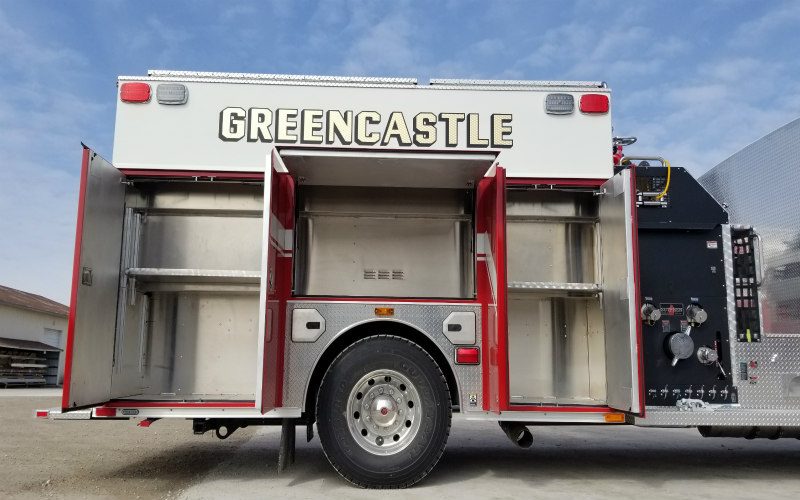

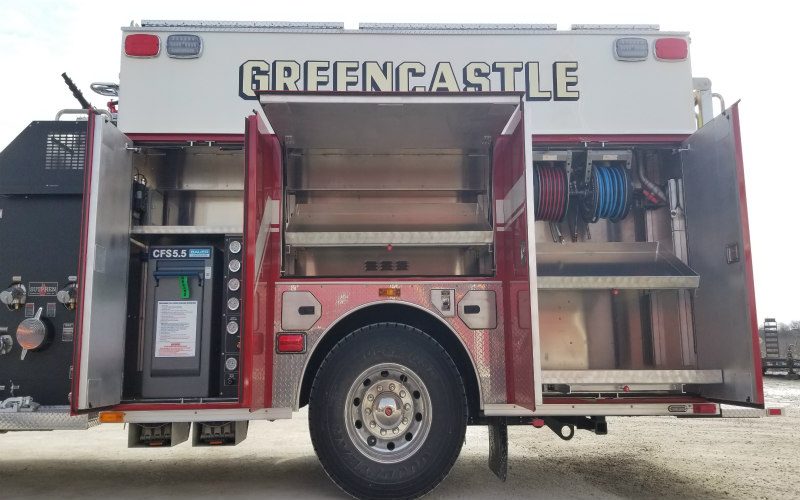

BODY: Sutphen
- ROM Roll-Up Compartment Doors
- 5 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chutes
- Body: S6 – Alum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel bumper
- Federal Q2B Siren, Grille Mount
- Camera System: Inview Trueview
- Whelen Freedom LED Lightbar
Whelen M9 Scene Lights
