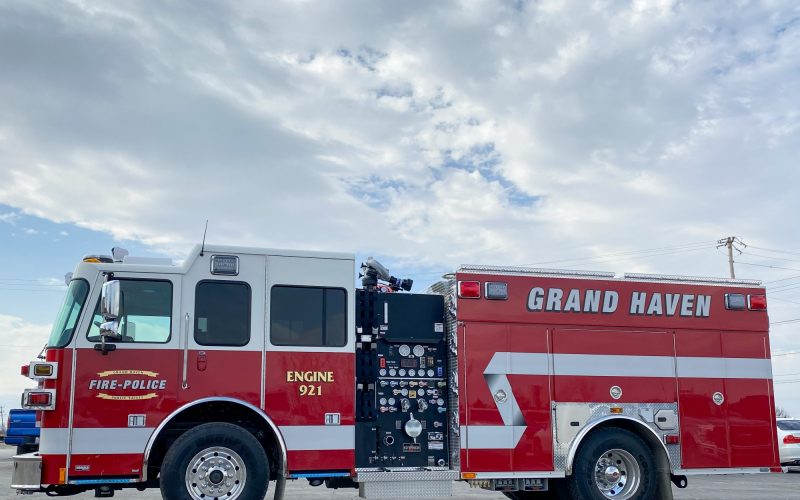

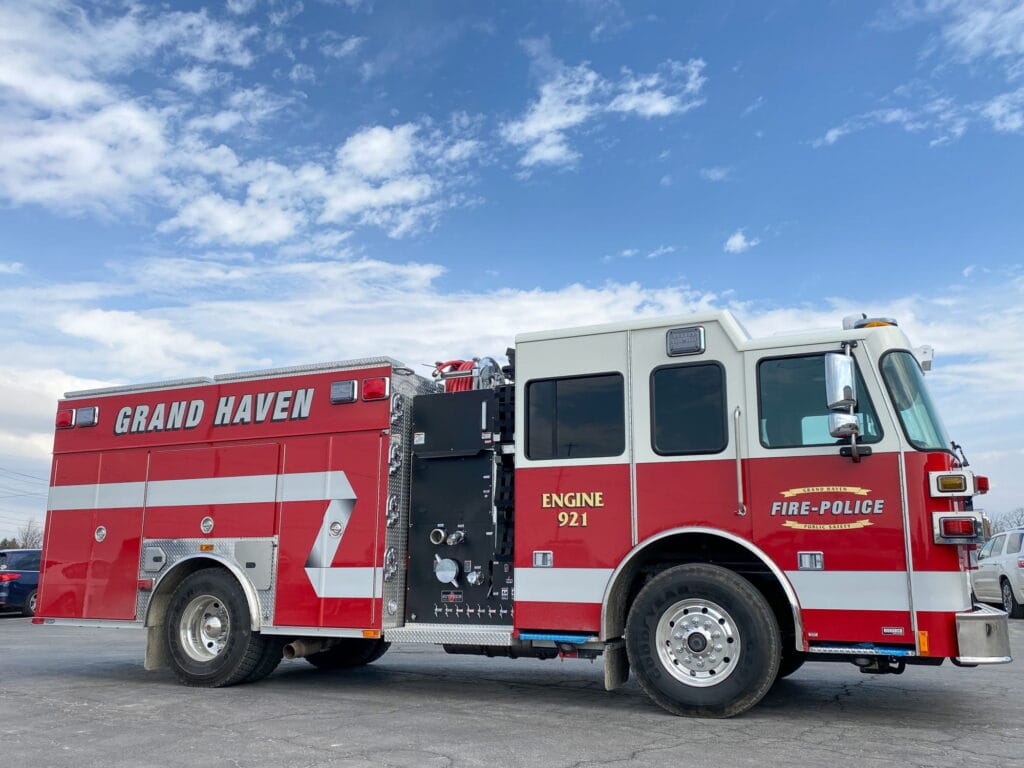

Custom Pumper – Grand Haven Public Safety, MI

Sutphen Corporation – HS #6771

Dealer – Apollo Fire Equipment

WHEELBASE: 179”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 29’ – 11”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” extended cab with 10” raised roof

• Four-Door, Four-Person Cab
• 10” Double Rails, Single Axle (50K PSI)
• Front Suspension 18,000 lbs.
• Rear Suspension 24,000lbs.
• Engine: Cummins L 9, 450 HP
• Alternator: C.E. Niehoff 360 AMP
• Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

• XS QMAX 1500-GPM, Single Stage Pump
• Discharges: (2) 2 ½” Left, (1) 3” Right w/ 4” outlet, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½ Front/Right of Main Hosebed, (1) 2 ½” Right Rear, (1) 3” Deck Gun
• Crosslays: (1) 2 ½”
• Speedlays: (2) 2” w/ Swivels and Poly Lift-Out Trays
• 750-Gallon Water Tank
• 20-Gallon Foam Tank
• Foam System, Hale SmartFoam 2.1A

BODY:                  Sutphen

• 3/16” Extruded Aluminum
• Aluminum Hinged Compartment Doors

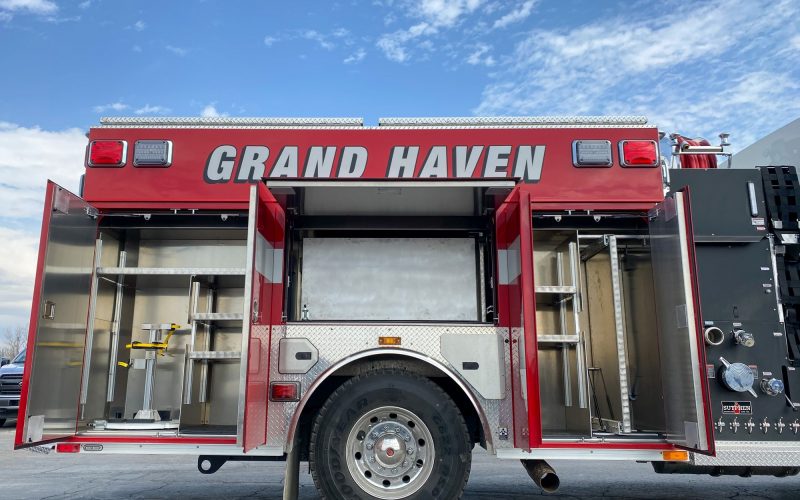

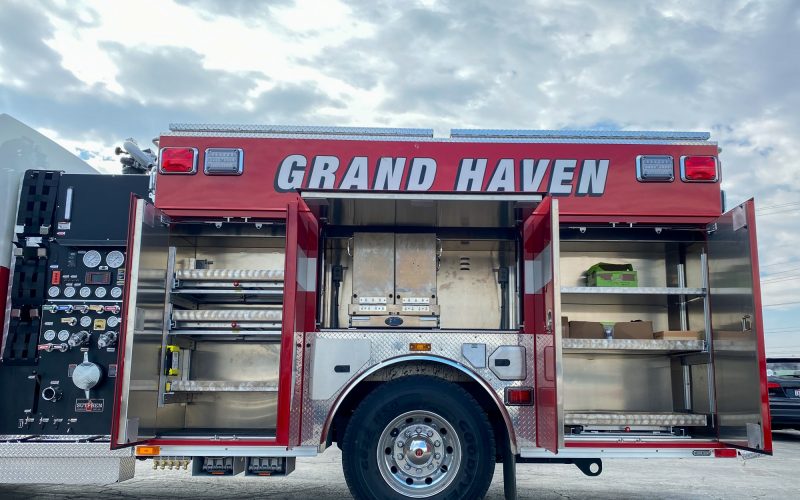

• Over 245 cu. ft. Total Compartment Space
• Alco-Lite Ladder Package: 24’ 2-Sec & 14’ Roof & 10’ Folding
• Body: G9 – Alum 40/51 Ladders Thru Tank

ADDITIONAL EQUIPMENT:

• 6” Polished Stainless-Steel Bumper
• Federal Q2B Siren, Grille Mount
• Camera System: Brigade, Backeye 360
• Whelen PFH2 LED Brow Light
• Whelen Justice 62” LED Lightbar
• Whelen 900 Scene Light
• Go-Light 2020
