Delivery Date:
05/11/2019
Department Name:
Glen Rock Hose and Ladder Company
Department City / State:
Glen Rock, PA

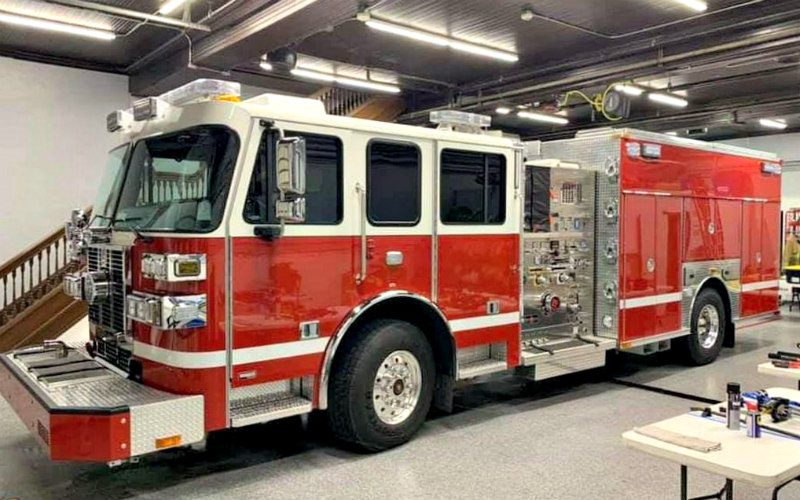

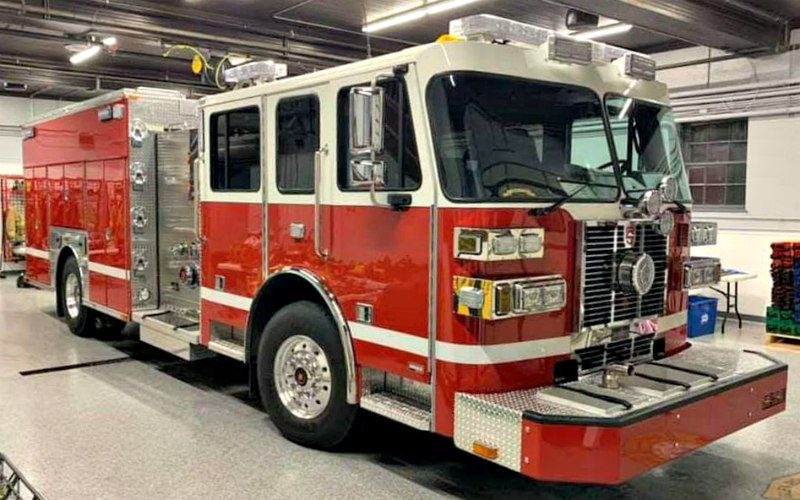

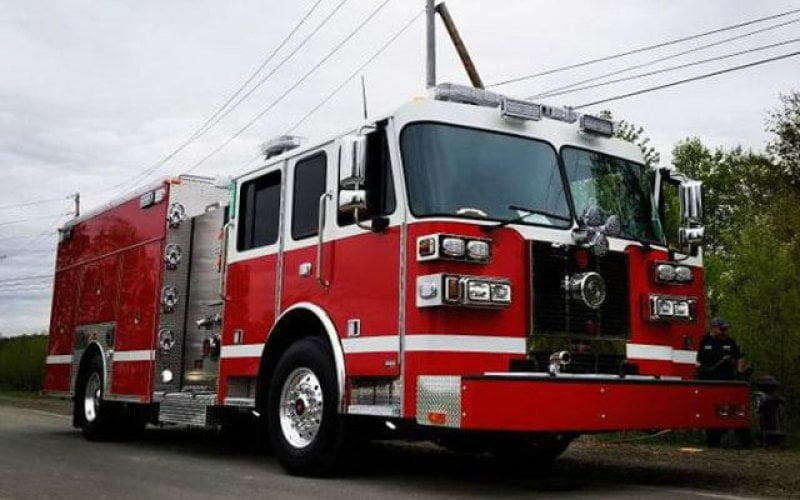

Sutphen Corporation – HS #6301

Dealer – Lawver Fire Apparatus

WHEEL BASE: 213”

TRAVEL HEIGHT: 9’ – 9”

TRAVEL LENGTH: 33’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with Flat Roof

  • Four-Door, Six-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2” Front/Left Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • TFT Crossfire with TFT Extend-A-Gun
  • Crosslay: (3) 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Hinged Compartment Doors
  • Over 445 cu. ft. Total Compartment Space
  • Alco-Lite (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel Bumper Extension
  • Camera System, FRC, Inview Trueview, Single Camera
  • Whelen 72” Freedom Lightbar with Opticom
  • Whelen M6 Series Warning Lights
  • Whelen 22” Freedom Lightbars (2)
  • FR Spectra Brow Lights 12V
  • FR Spectra Tele Lights
  • 15KW Smart Power Generator
  • Hannay Electric Cord Reel, 150’ (1)
  • Federal Q2B Signal, Flush Grille Mount
  • SCBA Bottle Storage (5)
