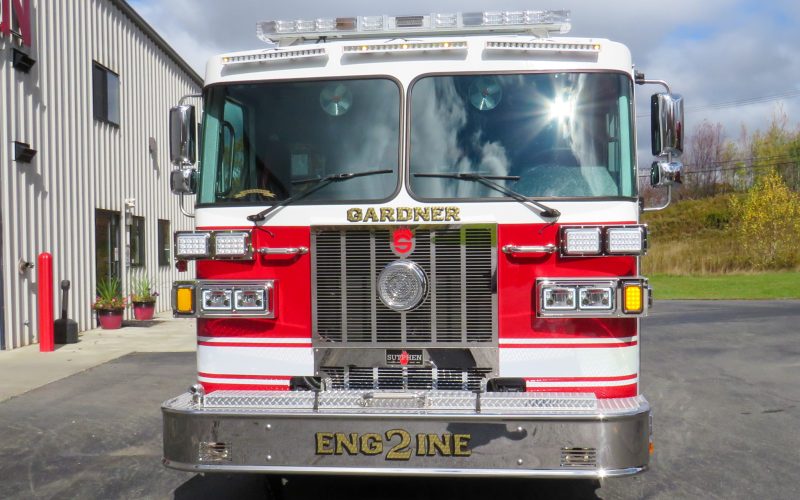

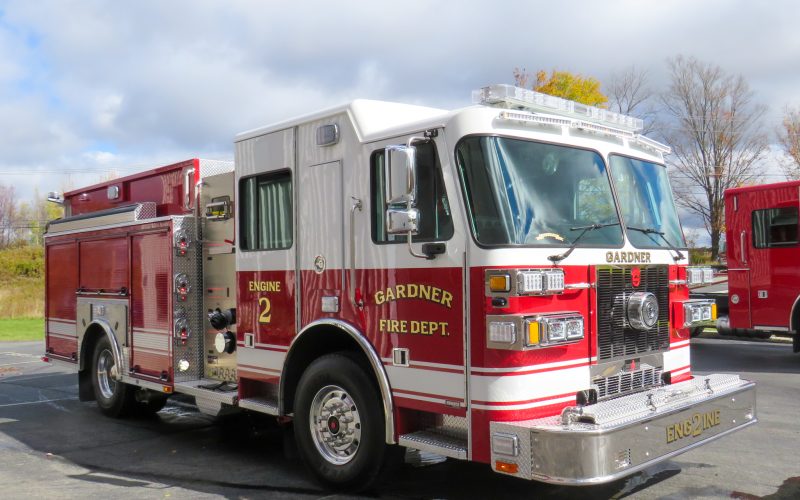

Delivery Date:
10/16/2024
Department Name:
Gardner Fire Department
Department City / State:
Gardner, MA
Truck Type:
Dealer: MES-Shipman’s Fire
WHEELBASE: 180”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 30’ – 9 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10” Raised Roof
- Four-Door, Four- Person Cab
- Front Axle and Suspension 18,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9 450HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (1) 2” w/ 1 ½” Swivel and (1) 2 ½” w/ 2 ½” swivel
- 1000-Gallon Water Tank
- 30-Gallon Foam Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll Up Compartment Doors
- Duo-Safety 900A 24’2-SEC & 775A 14’ Roof & 10’ Folding
- Body: S2 – Aluminum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview (2)
- Whelen Freedom IV 72” LED Light Bar
- Opticom Mounted in Lightbar
- FireTech 3-Piece 72” LED Brow Light
- Whelen M9 Scene Lights
- Whelen L31 LED Beacons
