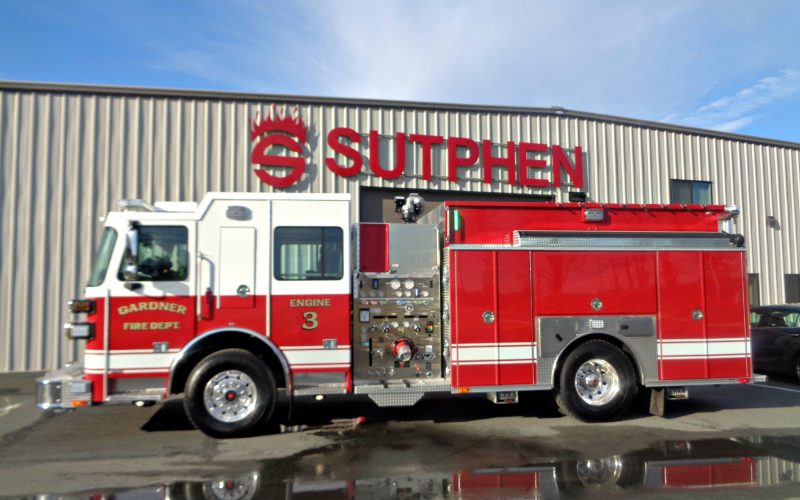

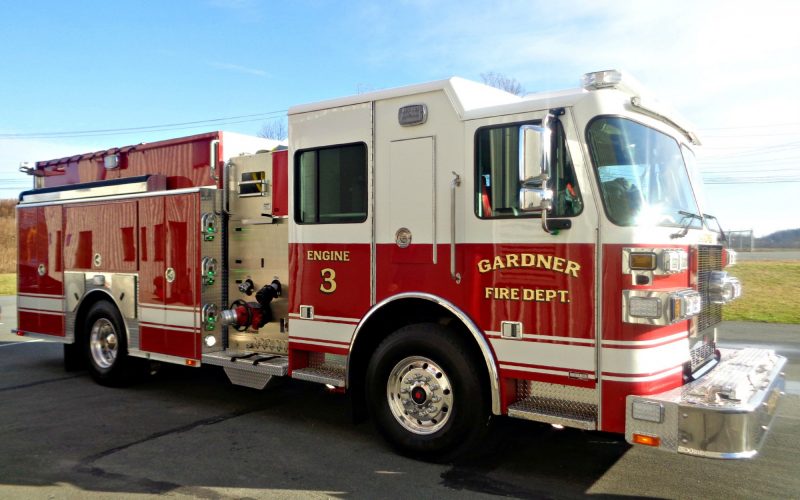

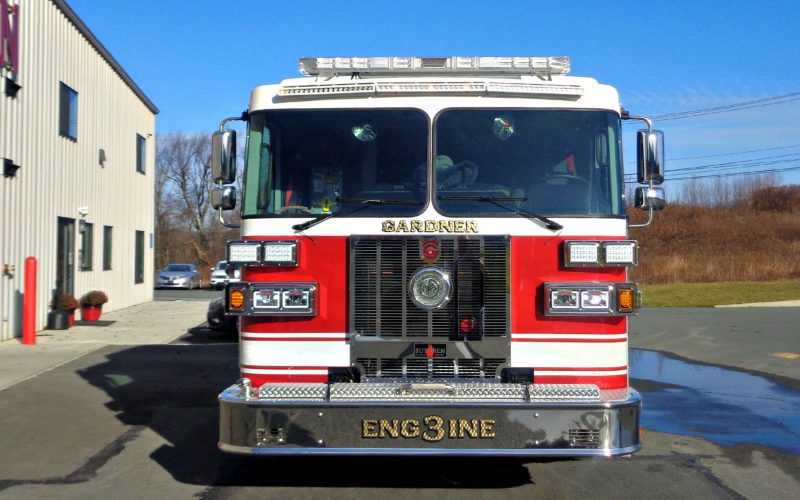

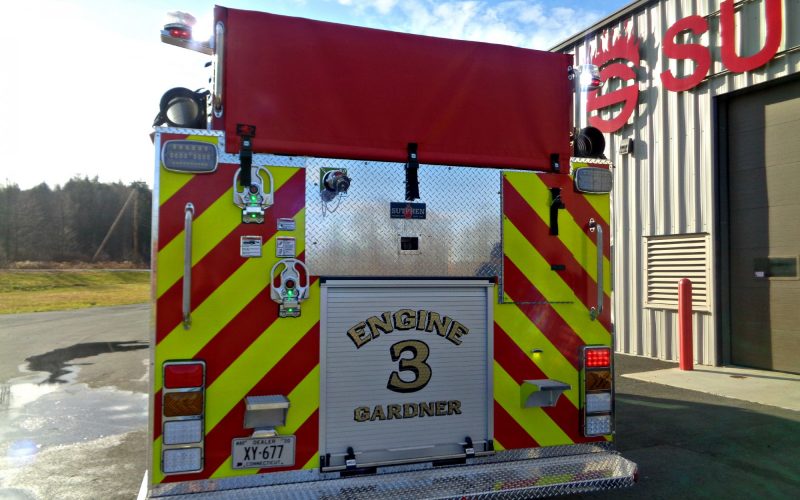

Custom Pumper – Gardner Fire Department, MA

Sutphen Corporation – HS #6485

Dealer – Five Star Fire

WHEEL BASE: 180”

TRAVEL HEIGHT: 9’ – 10”

TRAVEL LENGTH: 30’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10” Raised Roof

• Four-Door, Four-Person Cab
• 10” Double Domex Frame Rails (50K PSI)
• Front Axle and Suspension 18,000 lbs
• Rear Axle and Suspension 27,000 lbs
• Engine: Cummins L 9, 450 HP
• Alternator: Leece Neville, 320 AMP
• Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

• QMAX-1500 GPM, Single Stage Pump
• Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear Hosebed, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
• Crosslay: (1) 2” w/ 1 ½” Swivel & (1) 2 ½” – 2 ½” Discharge Single Stacked Front 1 ½”, Rear 2 ½”
• TFT Hurricane Electric Deck Gun
• 1,000-Gallon Water Tank
• 30-Gallon Foam Tank
• Akron Foam Supply System

BODY:                  Sutphen

• 3/16” Extruded Aluminum
• Amdor Roll-Up Compartment Doors
• 239 cu. ft. Total Compartment Space
• Duo-Safety Ladder Package
• Ladder Chute w/ Backbaord Storage
• Body: S2 – Alum 43/53 Ladder Chute

ADDITIONAL EQUIPMENT:

• 18” Polished Stainless Steel, Bumper Extension
• Federal Q2B Siren, Grille Mount
• FRC, Inview Trueview, Camera System
• Pike Pole Storage Tubes (3)
• Whelen Freedom IV 72” with Opticom
• Whelen M9 Scene Lights (6)
• Fire Tech 3-Piece Brow Light
