Delivery Date:
03/04/2020
Department Name:
Ocean City Wright FIre District
Department City / State:
Ft. Walton Beach, FL
Truck Type:
WHEEL BASE: 185”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 31’ – 7”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” raised roof
- Four-Door, five-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins X 12 500HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- XS QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” left rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (1) 2 ½” w/ Swivel & Poly life-out trays
- Speedlays: (2) 2” w/ Swivel & Poly life-out trays
- 750-Gallon Water Tank
- (1) 20-Gallon Class A Foam Tank, (1) 30-Gallon Class B Foam Tank
- Foam Supply System: Elkhart w/ Flush
BODY: Sutphen
- ROM Roll-Up Compartment Doors
- 3 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chutes
- Body: S2 – Alum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:

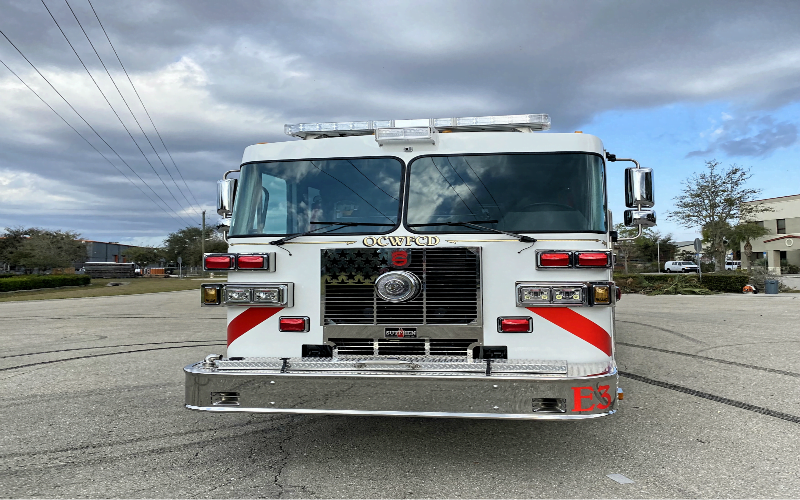

- 18” Polished Stainless Steel bumper
- Federal Q2B Siren, Grille Mount
- Camera System
- Whelen PFP2 12V LED Brow Light
- Whelen Freedom LED Lightbar
- Whelen M9V2 Scene Lights
