Delivery Date:
09/16/2021
Department Name:

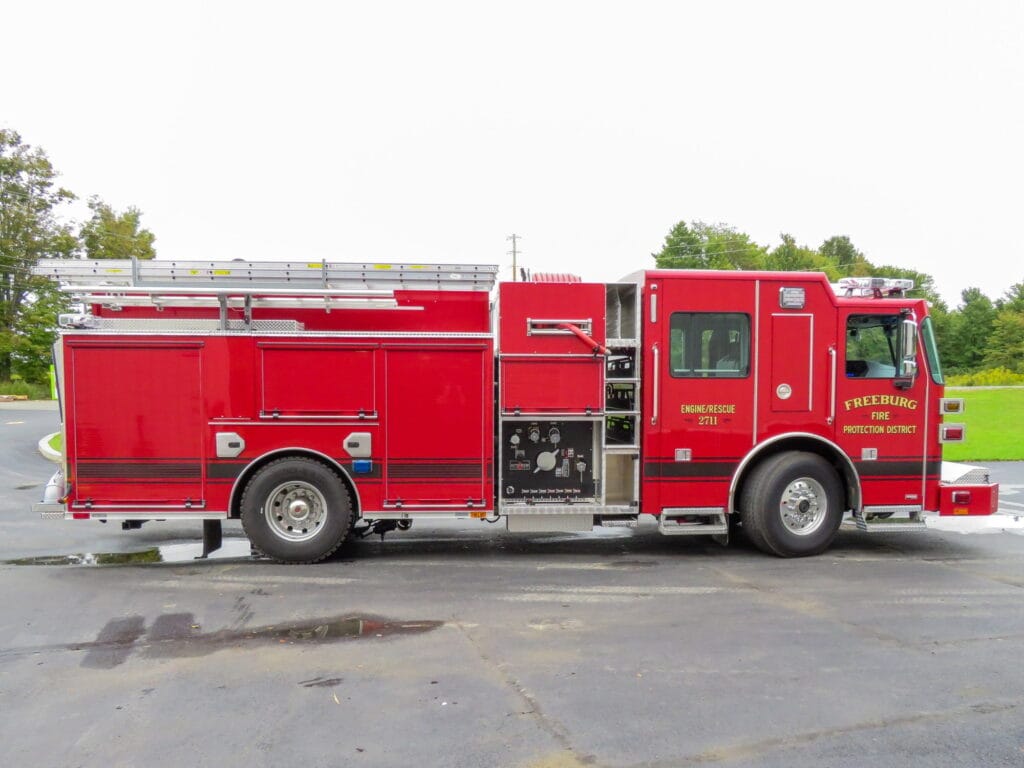

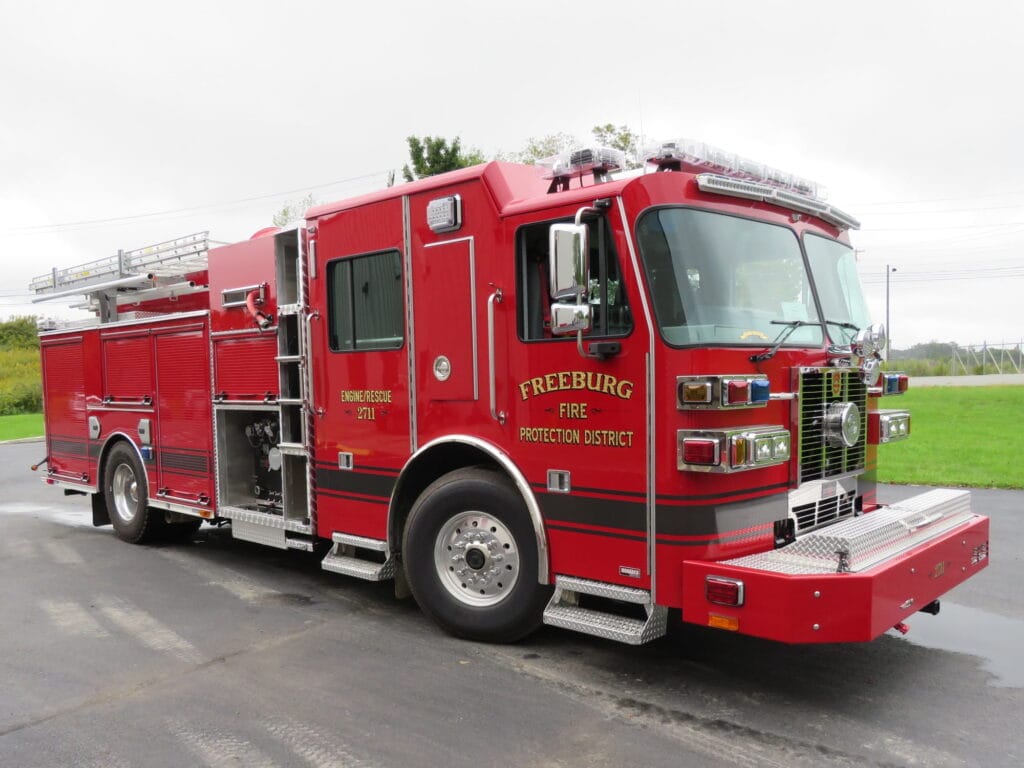

Freeburg Fire Protection District
Department City / State:
Freeburg, IL

Sutphen Corporation – HS #6921

Dealer – Cashion Fire Equipment

WHEELBASE: 196”

TRAVEL HEIGHT: 9’ – 7”

TRAVEL LENGTH: 32′ – 5 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62”cab with 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 31,000 lbs.
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                SAM IDEX System

  • QMAX-XS-1500 GPM, Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 3” Deck Gun
  • Crosslay: (2) 2 ½”
  • Speedlays: (3) 1 ½” w/ Liftout Trays
  • 1,000-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: Hale SmartFoam 5.0

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • 280 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
  • Body: PA-13 Res 43/53, Hydraulic Ladder Rack

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade 360
  • Intercom: Wired/Wireless David Clark
  • Hannay Electric Cord Reel, 200’ (1)
  • Ziamatic Hydraulic Ladder Rack
  • Federal Signal 73” Navigator Lightbar
  • Federal Signal Mini Lightbar
  • Federal Signal Traffic Advisor
  • FireTech 3-Piece Brow Light
  • FireTech Guardian Elite Scene Lights
  • Roto-Ray Warning Light
