Delivery Date:
02/17/2021
Department Name:
Franklin Township Fire & EMS
Department City / State:
Felicity, Ohio

Sutphen Corporation – HS #6742

Dealer – Heritage Fire Equipment

WHEELBASE: 185”

TRAVEL HEIGHT: 10’ – 3”

TRAVEL LENGTH: 31’-5”

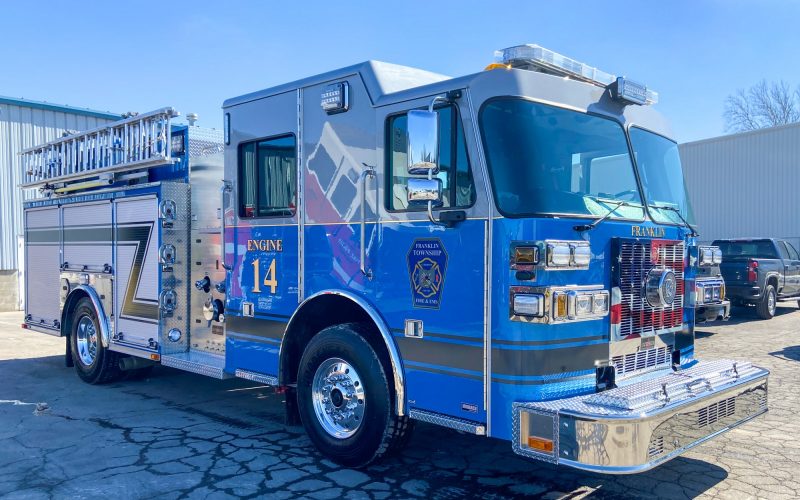

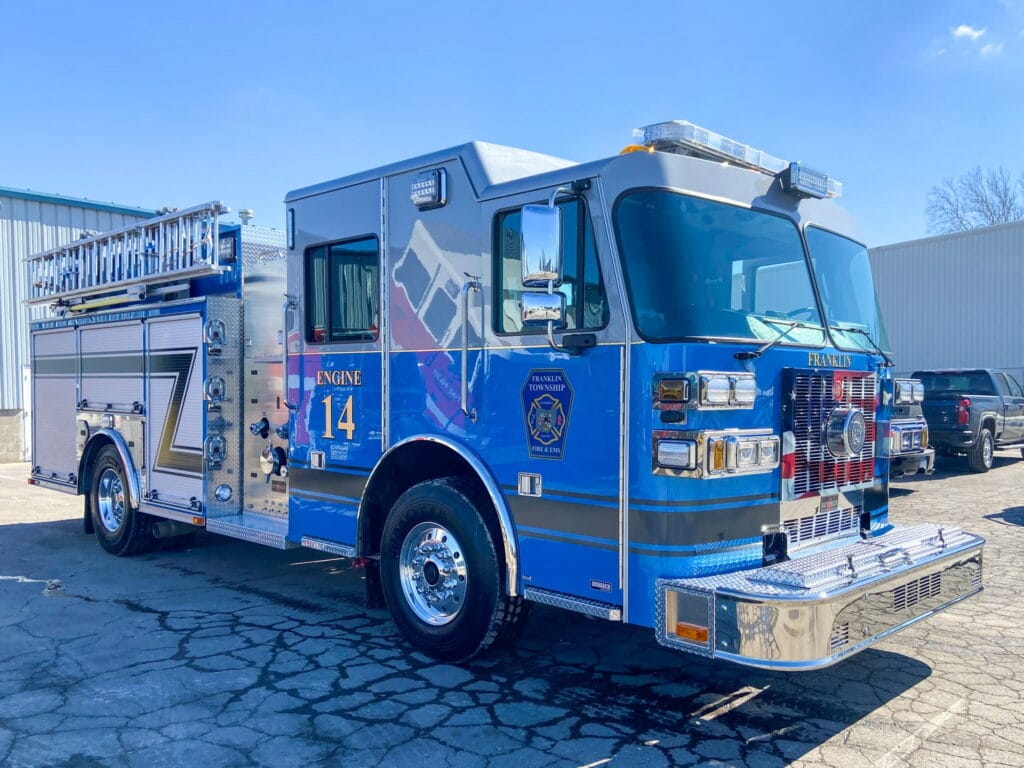

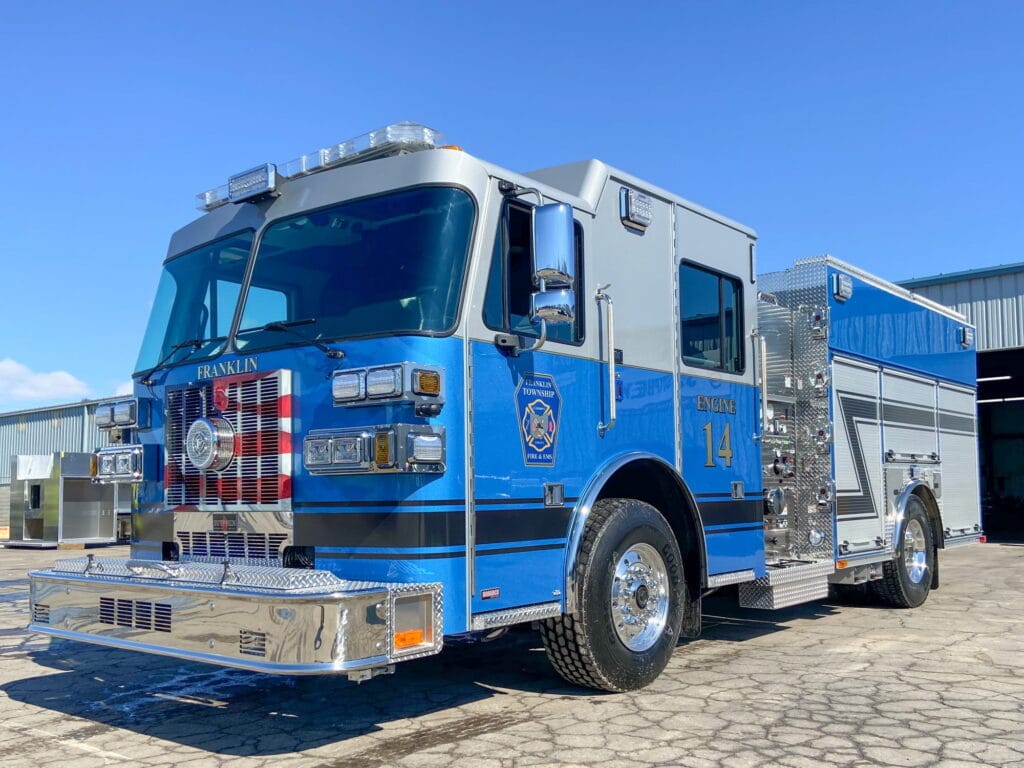

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” extended cab with 10” raised roof

  • Four-Door, Four-Person Cab
  • 10” Double Rails, Single Axle (50K PSI)
  • Front Suspension 20,000 lbs.
  • Rear Suspension 31,000lbs.
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1,500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 1 ½ Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 2” w/ 1 ½” Swivel
  • 1500-Gallon Water Tank
  • 20-Gallon Foam Tank
  • Foam Supply System: Elkhart

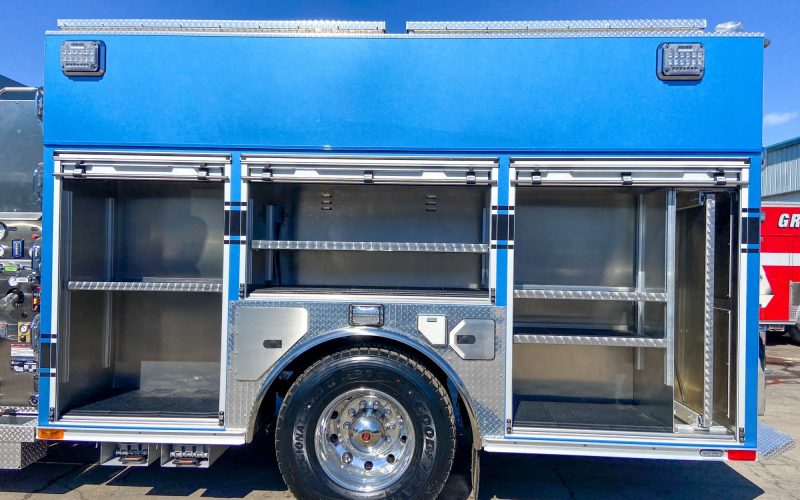

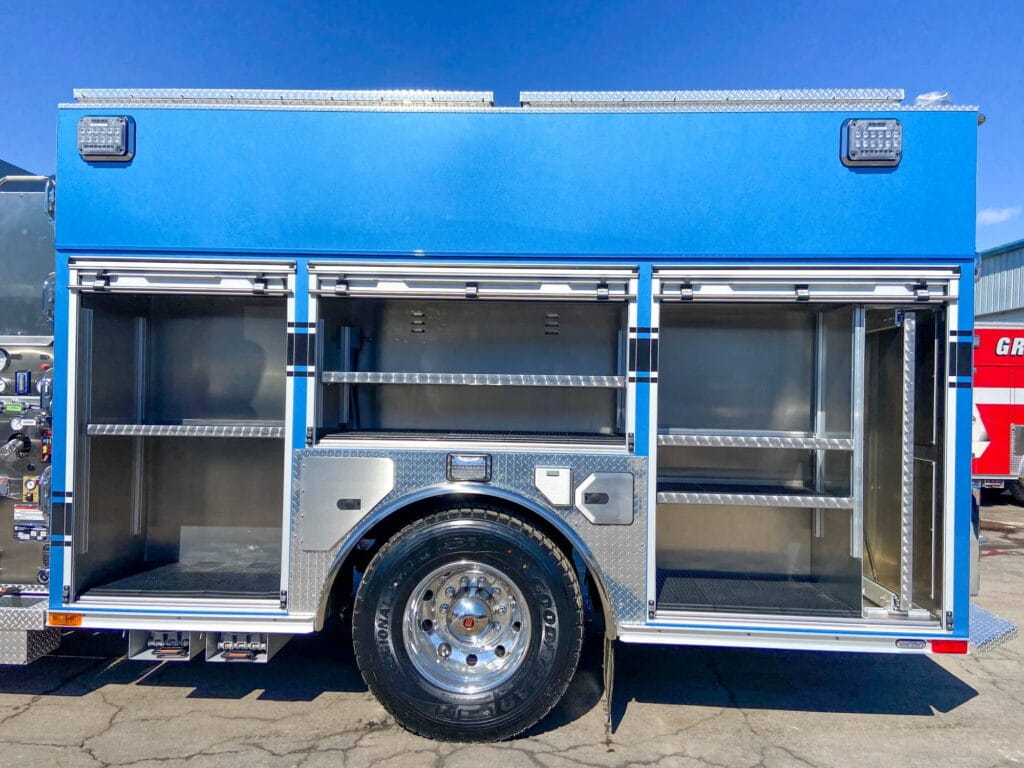

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • AMDOR Roll-Up Compartment Doors
  • 294 cu. ft. Total Compartment Space

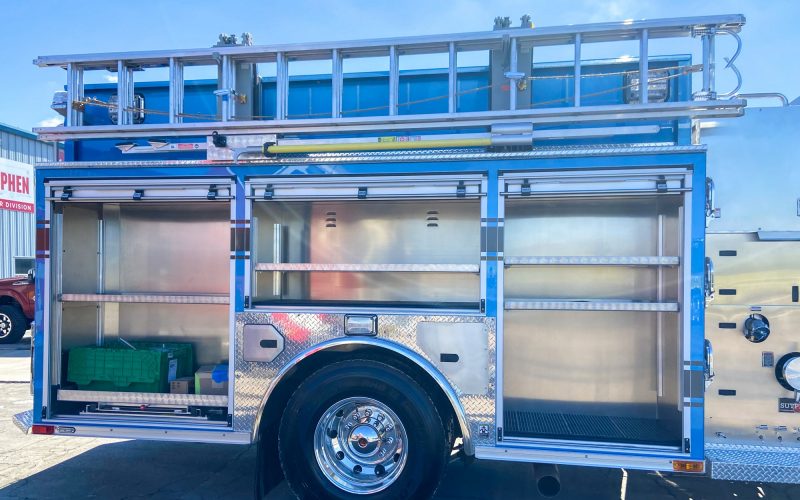

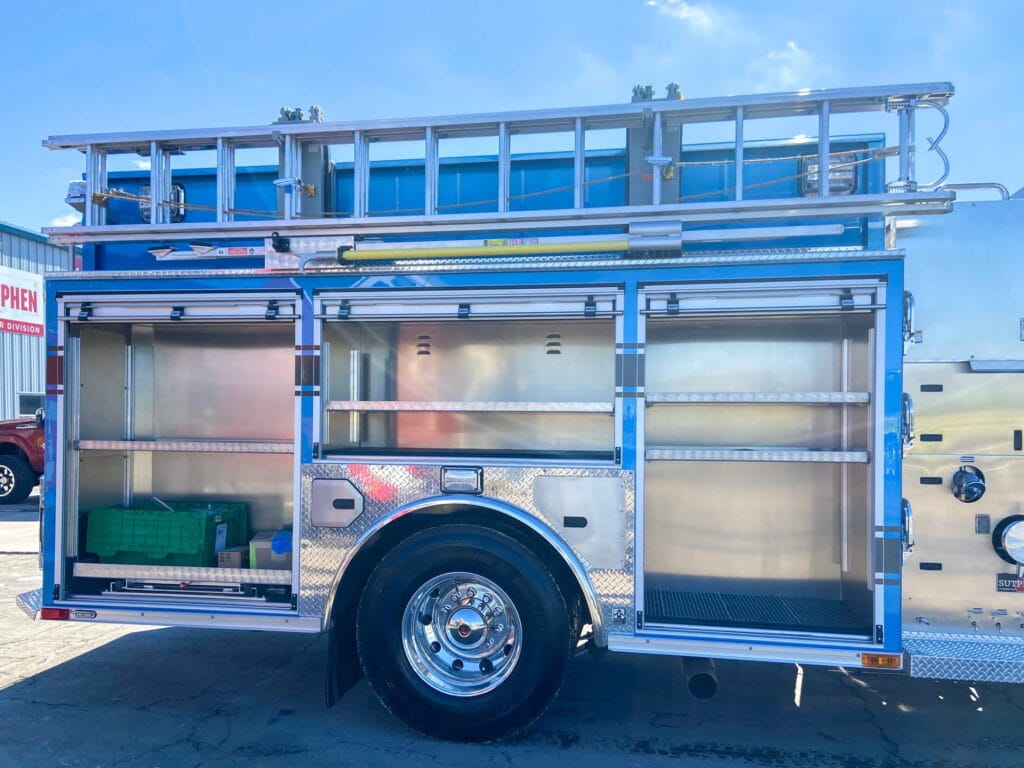

  • Special Ladder Package: Duo Safety Ground Ladders (24’ 2-Section & 14’ Roof & 10’ Folding)
  • Body: G-9 Alum 40/51 Electric Ladder Rack

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless-Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Ziamatic Quic-Lift Electric Ladder Rack
  • Whelen Freedom LED Light Bar
  • FRC Spectra Brow Light
  • FireTech Guardian Scene
