Delivery Date:
10/12/2018
Department Name:

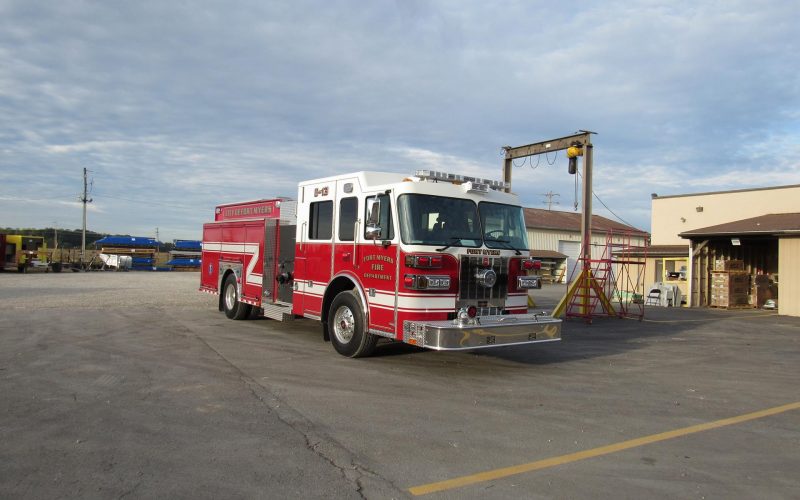

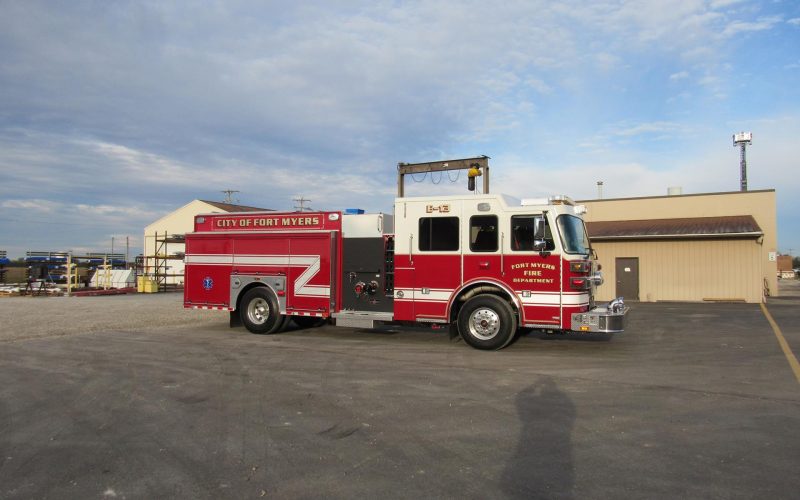

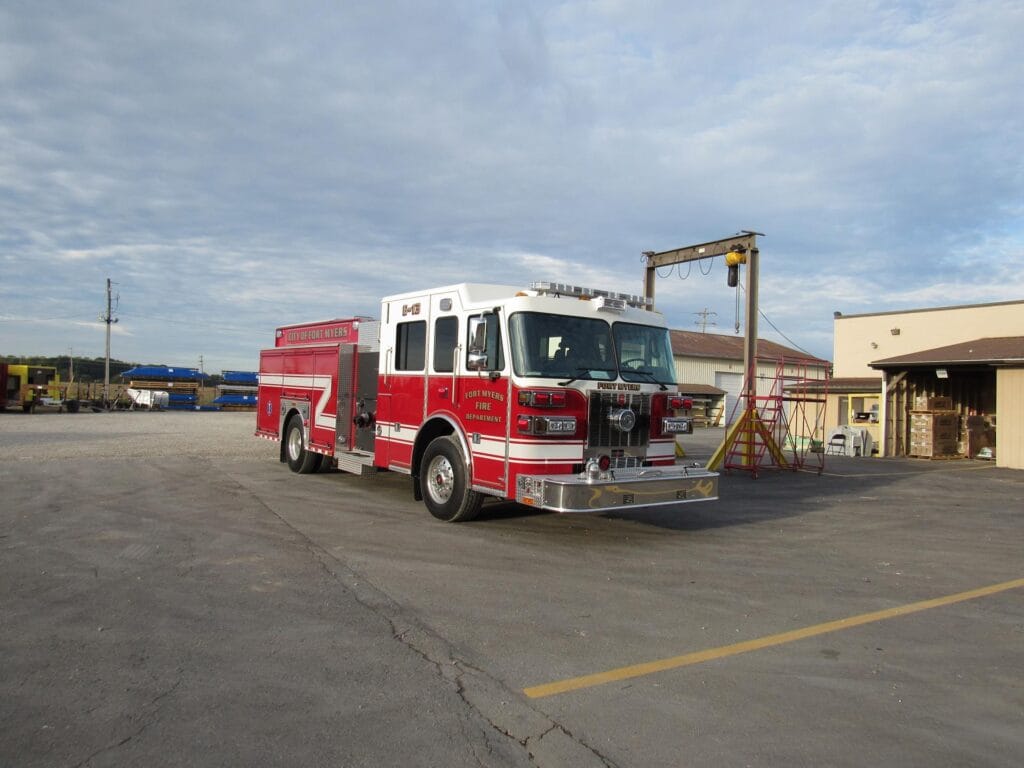

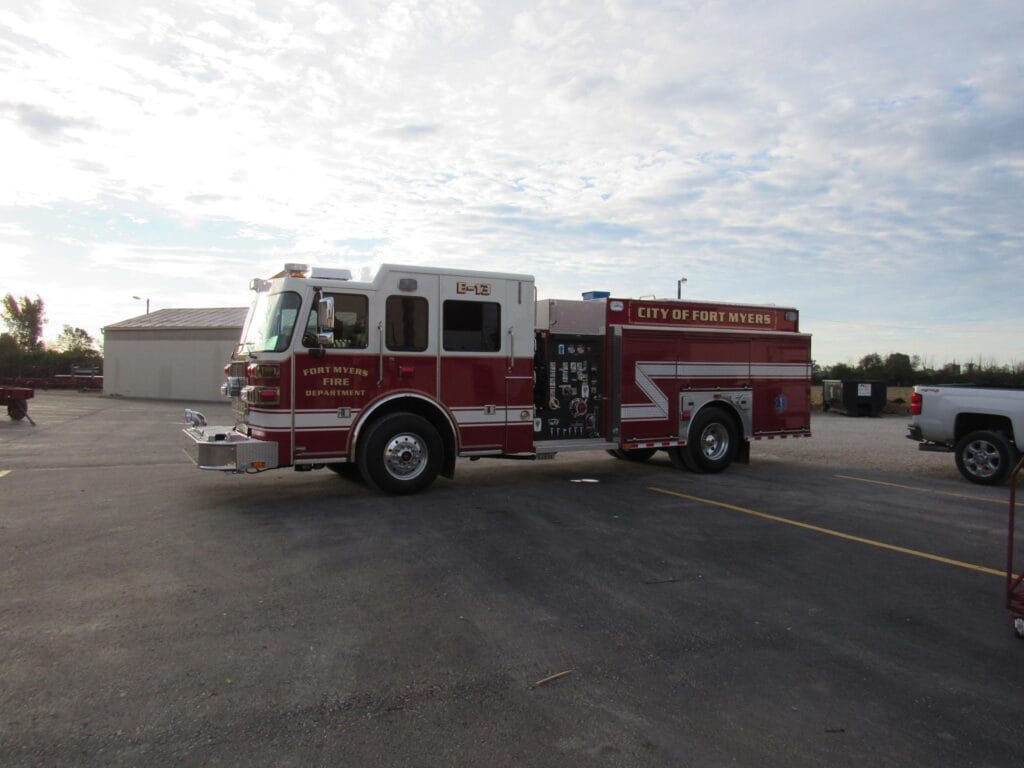

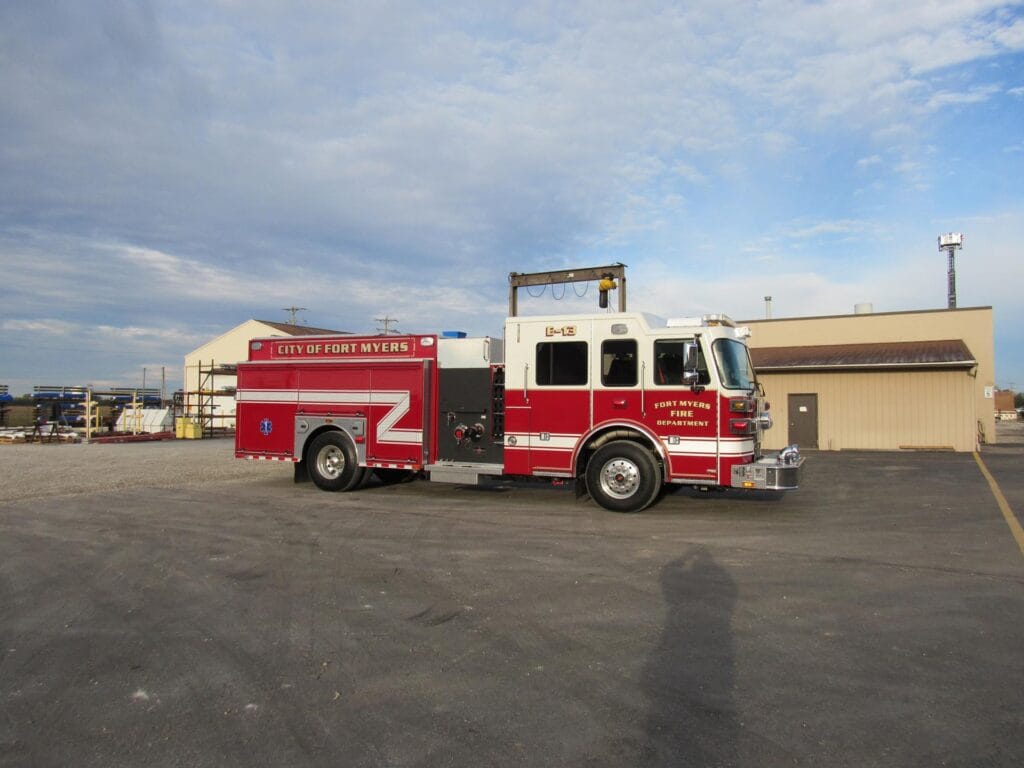

Fort Myers Fire Department
Department City / State:
Fort Myers, FL
Truck Type:
WHEEL BASE: 206”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 33’ – 4”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Niehoff, 360 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Waterous
- 1250 GPM, Single Stage
- Discharges: (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½ Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 1 ½” Speedlays with Lift Out Tray
- 750-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- 229 cu. ft. Total Compartment Space
- Alco-Lite Ladders (PEL-24, 24’ 2-section & PRL-14, 14’ Roof & 10’ Folding)
- Ladder Chute
OPTIONAL EQUIPMENT:
- 24” Bumper Extension, 2” Raised Lid, and Deep-Center 3/4 Width Storage Well
- Federal Q2B Siren
- 3,000W Portable Honda Generator
- Whelen Traffic Advisor
- Whelen 600 Super LED Warning Lights
- Two Pair of Whelen M9V2 Combo Lights
- Kussmaul Deluxe Bar Graph Display
