Delivery Date:
06/28/2023
Department Name:

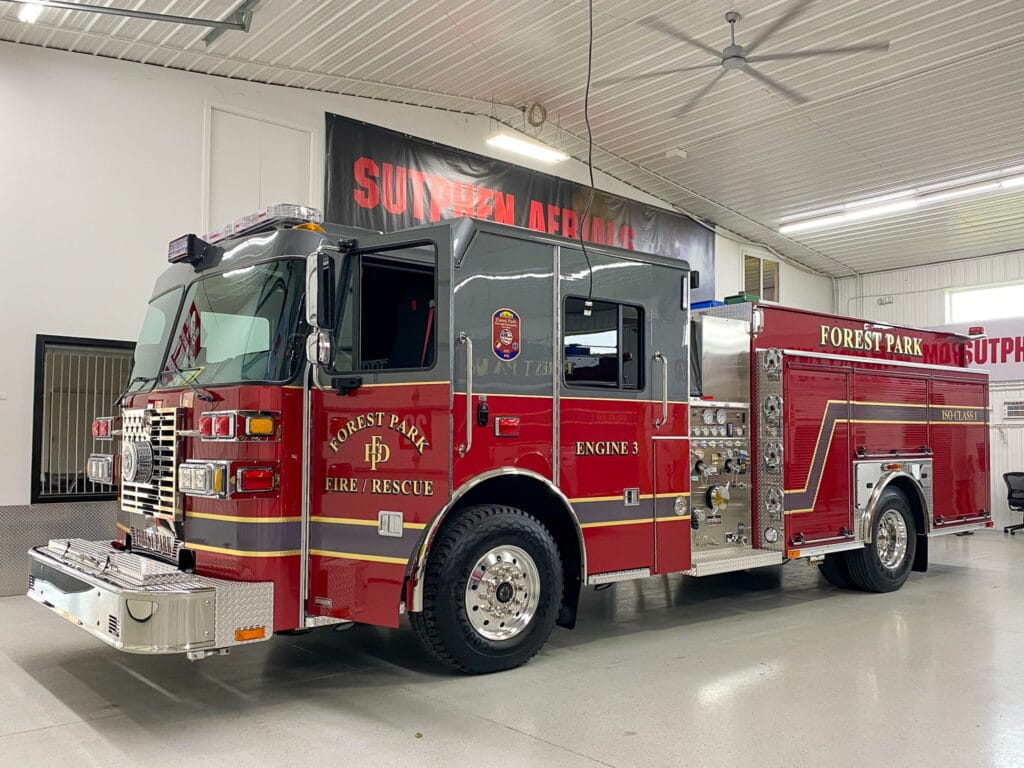

Forest Park Fire Department
Department City / State:
Forest Park, GA

Dealer – Williams Fire Apparatus

WHEELBASE: 196 ½”

TRAVEL HEIGHT: 9’ – 8”

TRAVEL LENGTH: 32′ – 6 ½”

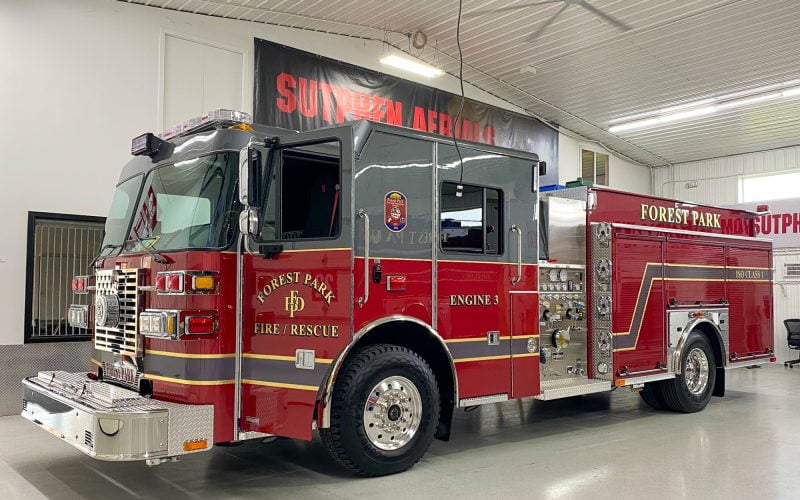

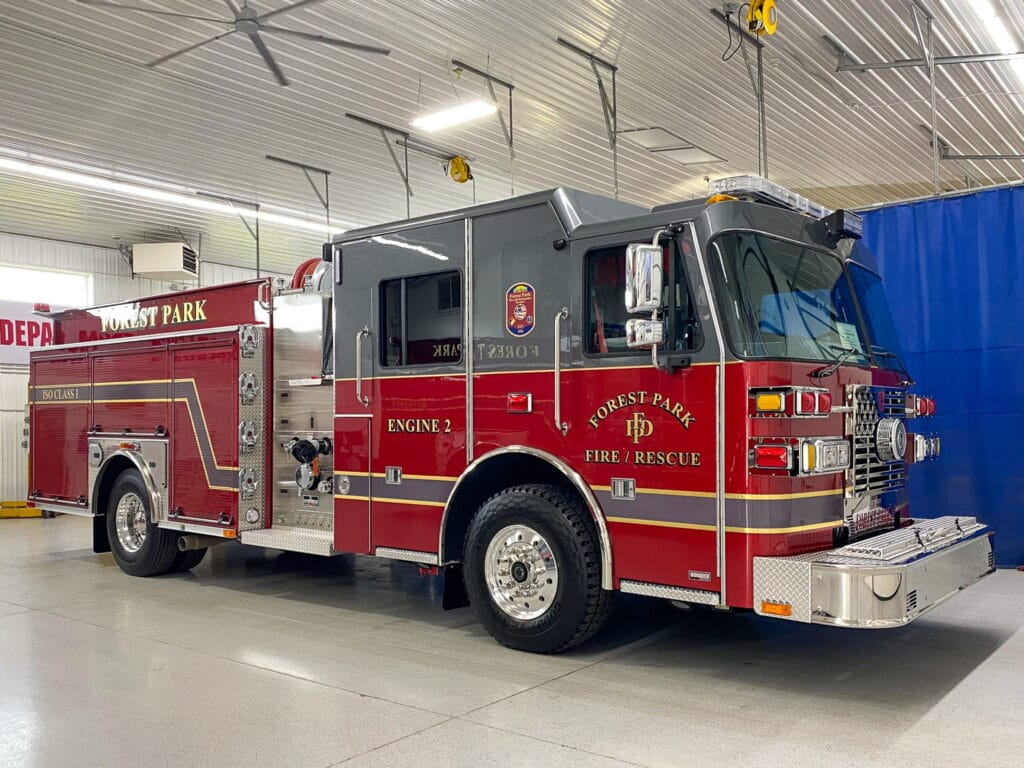

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension: 19,000 lbs.
  • Rear Axle and Suspension: 24,000 lbs.
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS3000

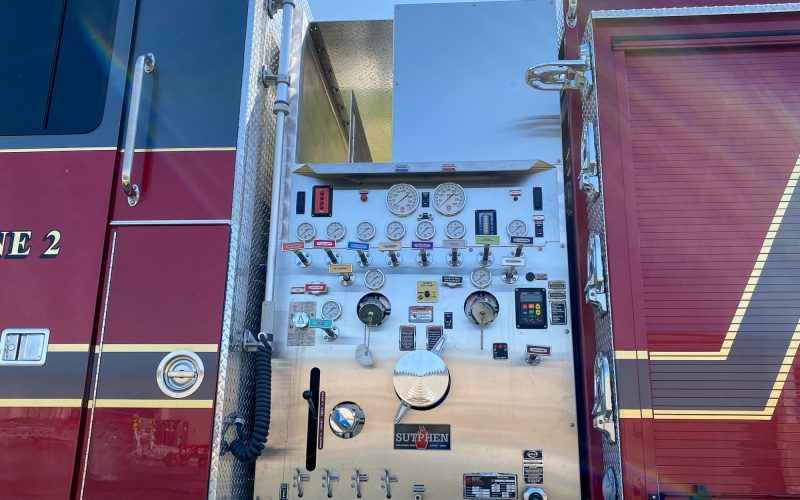

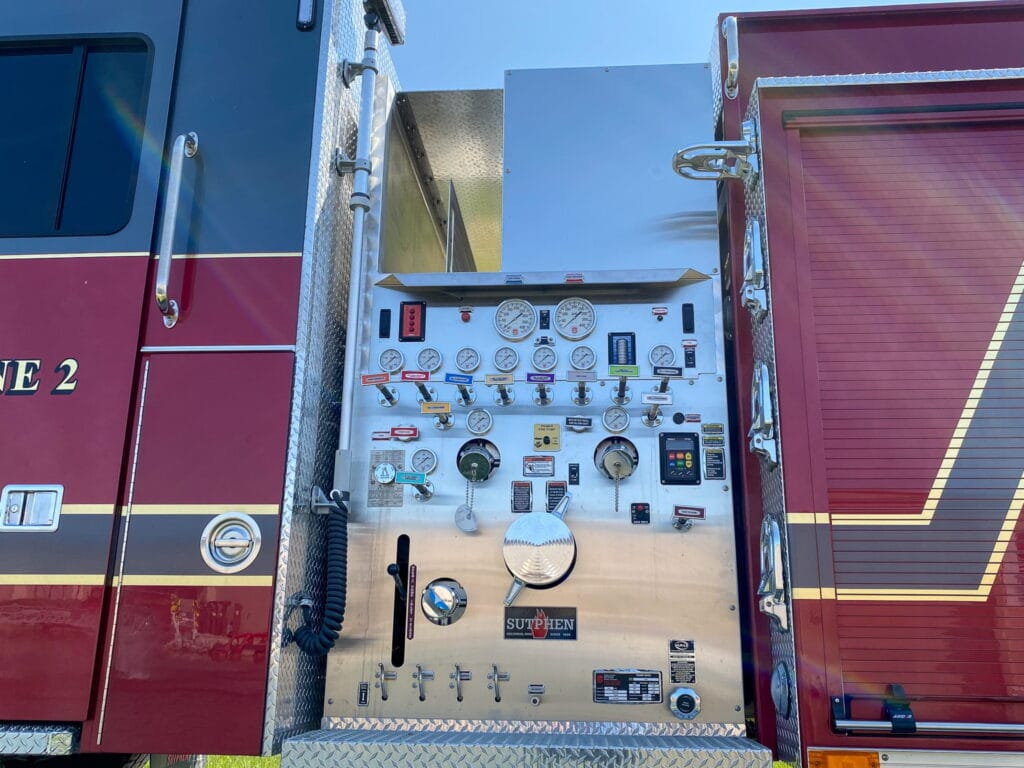

PUMP:                  Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslays: (2) 2” w/ 1 ½” Swivel
  • 750-Gallon Water Tank
  • 30-Gallon Foam Tank
  • Foam System: Akron 125 GPM 3126 By-Pass w/ Flush to a Discharge Line

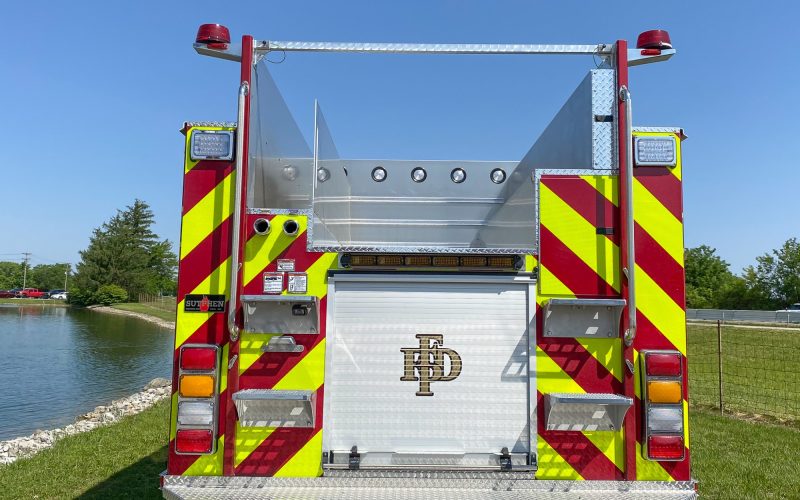

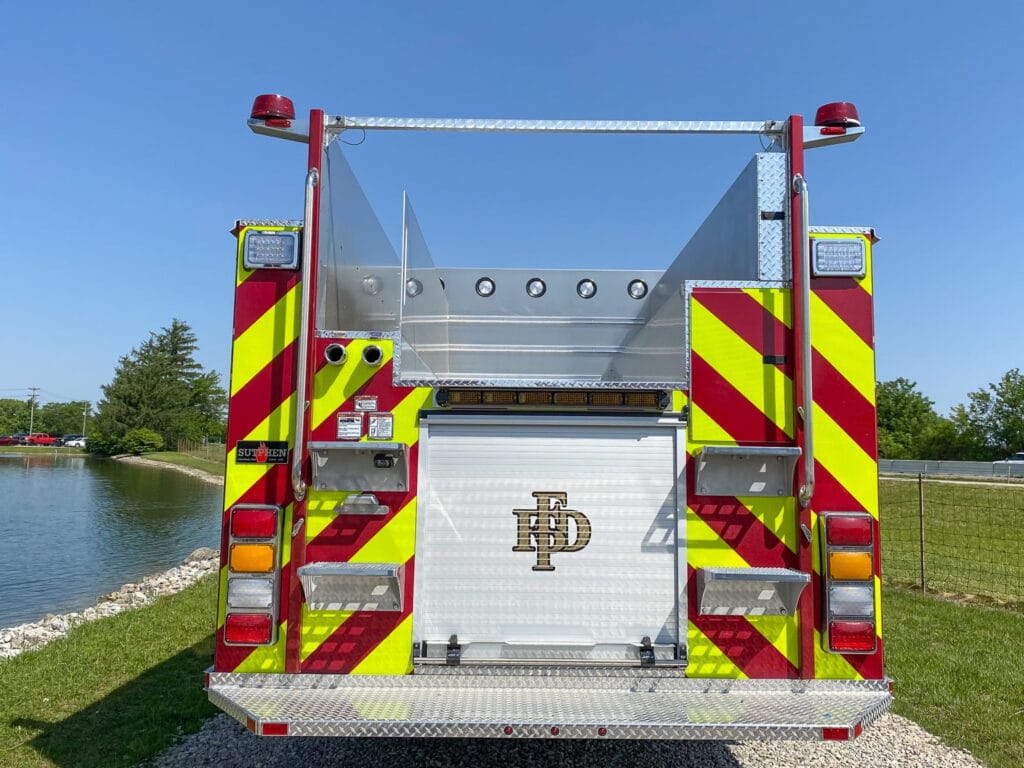

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 200 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
  • Body: S2M, Lower Left and Center Hosebed 16” – Alum 43/53 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Polihed Staines Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Two Cameras
  • Intercom System: Firecom Wireless
  • Whelen Freedom IV 72” LED Light Bar
  • FRC Spectra 12V LED Brow Light
  • FRC Spectra 12V Tele Lights
