Delivery Date:
12/17/2024
Department Name:
Five Mile Point Fire Company
Department City / State:
Kirkwood, NY

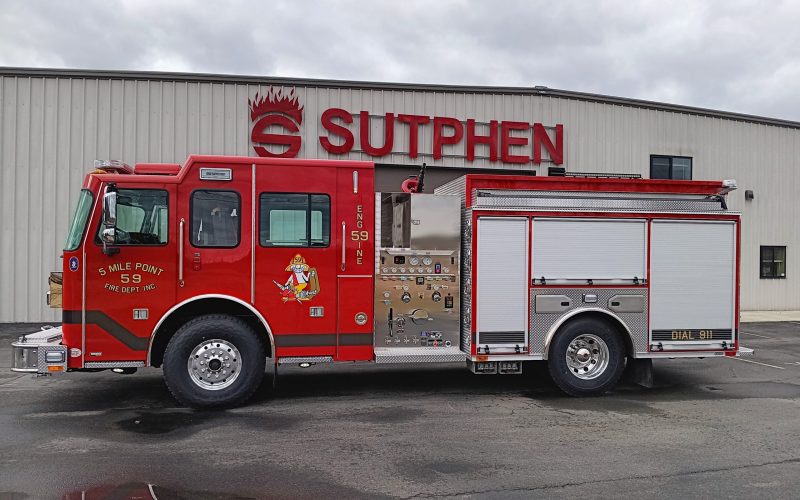

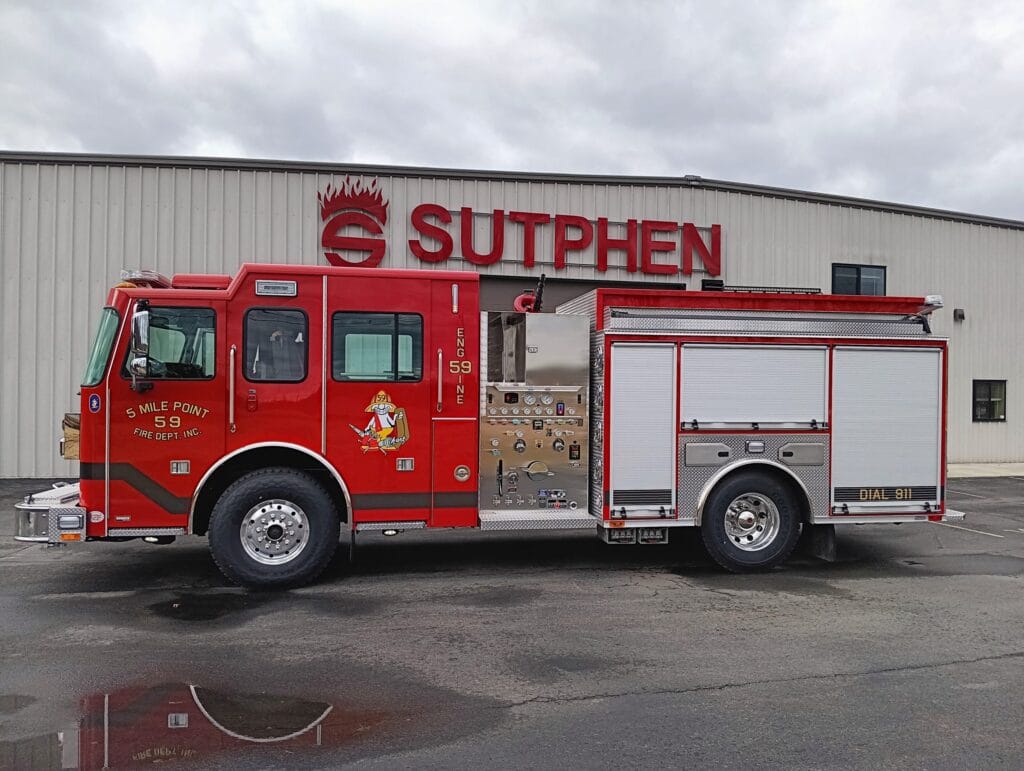

Truck Type:
WHEELBASE: 183”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 30’ – 10”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Cab w/ a 10” Raised Roof
- Four-Door, Seven-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 23,000 lbs w/ (4) 56” Leafs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins X 12, 525 HP
- Alternator: Leece Neville, 270 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper w/ 2” Plumbing, (1) 3” Deck Gun
- Crosslays: (2) 2” w/ 1 ½” Swivel
- 1000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- AMDOR Roll-Up Compartment Doors
- Nearly 210 cu ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 28’ 2-Section & 775A 16’ Roof & 10’ Folding
- Body: S1 – Aluminum 31/53 Right Low (Brackets)
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper
- Camera System: Safety Vision SV-CLCD0-70 (Wired)
- Federal Q2B Siren, Grille Mount
- FRC Spectra LED Brow Light
- Whelen Freedom IV 72” LED Light Bar
- Whelen L31 Beacons
- Whelen 36” Traffic Advisor
- FireTech Mini Brow Light
- Whelen 600 Quad Cluster
MONITOR:
- TFT XFC-42 Crossfire w/ Safety Flow w/ Quad Stack Tip & Stream Shaper
