Delivery Date:
02/13/2020
Department Name:

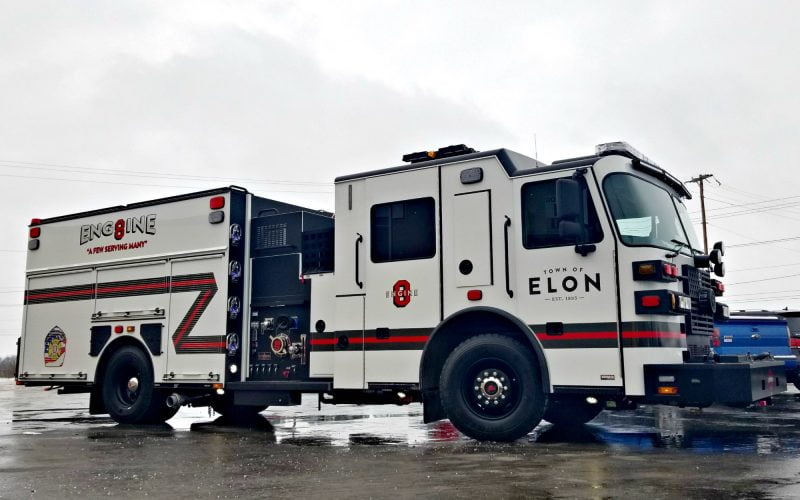

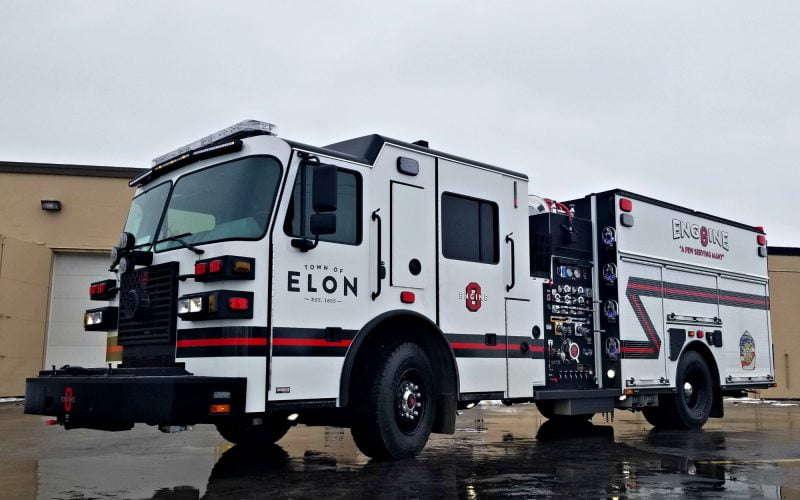

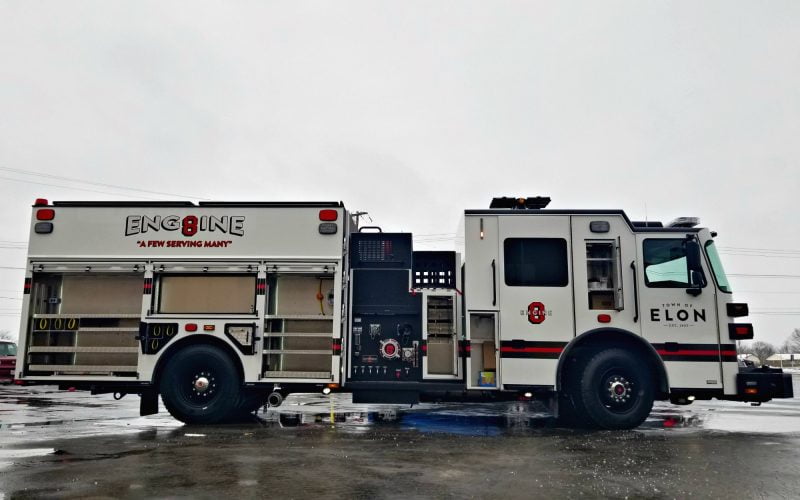

Elon Fire Department
Department City / State:
Elon, NC
Truck Type:

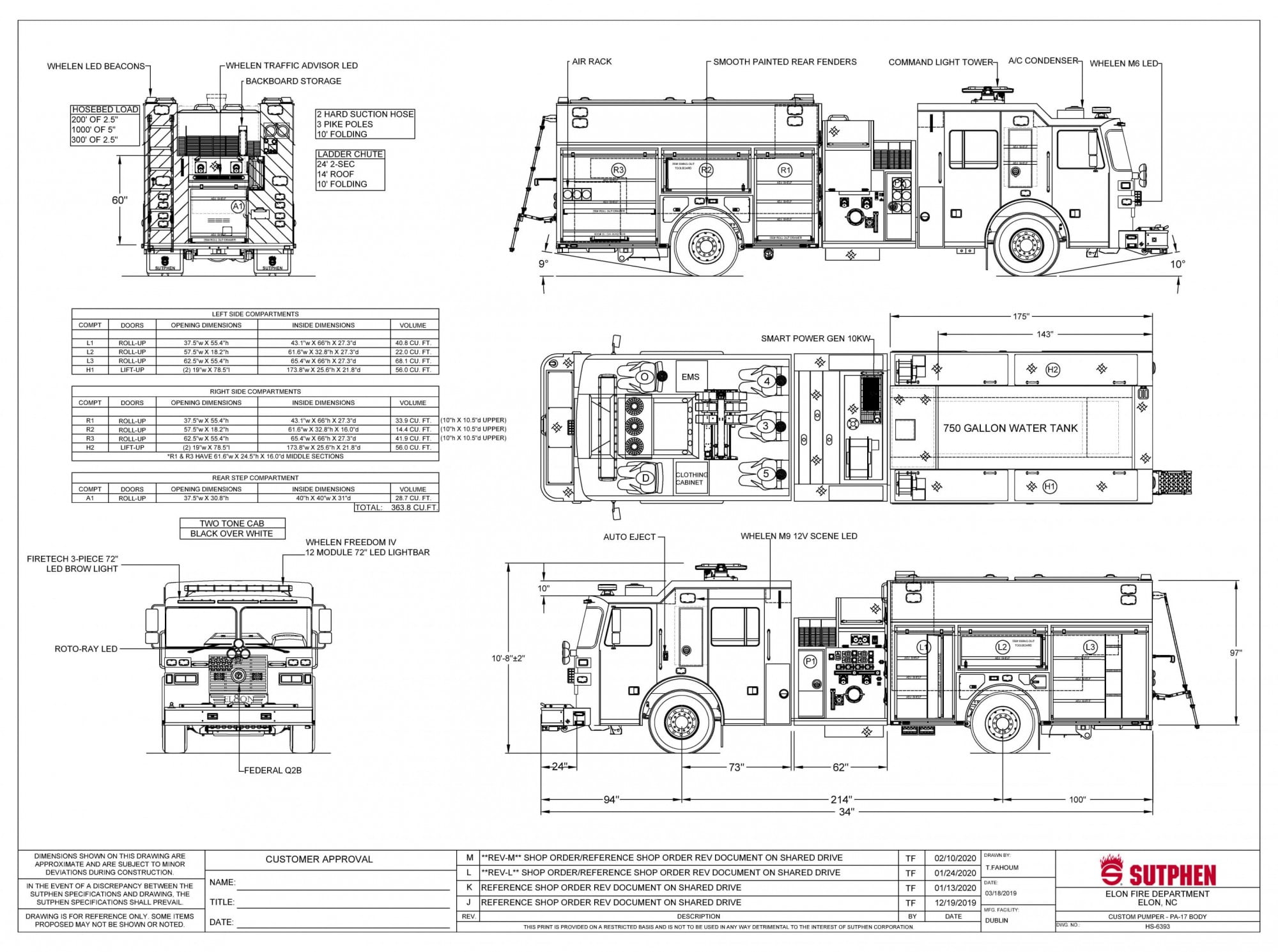

WHEELBASE: 214”
TRAVEL HEIGHT: 10’ – 8”
TRAVEL LENGTH: 34’
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

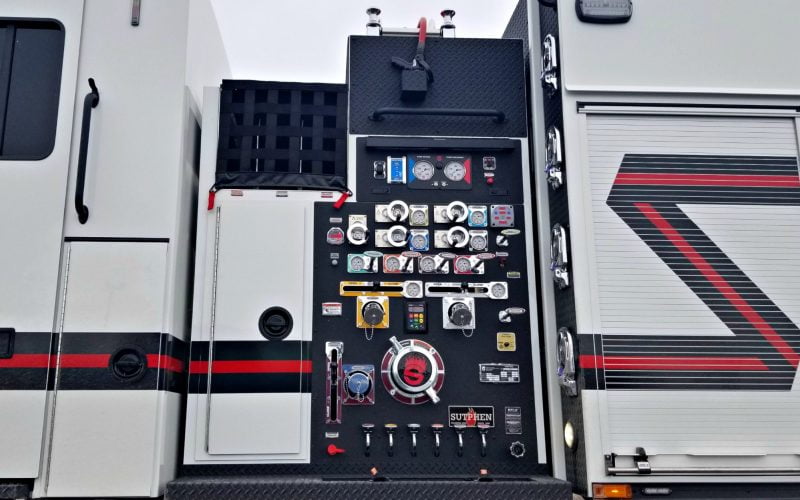

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe to Left Rear, (1) 2 ½” Pipe to Right Rear, (1) 1 ½” Trident Discharge Front Bumper, (1) 3” Deck Gun
- 750-Gallon Water Tank
- Crosslay: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel

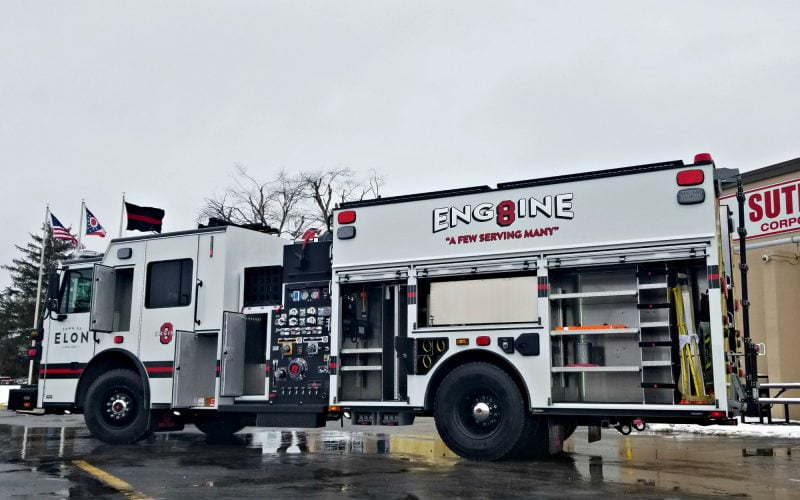

BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- Over 360 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Body: Modified PA-17, 43/65 Chute & Double Hatch
ADDITIONAL EQUIPMENT:
- 24” Extreme Duty Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- FRC, Inview Trueview, (2) Cameras
- Thermal Imaging Camera
- 10KW Smart Power Generator
- Sigtronics Headset Intercom System, 5-Position
- Hannay Electric Cord Reel, 150’ (2)
- Roto-Ray Warning Light
- Whelen Freedom IV 72” (12) LED Lightbar
- Whelen M9 12V Scene Lights
- Whelen Traffic Advisor
- Firetech 3-Piece 72” LED Brow Light
- Command Light Tower K415A-W2 with Strobe Light
