Delivery Date:
08/20/2020
Department Name:
Elmira Fire Department
Department City / State:
Elmira, NY
Truck Type:

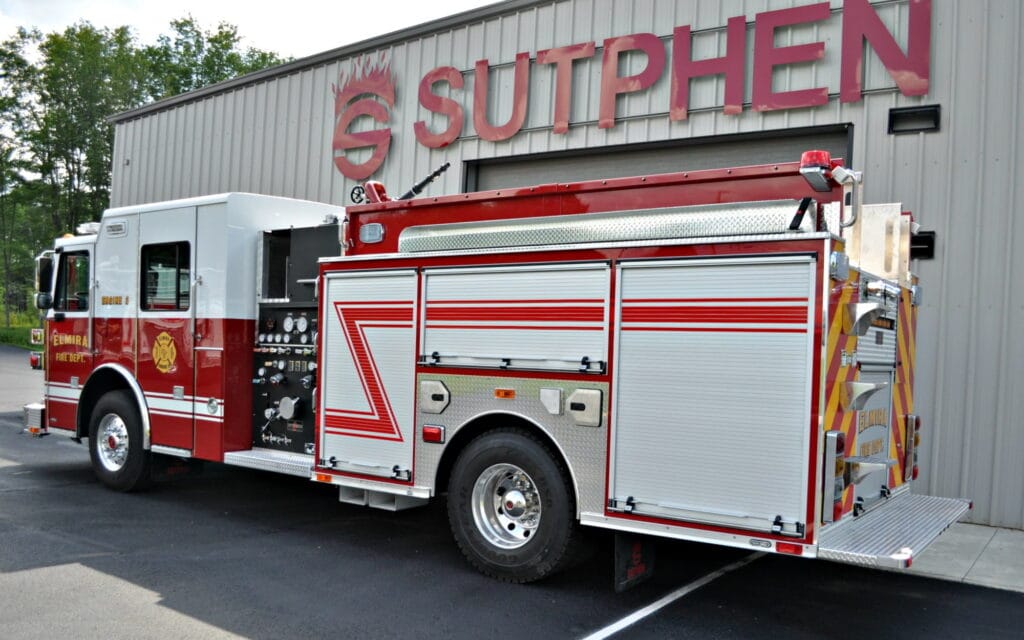

Sutphen Corporation – HS #6619
Dealer – Vander Molen Fire Apparatus Sales and Service
WHEELBASE: 196”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 32’ – 3 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 400 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS 3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper Discharge, (1) 3” Deck Gun
- Crosslay: (2) 2” w/ 1 ½” Swivel
- Monitor: Akron 3423 Apollo
- 750-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors
- 222 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chute with Backboard Storage
- Body: S2-Alum 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Hannay Electric Cord Reel, 150’ (1)
- Generator: 6KW Harrison HYD
- Whelen Freedom IV 72” LED Lightbar
- Whelen L31 Beacons
- Akron Scene Star
- Akron Scene Star Recessed 12V
- Recessed Traffic Advisor
