Delivery Date:
06/17/2021
Department Name:

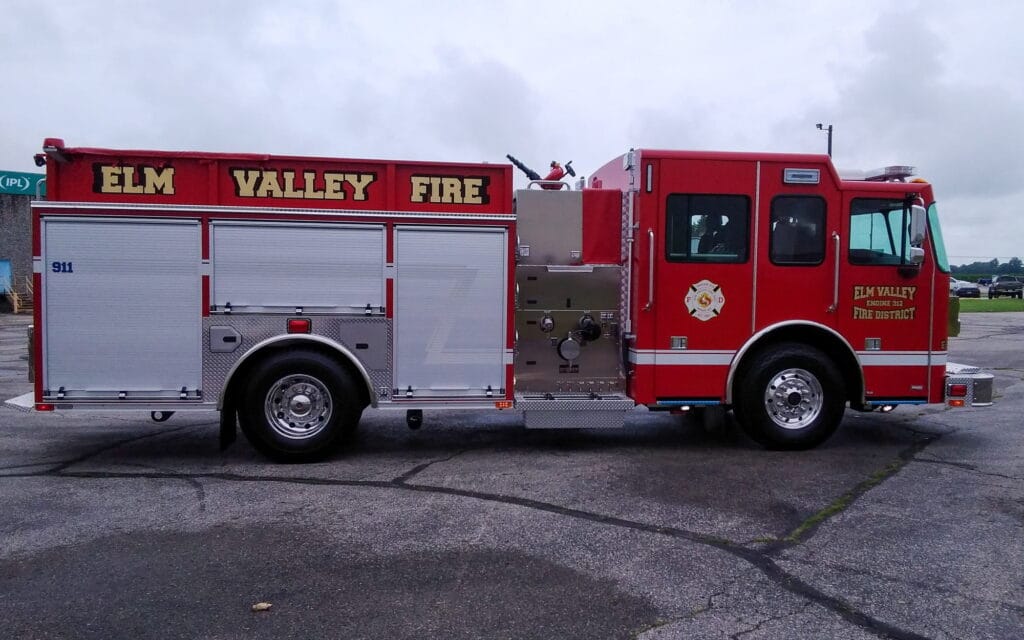

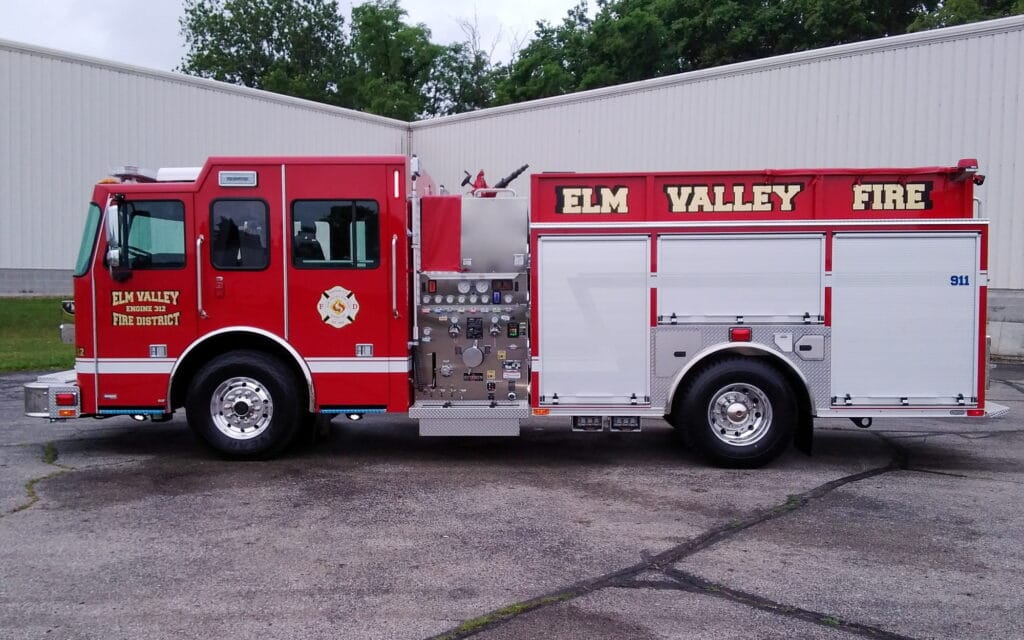

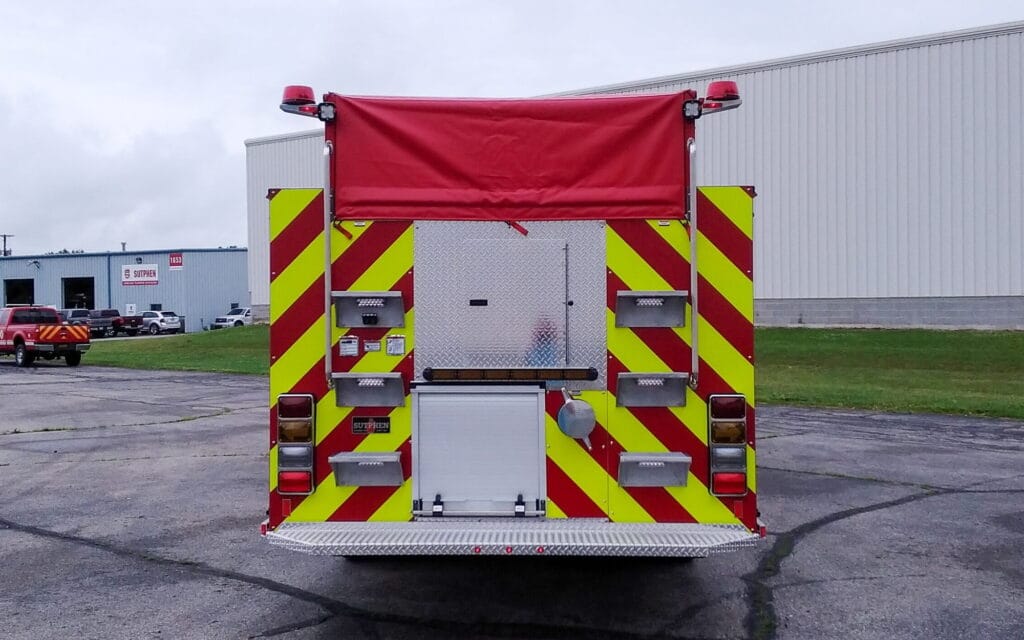

Elm Valley Joint Fire District
Department City / State:
Ashley, Ohio
Truck Type:
Sutphen Corporation – HS #6861
Dealer – Herb Fire
WHEELBASE: 185”
TRAVEL HEIGHT: 9’ – 10’
TRAVEL LENGTH: 31’ – 4”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Frame Rails (50K PSI)
- Front Axle and Suspension 19,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9 380 HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS 3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left of Main Hosebed, (1) Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslay: (2) 2” w/ 1 ½” Swivel
- 1,000 Gallon Water Tank
- 20 Gallon Foam Tank
- Foam System: Hale Smartfoam 2.1A
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-up Compartment Doors
- Over 245 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: G9 – Aluminum 40/51 Ladders Through Tank
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless-Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera: FRC Inview Trueview, Single Camera
- (2) Triple Air Bottle Compartments
- Whelen Freedom LED Lightbar
- Whelen LED Traffic Advisor
- FRC Spectra Brow Light
- FRC Spectra LED Scene Light
- FRC Spectra Telescopic Lights
- Firetech LED Work Lights
