Delivery Date:
01/27/2025
Department Name:

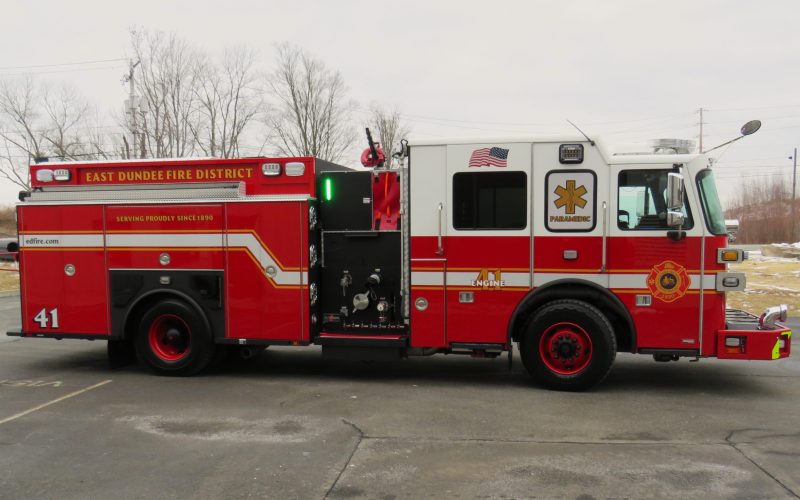

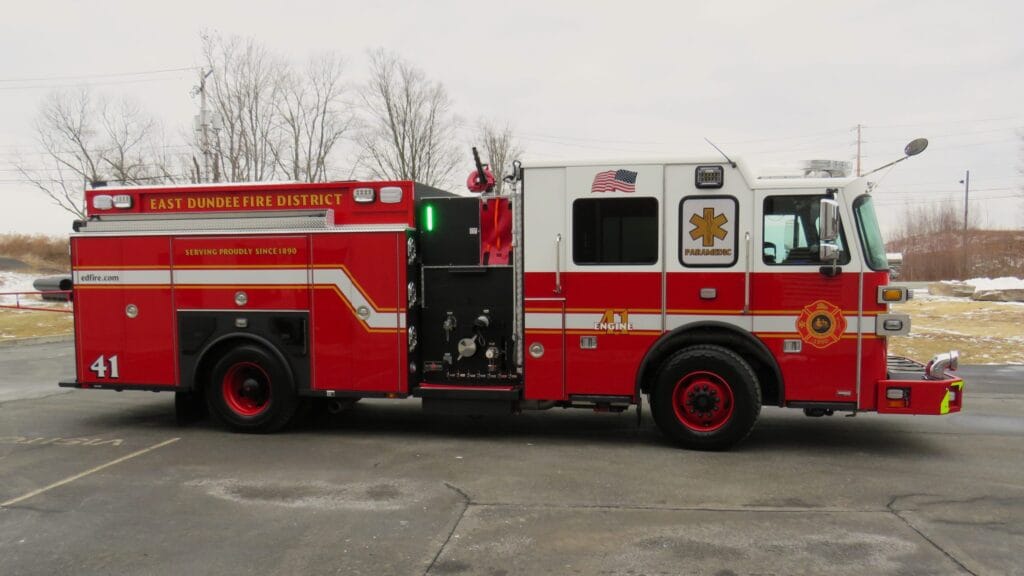

East Dundee Fire Department
Department City / State:
East Dundee, IL

Dealer – Legacy Fire Apparatus

WHEELBASE: 196”

TRAVEL HEIGHT: 10’ – 5”

TRAVEL LENGTH: 32’ – 6”

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 20,000 lbs w/ (4) 56” Leafs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) Right Rear, (1) 2 ½” Front/ Left of Main Hosebed, (1) 1 ½” Front Bumper, 2” Plumbing, (1) 3” Deck Gun
  • Crosslays: (2) 2” w/ 1 ½” Swivel
  • 1000-Gallon Water Tank

BODY:                 Sutphen

  • 3/16” Extruded Aluminum
  • Mixed AMDOR Roll-Up and Hinged Compartment Doors
  • Over 200 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
  • Body: S2 – Alum 43/53 Lad Chute

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FireCom 5100D, Single Radio, 5 Position
  • Camera System: FRC, Inview Trueview, Single Camera (Wired)
  • Whelen Freedom IV 23” LED Light Bars w/ Opticom
  • FireTech 3-Piece 72” LED Brow Light
  • Whelen PFH2 Tele Lights
  • Whelen M6V2 Warning/ Scene Lights

MONITOR:

  • TFT XFC-42 Crossfire w/ Safety Flow w/ Quad Stack Tips & Stream Shaper
