Delivery Date:
07/18/2017
Department Name:
Durham Fire Department
Department City / State:
Durham, NC
Truck Type:

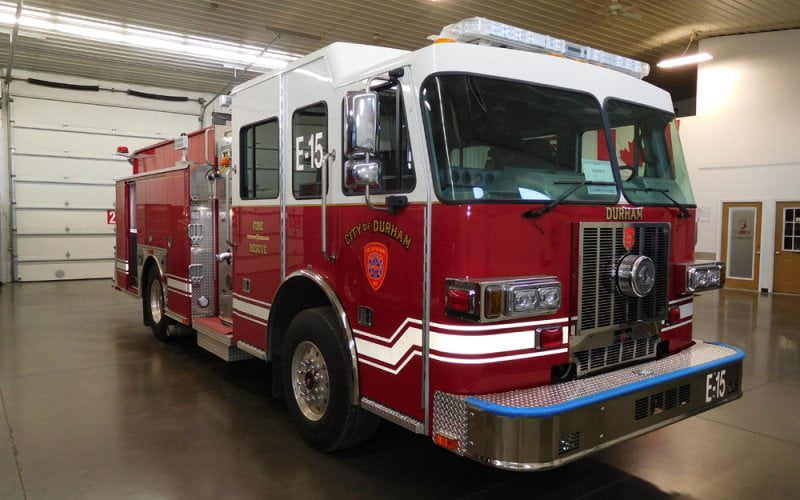

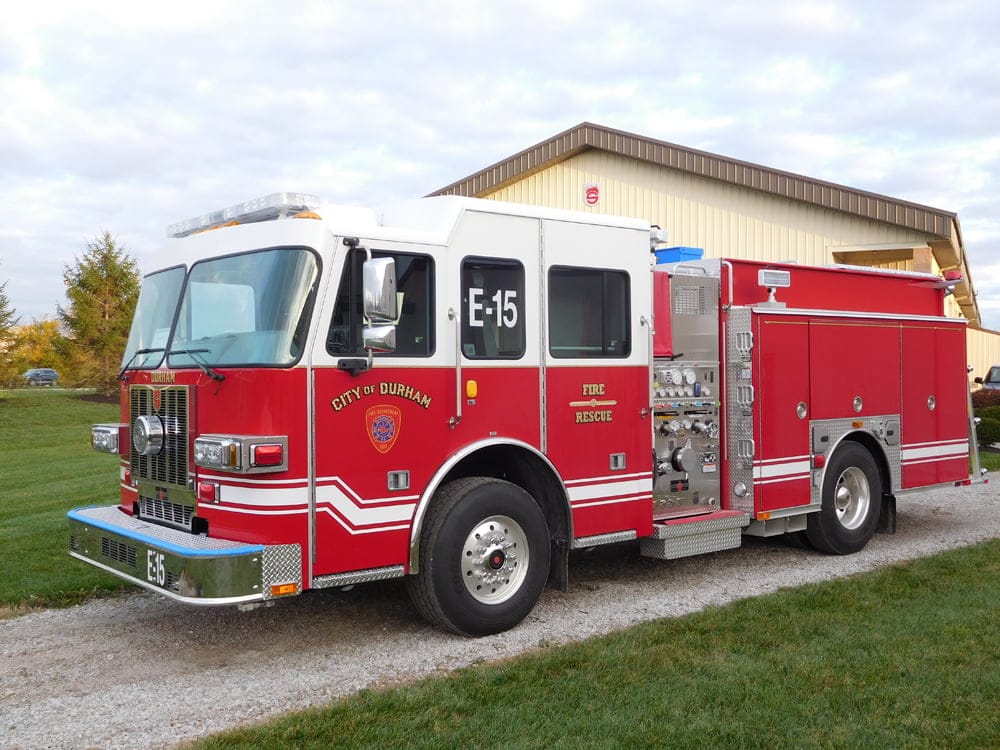

Custom Pumper – S2/S4 Special Durham Body (HS-5875)
WHEEL BASE: 173”
TRAVEL HEIGHT: 9’-8”
TRAVEL LENGTH: 30’-1”

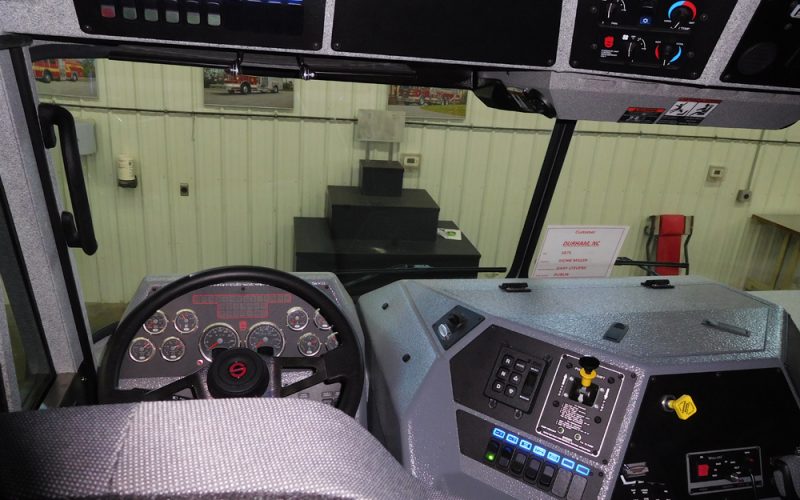

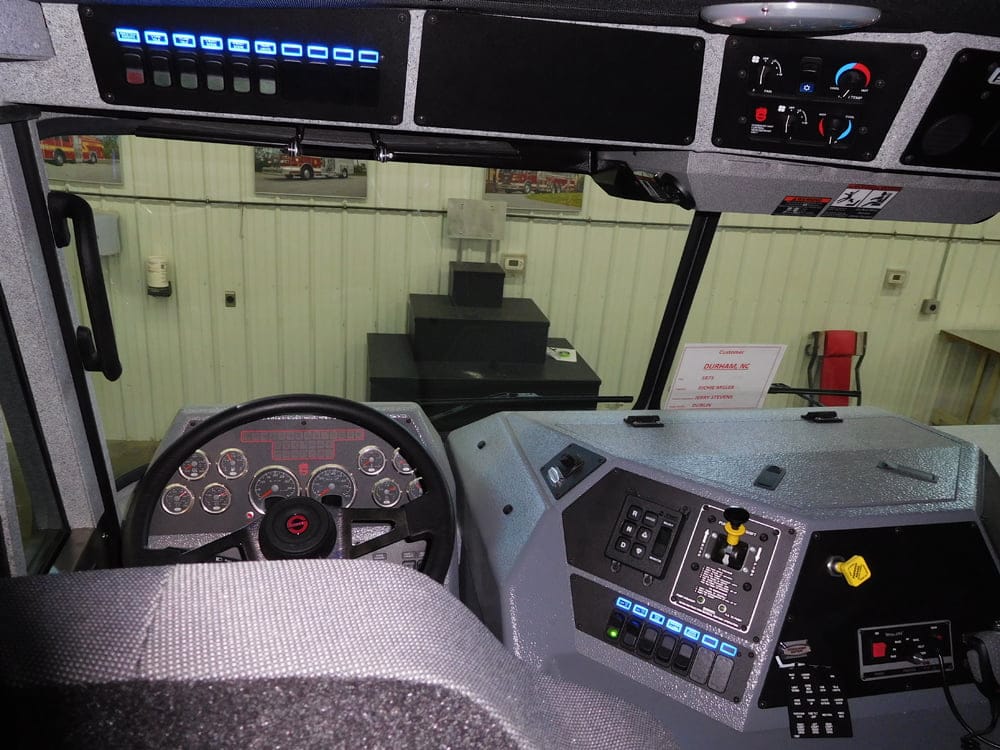

CHASSIS: Sutphen 62” cab with half 10” raised roof
- Four-door, six-person
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins ISL 9, 400 HP
- Alternator: Leece Neville 270 AMP
- Transmission: Allison Gen 5, EVS3000

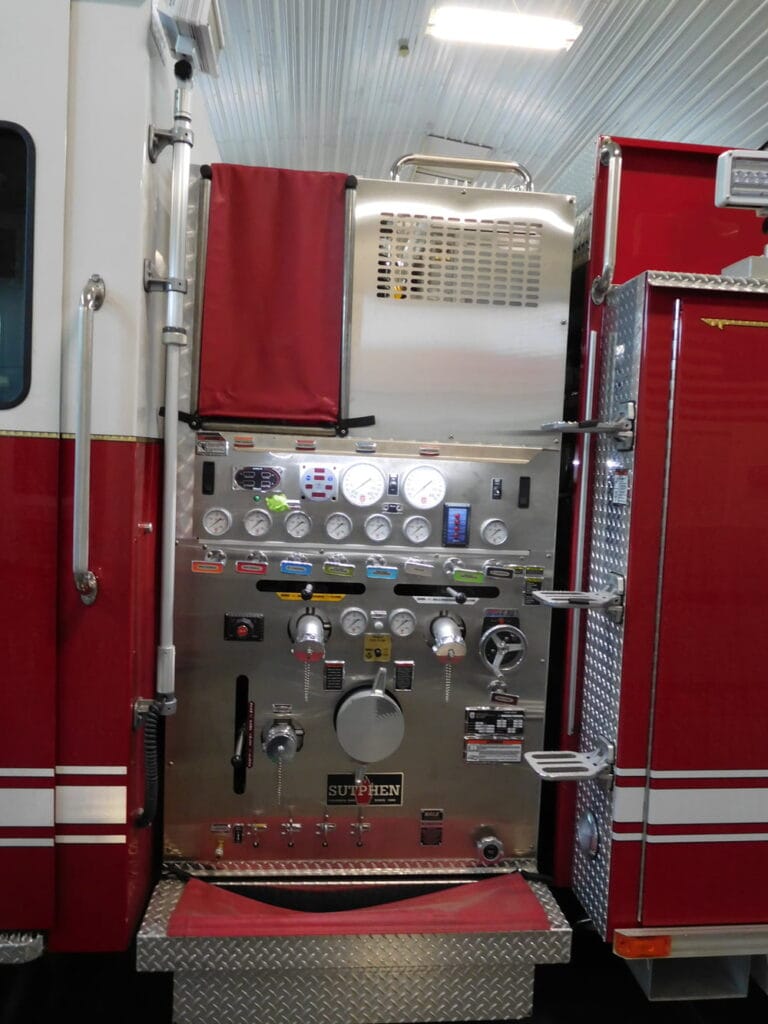

PUMP: Hale
- QMAX-1500
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Left, (1) 3” Deck Gun
- 1000-Gallon Water Tank

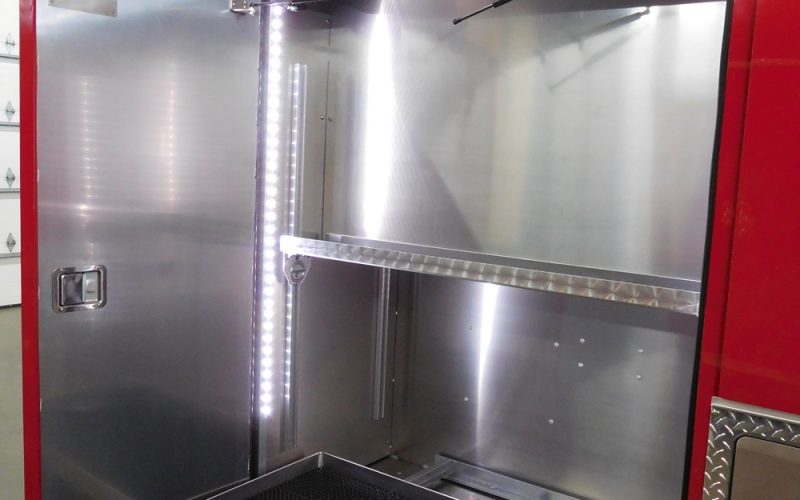

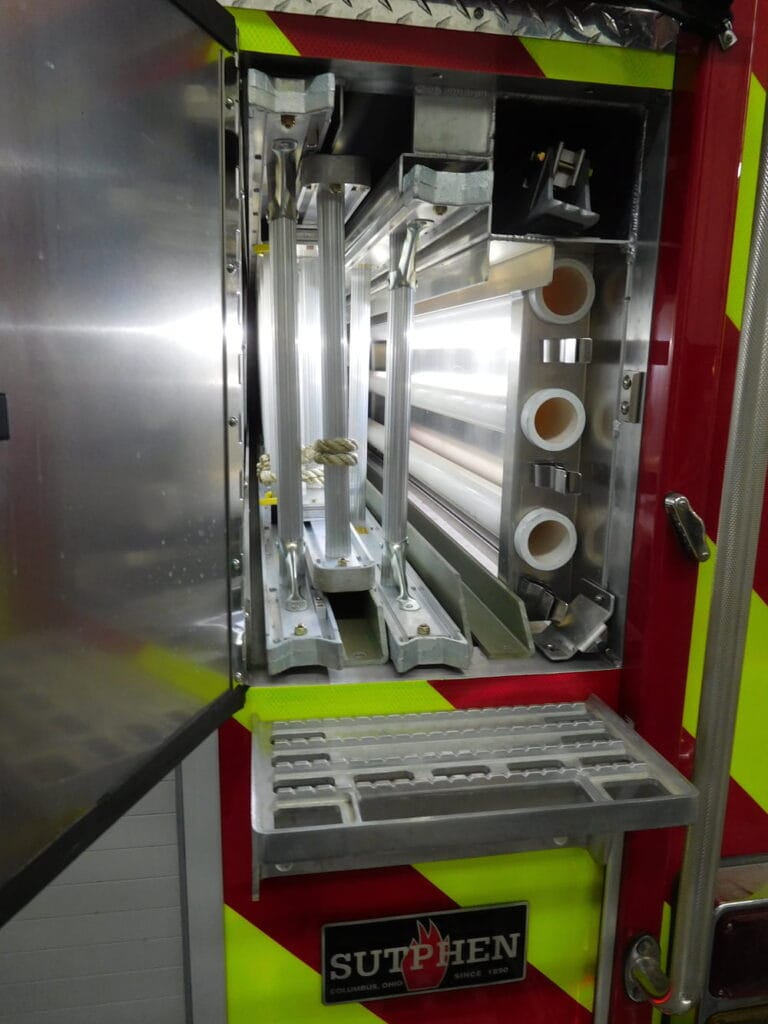

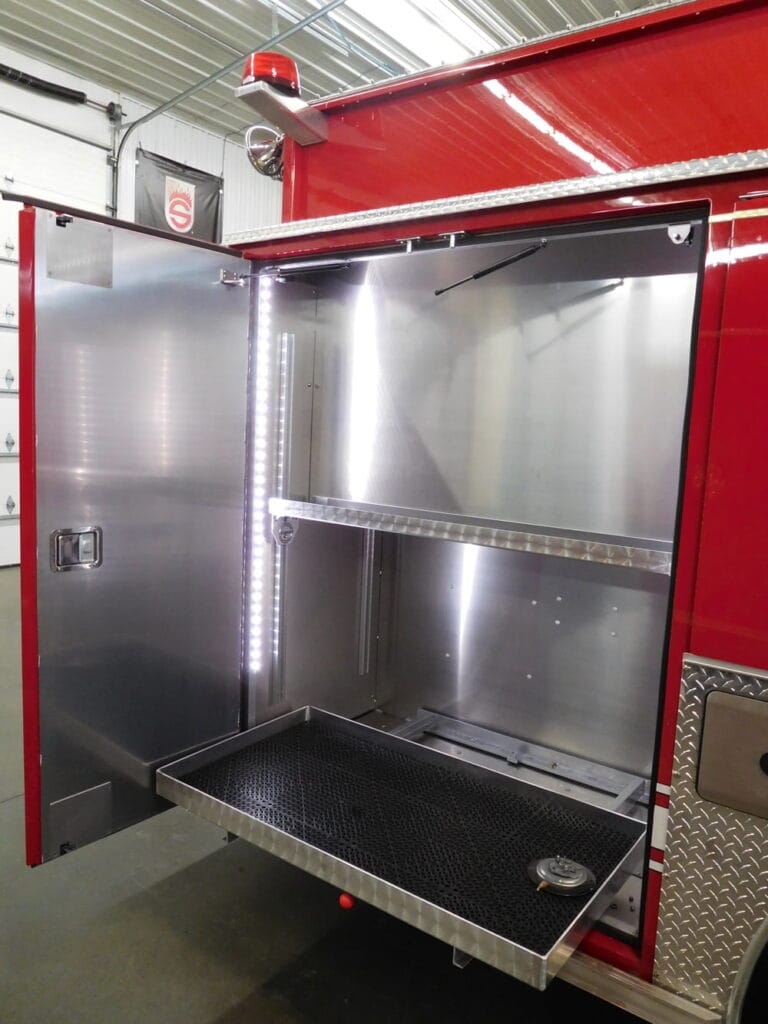

BODY: Sutphen
- Aluminum
- Hinged Compartment Doors
- 224 cu. ft. Total Compartment Space
- Alco-Lite Ladder Compliment
OPTIONAL EQUIPMENT:
- 12” Bumper
- Federal Q2B

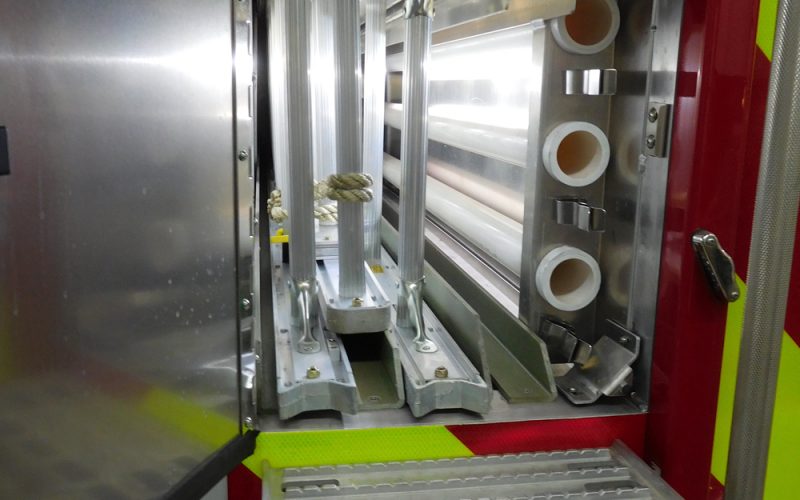

- Ladder Chute with Backboard Storage
- Smart Power 6KW Generator
- Hannay Electric Cord Reel with 150’
- Monitor: Elkhart 8297 “Stinger”
