Delivery Date:
07/18/2017
Department Name:
Durham Fire Department
Department City / State:
Durham, NC

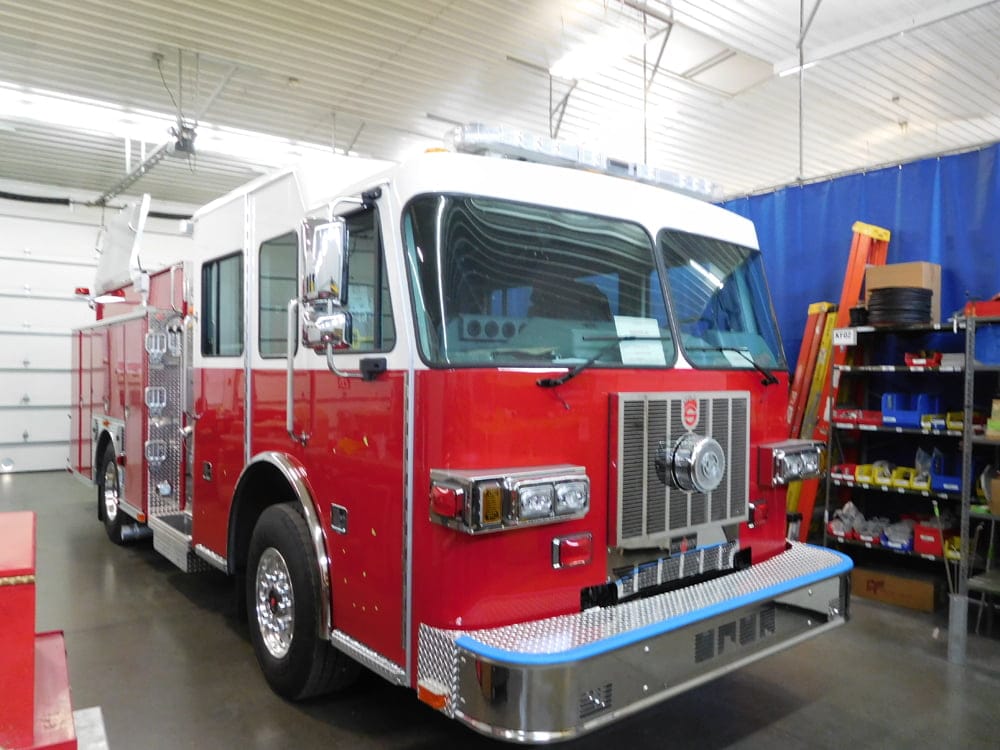

Custom Pumper – S2/S4 Special Durham Body (HS-5874)

WHEEL BASE: 173”

TRAVEL HEIGHT: 9’-8”

TRAVEL LENGTH: 30’-1”

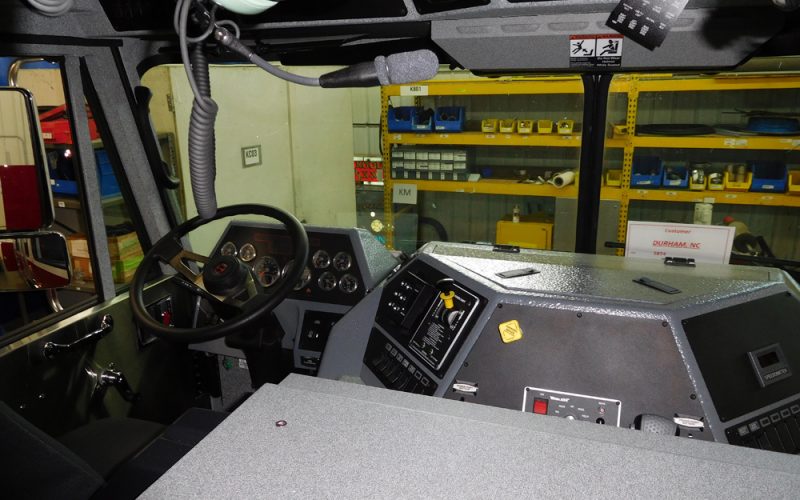

CHASSIS: Sutphen 62” cab with half 10” raised roof

  • Four-door, six-person
  • Front Axle and Suspension 20,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins ISL 9, 400 HP
  • Alternator: Leece Neville 270 AMP
  • Transmission: Allison Gen 5, EVS3000

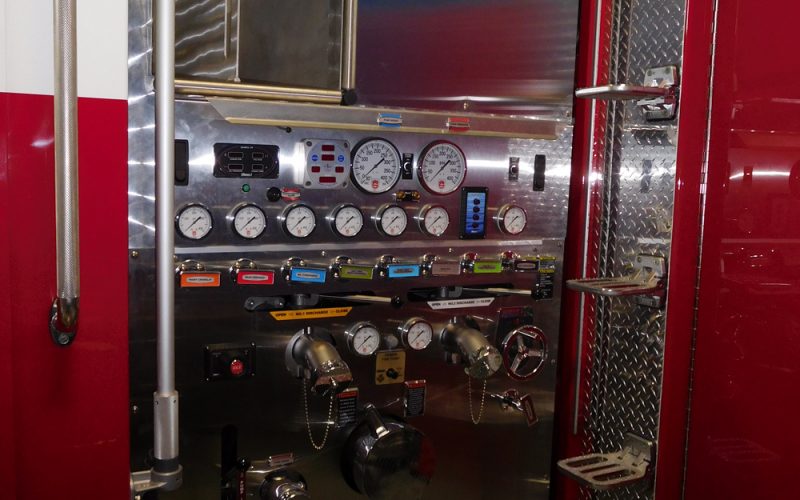

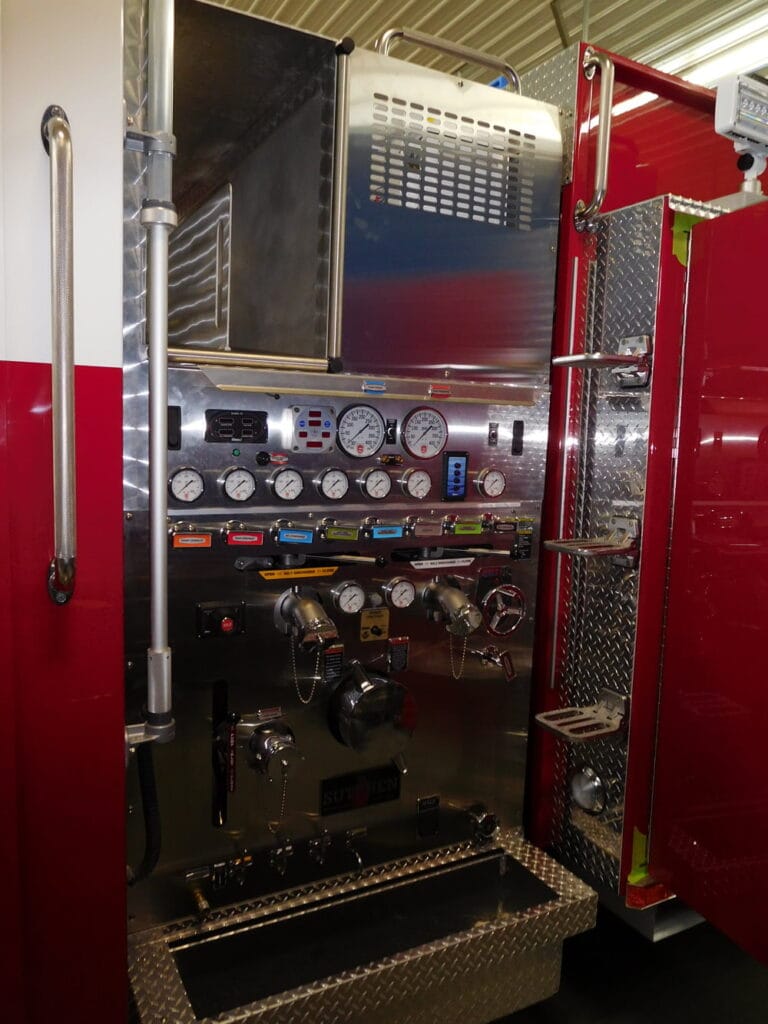

PUMP: Hale

  • QMAX-1500
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Left, (1) 3” Deck Gun
  • 1000-Gallon Water Tank

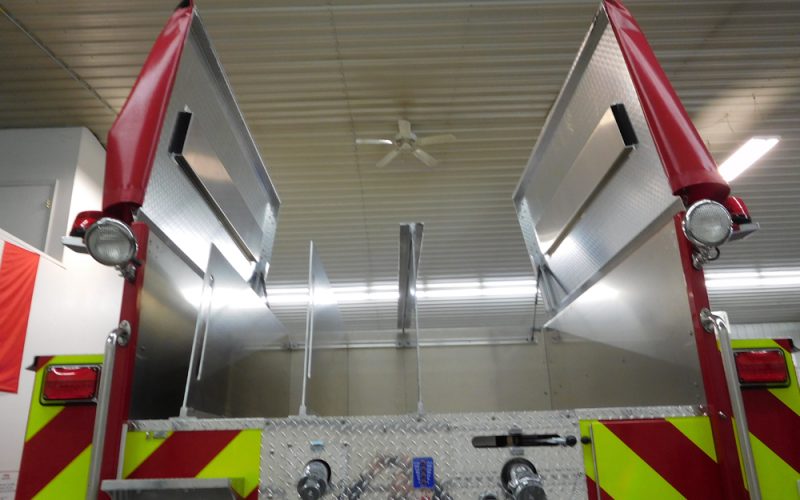

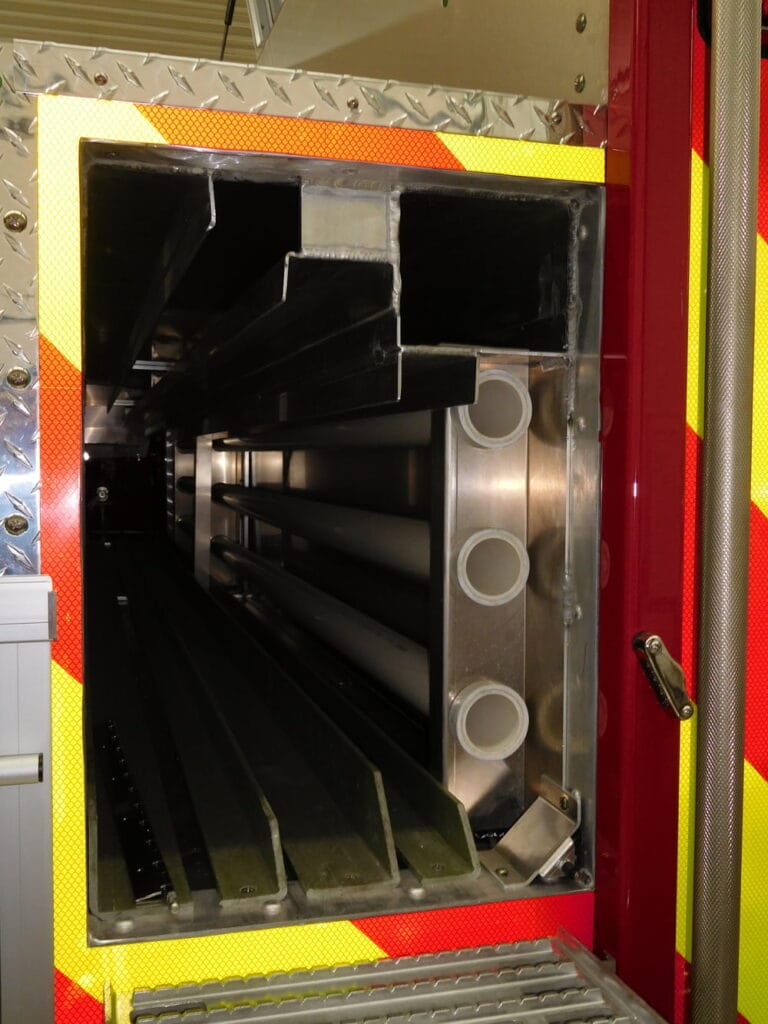

BODY: Sutphen

  • Aluminum

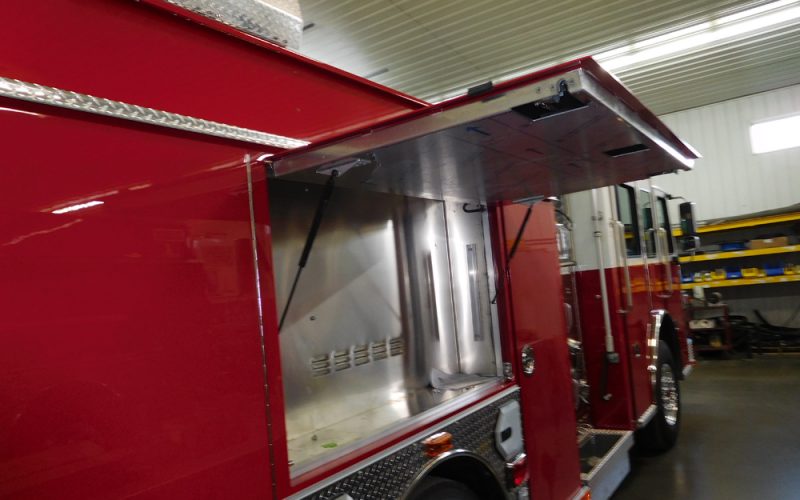

  • Hinged Compartment Doors

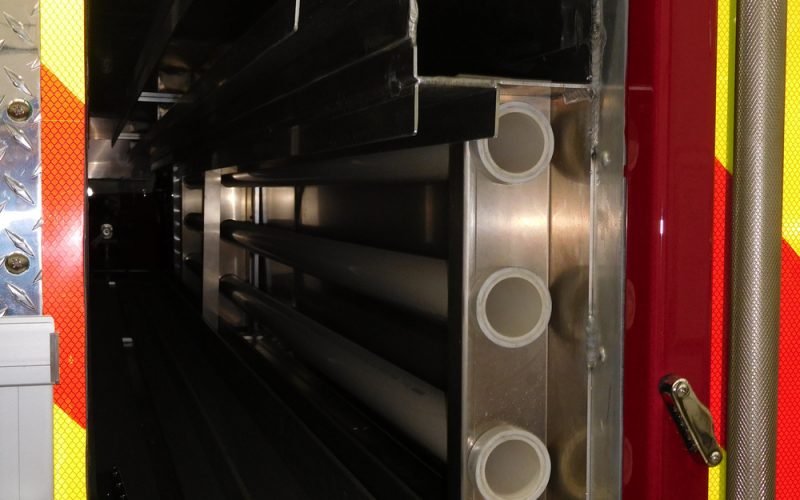

  • 224 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Compliment

OPTIONAL EQUIPMENT:

  • 12” Bumper
  • Federal Q2B
  • Ladder Chute with Backboard Storage
  • Smart Power 6KW Generator
  • Hannay Electric Cord Reel with 150’
  • Monitor: Elkhart 8297 “Stinger”
