Delivery Date:
11/18/2021
Department Name:
Durham Fire Department
Department City / State:
Durham, NC

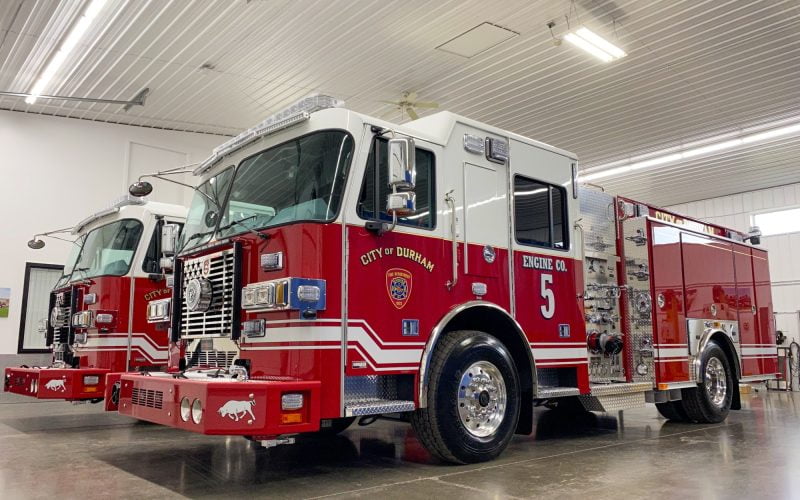

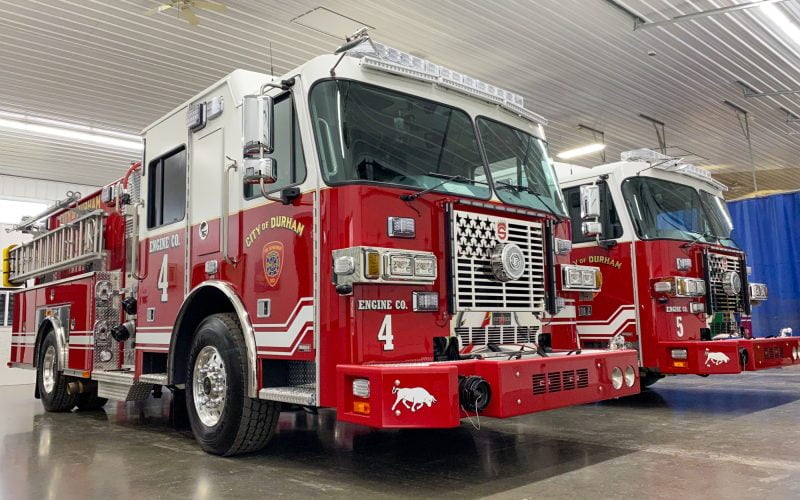

Sutphen Corporation – HS #6849-50

WHEELBASE: 176 ½”

TRAVEL HEIGHT: 9’ – 9”

TRAVEL LENGTH: 30’ – 3”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Half Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Rails (50K PSI)
  • Front Axle and Suspension 18,000 lbs
  • Rear Axle and Suspension 27,000 lbs
  • Engine: Cummins L 9 450HP
  • Alternator: Leece Neville 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (3) 2 ½” Pipe to Left Rear, (2) 2 ½” Pipe Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Combination Hinged and Roll-Up Compartment Doors
  • Over 220 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package: 900A 24’2 Section & 775A 14’ Roof & 10’ Folding
  • Body: PA-11 RES 31/53 Low RGT, Chrome Plated Brackets

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel, Painted
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC Inview Trueview, Three Cameras
  • Idle Control System: Harrison, 2B1C, 275 AH w/ Integrated Battery
  • Intercom: David Clark – 5 Position
  • Whelen Freedom IV 72” LED Lightbar
  • Whelen TAL85 Traffic Advisor
  • Whelen M9 Red LED
  • FireTech 3-Piece 12V Brow
  • FireTech Guardian 12V Scene
