Delivery Date:
12/12/2019
Department Name:
Durham Fire Department
Department City / State:
Durham, NC
Truck Type:
Sutphen Corporation – HS #6390
Dealer – Stevens Fire Equipment
WHEEL BASE: 173”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 30’ – 1”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 400 HP
- Alternator: Leece Neville, 270 AMP
- Transmission: Allison Gen 5, EVS3000

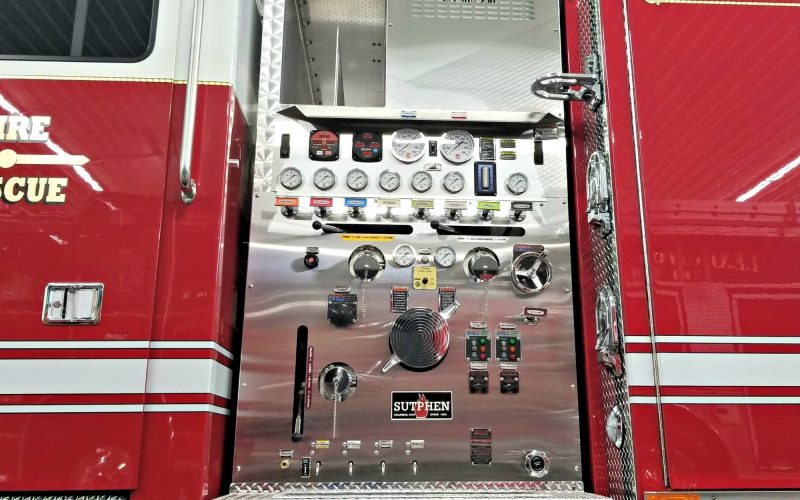

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (2) 2 ½” Left Rear, (1) 3” Deck Gun
- 1000-Gallon Water Tank
- Crosslay: (2) 2” w/ 1 ½” Swivel
BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Doors

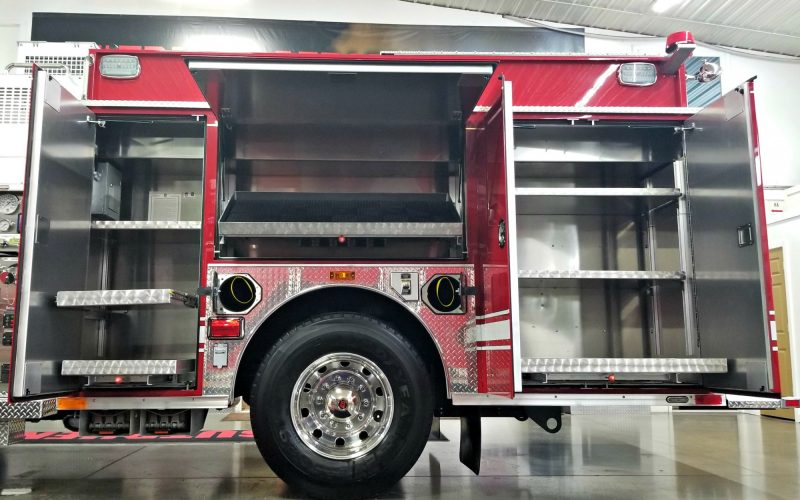

- 224 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
- Ladder Chute with Backboard Storage
- Body: S2/S4 – Alum 29/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 12” Formed Steel Channel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System, FRC, Inview Trueview
- 10K200 Harrison Diesel Generator
- Hannay Electric Cord Reel, 150’ (1)
- Whelen Freedom IV (12) LED Lightbar
- Whelen M9 12V LED Scene
- Whelen L31 Red Beacons
- Firetech 3-Piece 12V LED Brow
