Delivery Date:
10/12/2018
Department Name:
Durham Fire Department
Department City / State:
Durham, NC
Truck Type:
WHEEL BASE: 173”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 30’ – 1”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 400 HP
- Alternator: Leece Neville, 270 AMP
- Transmission: Allison Gen 5, EVS3000

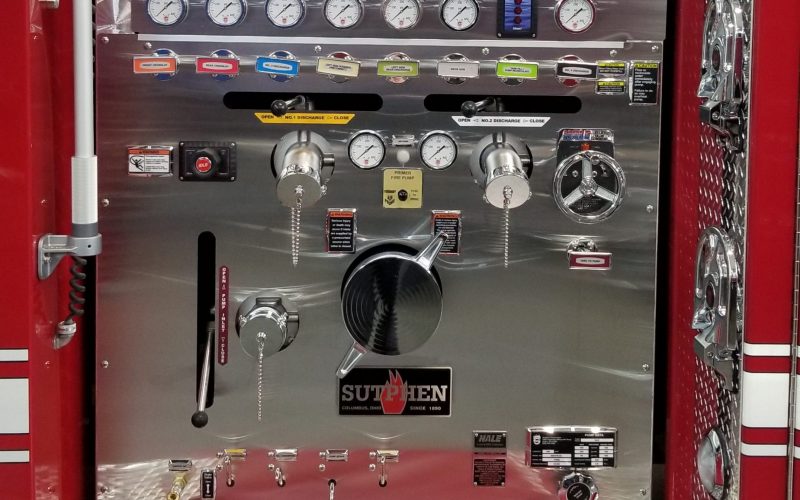

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Front Left of Main Hosebed, (1) 3” Deck Gun
- Crosslays: (2) 2” with 1 1/5” Swivel
- 1,000-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Doors
- 224 cu. ft. Total Compartment Space
- Alco-Lite Ladders (PEL-24 24’ 2-Section & PRL-14, 14’ Roof & 10’ Folding)
- Ladder Chute
OPTIONAL EQUIPMENT:
- 12” Bumper Extension
- Federal Q2B Siren
- Hannay Electric Cord Reel, 150’ (1)
- Booster Reel Hose Rollers, Hannay (5)
- Harrison 10K Diesel Generator
- Whelen Freedom IV 72” LED Light Bar
- FRC Spectra 12V Brow
- Whelen Warning Lights
