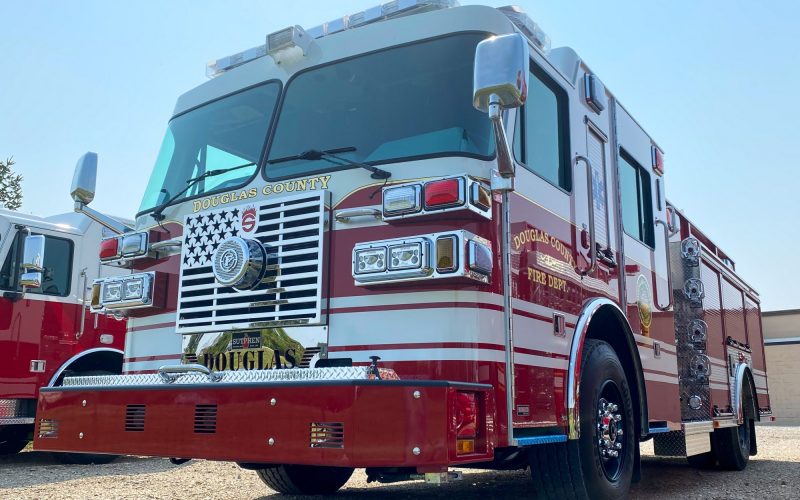

Delivery Date:
08/19/2021
Department Name:
Douglas County Fire Department
Department City / State:
Douglas County, GA

Sutphen Corporation – HS #6880

Dealer – Williams Fire Apparatus

WHEELBASE: 196”

TRAVEL HEIGHT: 9’ – 11”

TRAVEL LENGTH: 32′ – 3”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73”cab with 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Single Domex Frame Rails (110K PSI)
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 24,000 lbs.
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5 EVS3000

PUMP:                  Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (2) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
  • Crosslay: (2) 1 ½” & (1) 2 ½” w/ Swivels
  • 750-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Roll-Up Compartment Doors
  • Over 220 cu. ft. Total Compartment Space
  • Body: G2 – Alum 40/51 Ladder Chute

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel, Painted Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera: FRC, Inview Trueview, Single Camera
  • Intercom System: David Clark
  • Air Bottle Compartments (4)
  • Whelen PFH1 LED Brow Light
  • Whelen Freedom LED Lightbar
  • Whelen 900 Scene
  • Whelen PFH2 12V Telescopic Lights
