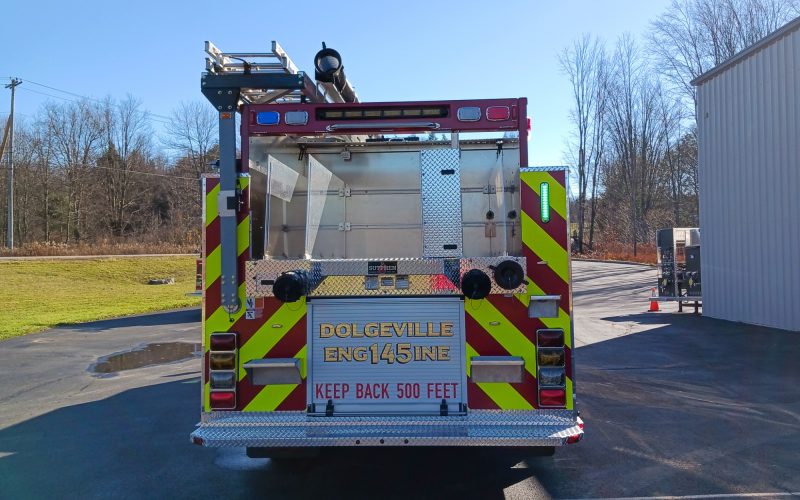

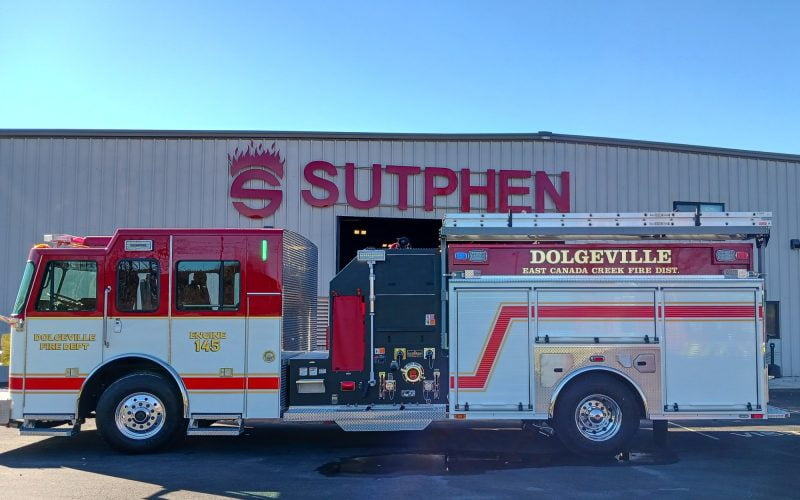

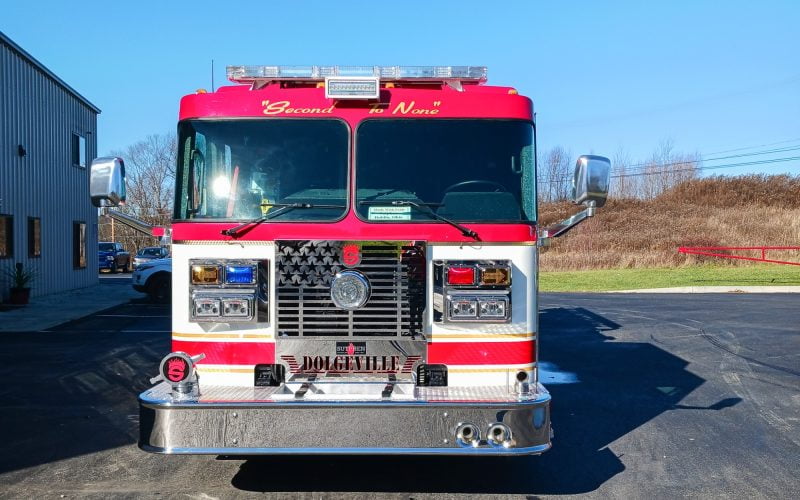

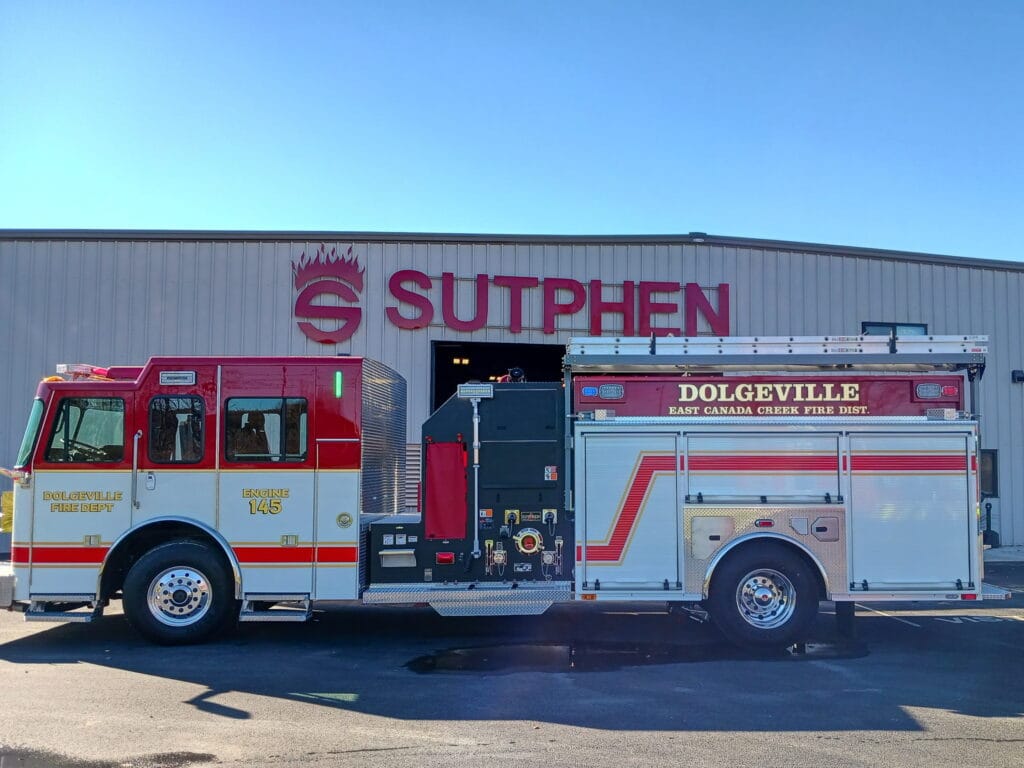

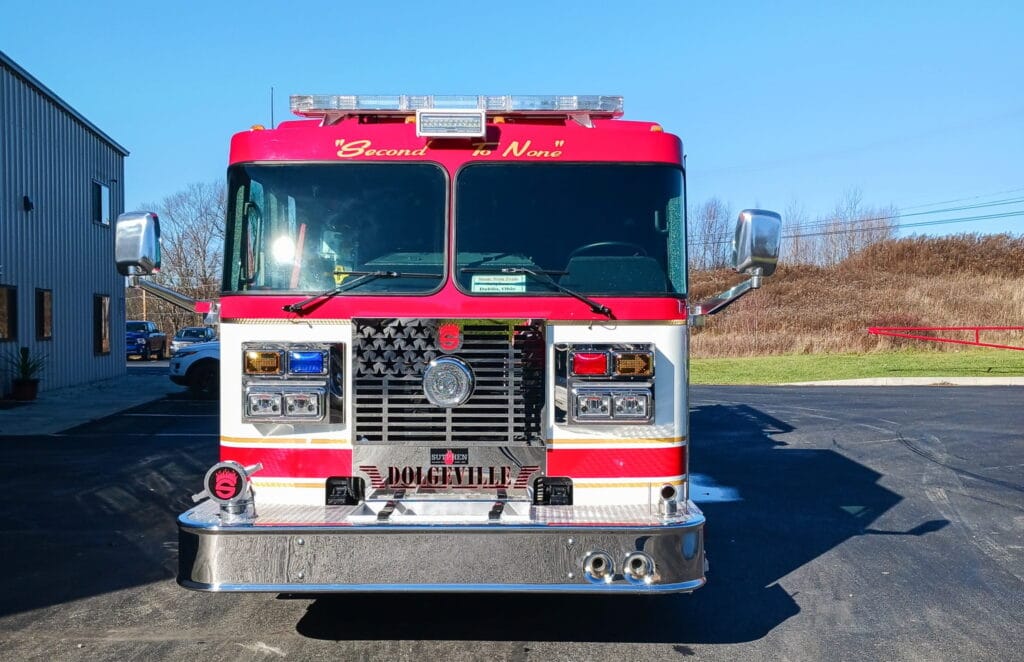

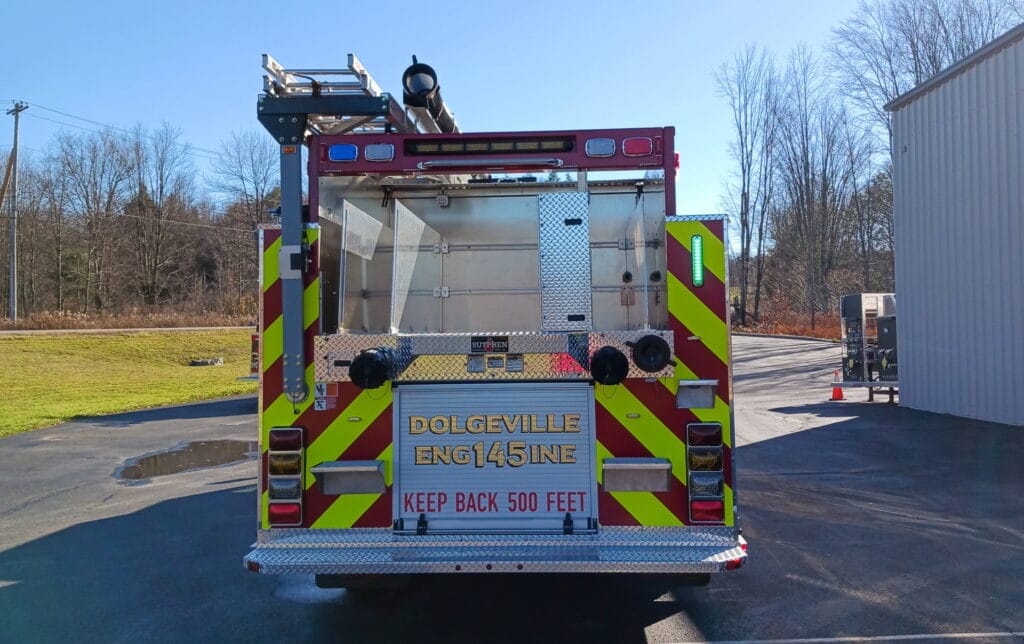

Custom Pumper – Dolgeville Fire Department, NY

Sutphen Corporation – HS #7181

Dealer – Vander Molen Fire Apparatus Sales and Service

WHEELBASE: 233”

TRAVEL HEIGHT: 10’ – 6 ½”

TRAVEL LENGTH: 35′ – 6 ¼”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” cab with 10” Raised Roof

• Four-Door, Six-Person Cab
• 10” Single Frame Rails (50K PSI)
• Front Axle and Suspension: 20,000 lbs.
• Rear Axle and Suspension: 27,000 lbs.
• Engine: Cummins L 9, 450HP
• Alternator: Leece Neville 320 AMP
• Transmission: Allison Gen 5, EVS3000

PUMP:                  Hale

• QMAX-2000 GPM, Single Stage Pump
• Discharge: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 4” Pipe to Left Rear, (1) 3” Pipe to Right Rear, (1) 2” Front/Left of Main Hosebed, (1) 2 ½” Front/Right of Main Hosebed, (1) 3” Front Bumper, (1) 3” Deck Gun
• Speedlays: (2) 1 ½”
• 1,000-Gallon Water Tank
• 40-Gallon Foam Tank
• Foam System: FomaPro 2001, 2.6 GPM

BODY:                  Sutphen

• 3/16” Extruded Aluminum
• Amdor Roll-Up Compartment Doors
• Over 190 cu. ft. Total Compartment Space
• Duo Safety Ladder Package: 900A 24’ 2-Section & 775A 14’ Roof & 10’ Folding
• Body: PA-13 RES 43/53, HYD Ladder Rack

ADDITIONAL EQUIPMENT:

• 24” Polished Stainless Steel, Bumper Extension
• Federal Q2B Siren, Grille Mount
• Ziamatic 2 Arm Outside Ladder Rack
• Hannay Booster Reel, 100’ (1)
• Whelen 72” Freedom Lightbar
• FR Spectra Brow Light
• FR Spectra Scene Lights
• Whelen M9 Scene Lights
• Whelen 36” Traffic Advisor
