Delivery Date:
03/17/2019
Department Name:
Des Moines Fire Department
Department City / State:
Des Moines Fire Department

Sutphen Corporation – HS #6326

Dealer – Jim Bartholomew

WHEEL BASE: 247”

TRAVEL HEIGHT: 11’ – 8”

TRAVEL LENGTH: 47’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • Front Axle and Suspension 25,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins ISX 15, 600 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

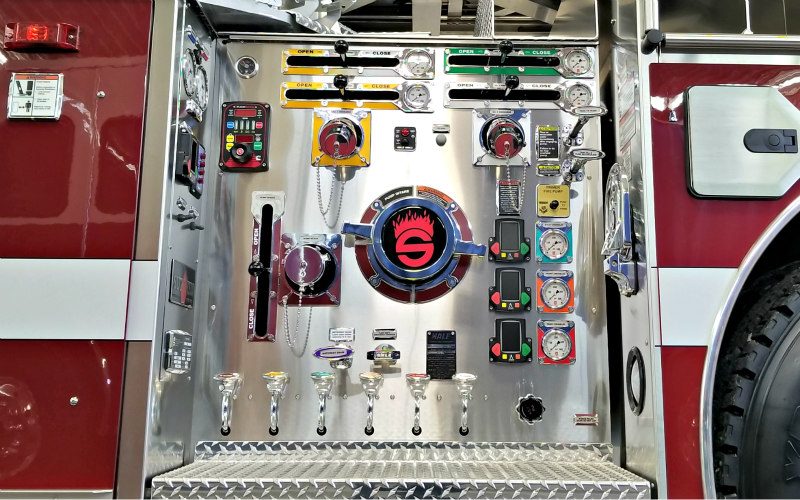

PUMP:                 Hale

  • QMAX-2000 GPM Single Stage
  • Discharges: (2) 2 ½” Left; (1) 3” Right; (1) 2 ½” Right
  • Crosslays: (1) 2 ½”, 2 ½” Swivel & (2) 2” Crosslay with 1 ½” Swivel
  • 250-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • ROM Roll-Up Compartment Door
  • 293 cu. ft. of Total Compartment Space
  • Duo-Safety Ladder Compliment (28’ 2-Section, 16’, 16’, 24’ 2-Section, 35’ 2-Section & 10’ F)
  • SPH-3: Left 56” High/ Right 56” High

OPTIONAL EQUIPMENT:

  • 12” Bumper Extension
  • Federal Q2B Siren
  • Pike Pole Storage Tubes (6)
  • FRC, Inview 360 Camera System
  • Onan 10KW, Generator
  • Hannay Electric Cord Reel, 150’ (1)
  • 17’ Little Giant Ladder
  • Whelen PFH2 12V LED Brow
  • Whelen Freedom IV (18) LED Lightbar
  • Whelen PFH2 12V LED Scene
  • Stokes Storage Box Mounted on Boom
  • Intercom System, FRC ACT 2-Station

MONITOR:

  • Drive Side Monitor: Elkhart Cobra EXM 1250 GPM w/ Elkhart SM-1250 E w/ 248A Stream Shaper
  • Officer Side Monitor: Akron 3473 Gemini Manual 1000 GPM
