Delivery Date:
02/16/2022
Department Name:
Dearborn Fire Department
Department City / State:
Dearborn, MI
Truck Type:
Sutphen Corporation – HS #6885
Dealer – Apollo Fire Equipment
WHEELBASE: 185 ½”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 32’ – 2”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Single Frame Rails, Single Axle (50K PSI)
- Front Axle and Suspension 18,000 lbs.
- Rear Suspension 24,000 lbs.
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000

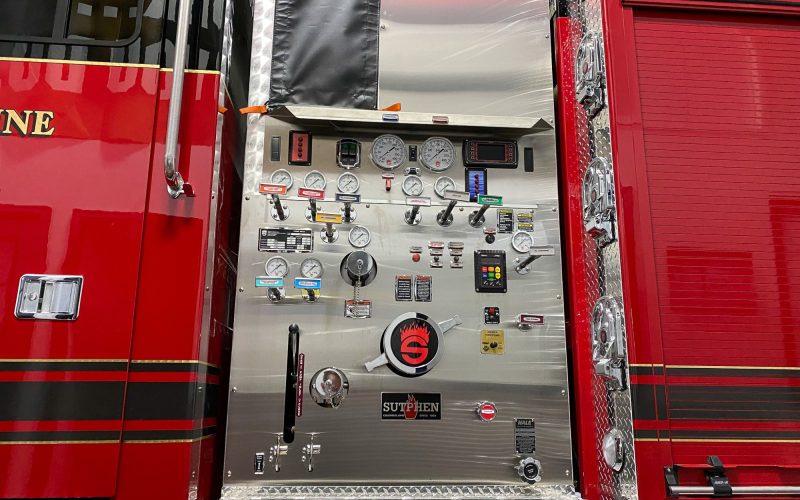

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (1) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right Rear, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 2 ½” Front Bumper, 3” Deck Gun
- Crosslays: (2) 2” w/ 1 ½” Swivel
- 750-Gallon Water Tank
- 20-Gallon Foam Tank
- Foam System: Hale SmartFoam 2.1A
BODY: Sutphen
- 3/16” Extruded Aluminum
- AMDOR Roll-Up Compartment Doors
- 299 cu. ft. Total Compartment Space
- Alco-Lite Ladder Package: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
- Body: S9 – Aluminum 43/53 Ladders Through the Tank
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: Safety Vision SV-CLCD0-70
- Whelen Freedom IV 72” LED Light Bar
- Whelen PFH2 12V LED Brow Light
- Whelen M9V2 Combo LED
- FireTech Guardian Elite FT-GSEM 12V LED Scene Lights
- Recessed Whelen Traffic Advisor
