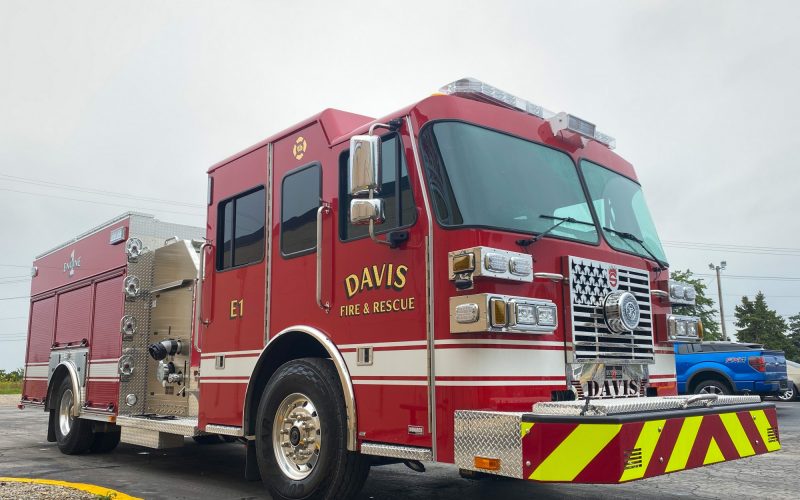

Custom Pumper – Davis Fire Department, OK

Sutphen Corporation – HS #6897

Dealer – Heartland Fire Trucks

WHEELBASE: 215”

TRAVEL HEIGHT: 9’ – 11”

TRAVEL LENGTH: 34′ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62”cab with 10” Raised Roof

• Four-Door, Six-Person Cab
• 10” Double Frame Rails (50K PSI)
• Front Axle and Suspension: 19,000 lbs.
• Rear Axle and Suspension: 27,000 lbs.
• Engine: Cummins L 9, 380 HP
• Alternator: Leece Neville 320 AMP
• Transmission: Allison Gen 5, EVS3000

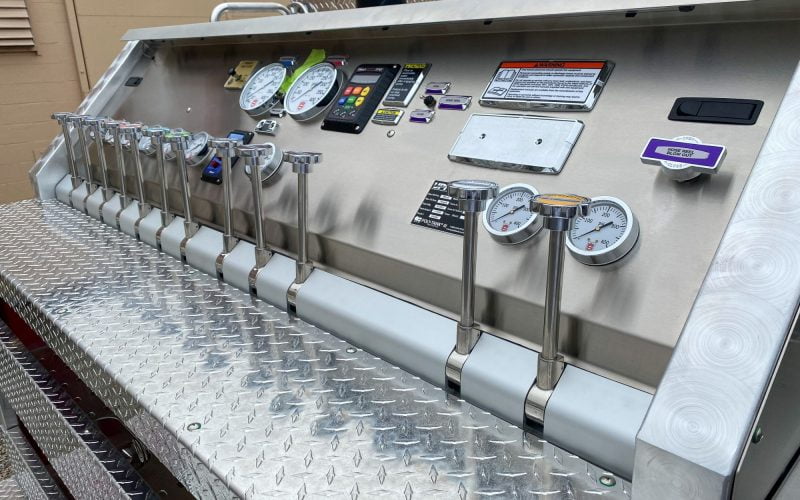

PUMP:                  Hale

• QMAX-1500 GPM, Single Stage Pump
• Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
• Crosslay: (1) 2 ½”
• Speedlays: (2) 2” w/ 1 ½” Swivel
• 1,000-Gallon Water Tank

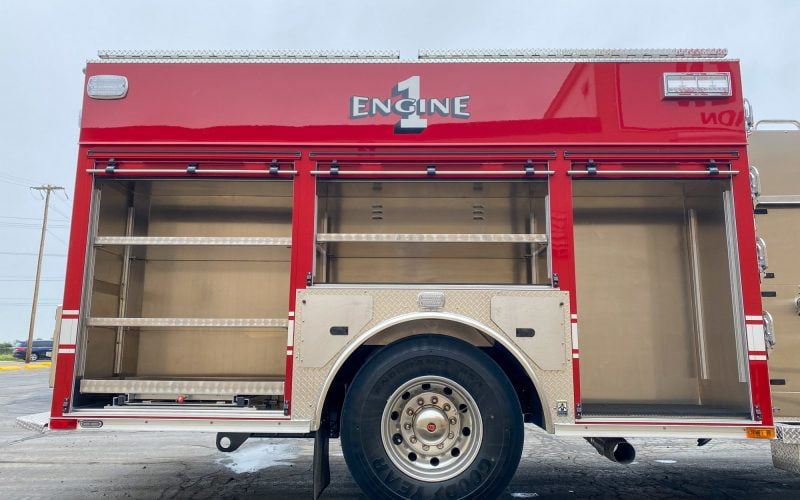

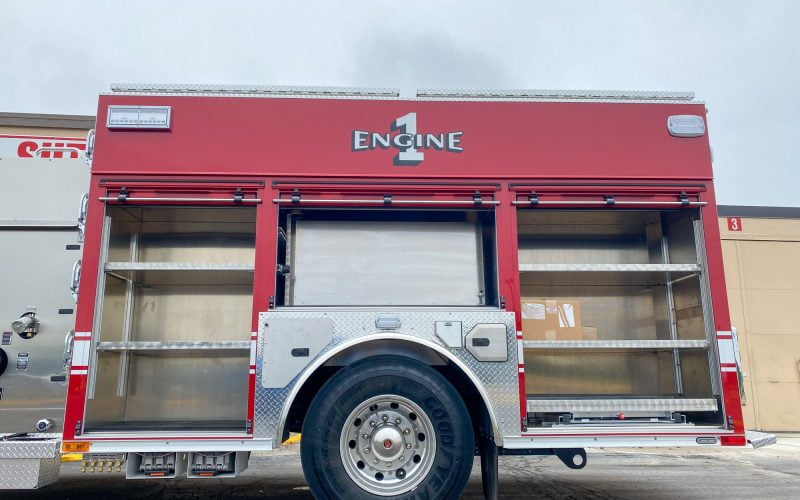

BODY:                  Sutphen

• 3/16” Extruded Aluminum
• Amdor Roll-Up Compartment Doors
• 294 cu. ft. Total Compartment Space
• Alco-Lite Ladder Package (PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding)
• Body: G9 – Alum 40/51 Ladders Through Tank

ADDITIONAL EQUIPMENT:

• 24” Formed Steel Channel, Bumper Extension
• Federal Q2B Siren, Grille Mount
• Camera System: FRC, Inview Trueview, Two Cameras
• Triple Air Bottle Compartments (2)
• Whelen PFH2 LED Brow Light
• Whelen Freedom LED Lightbar
• Whelen PCPMS2 Scene
• Whelen M9 Red LEDs
