Delivery Date:
10/21/2020
Department Name:
Danville Fire Department
Department City / State:
Danville, NH
Truck Type:
Sutphen Corporation – HS #6688
Dealer – Dingee Machine Company
WHEELBASE: 196”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 32’ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Frame Rails, Domex (110K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 270 AMP
- Transmission: Allison Gen 5, EVS 3000
PUMP: Hale
- QMAX-1500 Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 1 ½” & (1) 2 ½” w/ Swivels
- 500-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: Hale Smartfoam 2.1A
BODY: Sutphen
- 3/16” Extruded Aluminum

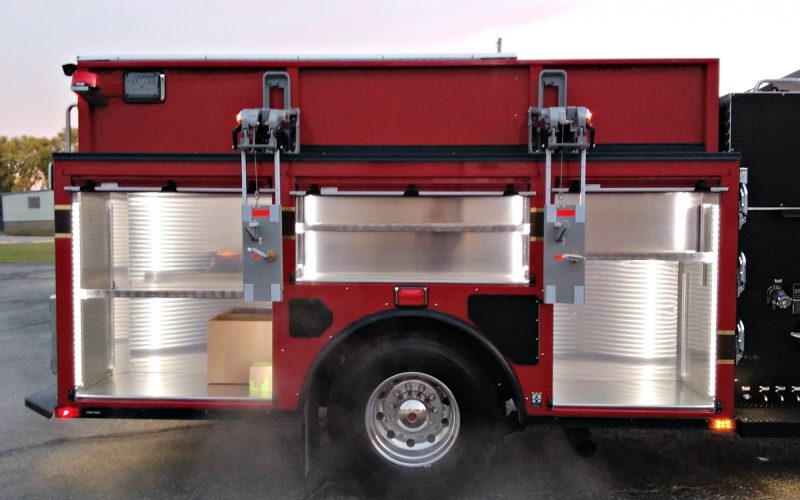

- ROM Roll Up Compartment Doors
- Over 190 cu. ft. Total Compartment Space
- Body: G7-Alum 40/51 Electric Ladder Rack
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Channel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Ziamatic Quic-Lift Electric Ladder Rack
- Whelen PFH2 LED Brow Light
- Whelen Freedom LED Lightbar
- Whelen 900 LED Scene Lights
- Whelen PFH1 12V Telescopic Lights
- Whelen PFH1 12V Lights
- Triple Air Bottle Compartments (2)
