Delivery Date:
05/19/2022
Department Name:

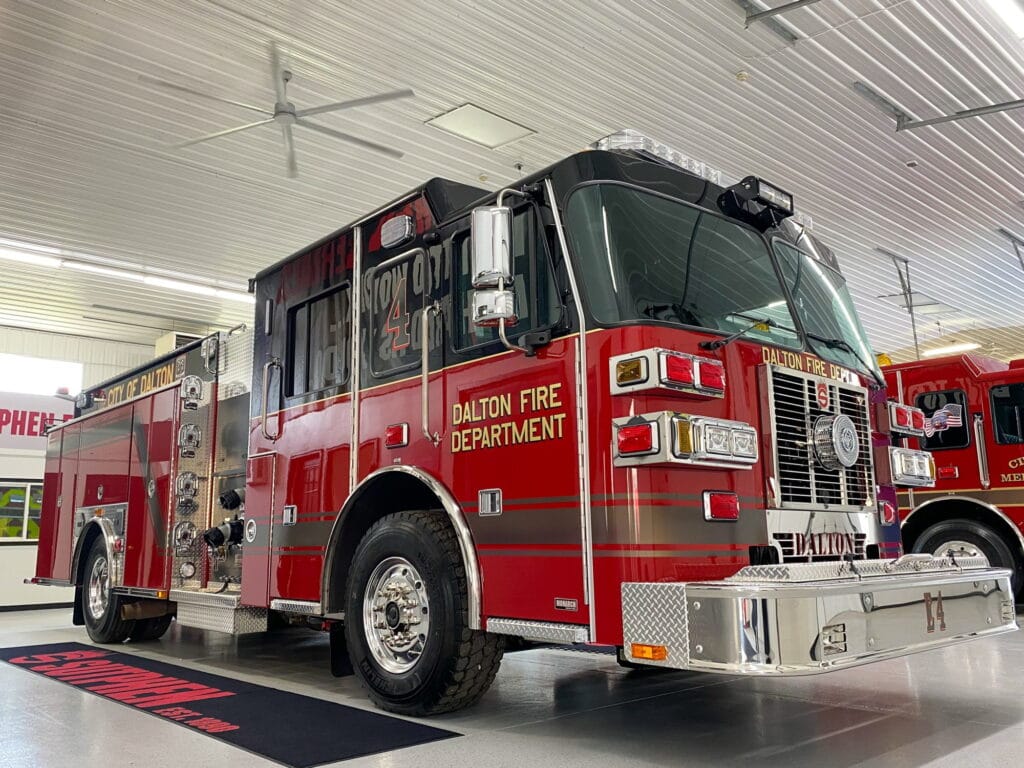

City of Dalton Fire Department
Department City / State:
Dalton, GA
Truck Type:
Sutphen Corporation – HS #7000
Dealer – Williams Fire Apparatus
WHEELBASE: 199 – 0 ½”
TRAVEL HEIGHT: 9’ – 8”
TRAVEL LENGTH: 32’ – 9 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 19,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins X 12, 500HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS4000

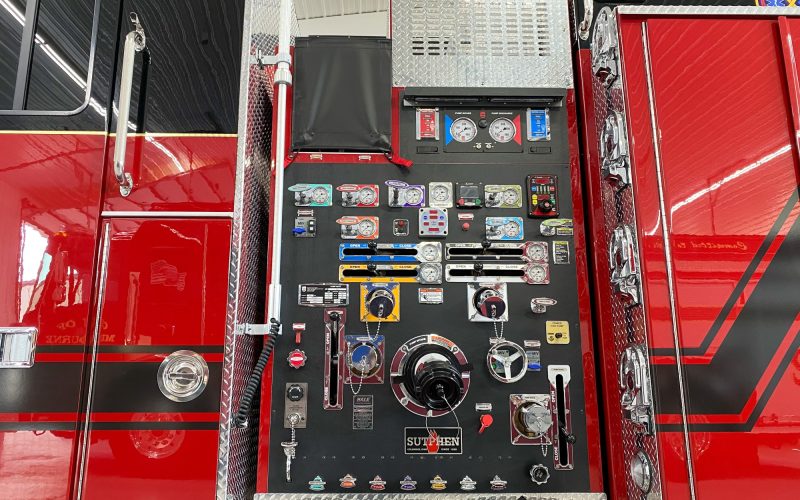

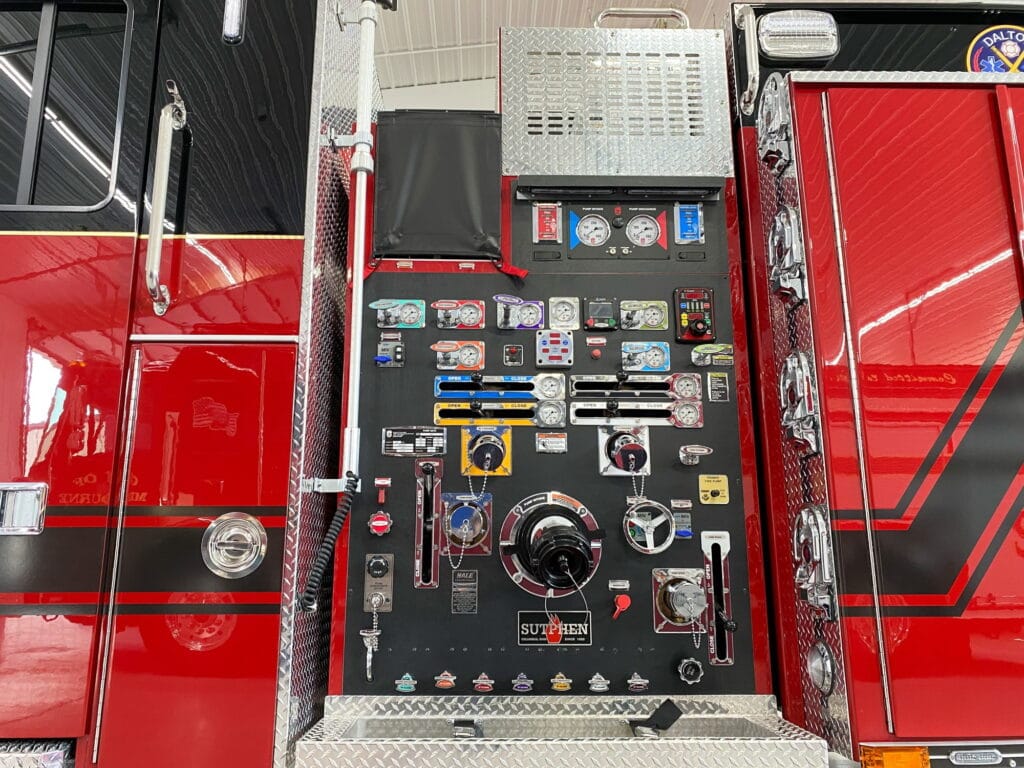

PUMP: Hale
- QMAX-2000 GPM 6” Suction Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 2 ½” Front/Right of Main Hosebed, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Crosslays: (2) 2” Valve-Piping & (1) 1 ½” Swivel
- 750-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: Elkhart W/ Flush
BODY: Sutphen
- 3/16” Extruded Aluminum
- Hinged Compartment Doors Roll-up Compartment Doors, Satin Finish
- Over 230 cu. ft. Total Compartment Space
- Duo-Safety Ladder Package: 900A 24’ 2-Section & 775DR 14’ Roof & 10’ Folding
- Body: PA-12 Res 43/53 Ladder Chute
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: Inview Trueview, Two Cameras
- Intercom System: Wired, Setcom, 6 Position
- Whelen Freedom IV (16) 72” LED Lightbar
- Whelen TAL65 Traffic Advisor
- Whelen PFH2 12V LED Brow
- Whelen M9 12V LED Scene
