Delivery Date:
12/20/2022
Department Name:
Cumberland Trail Fire District
Department City / State:
St. Clairsville, Ohio
Truck Type:

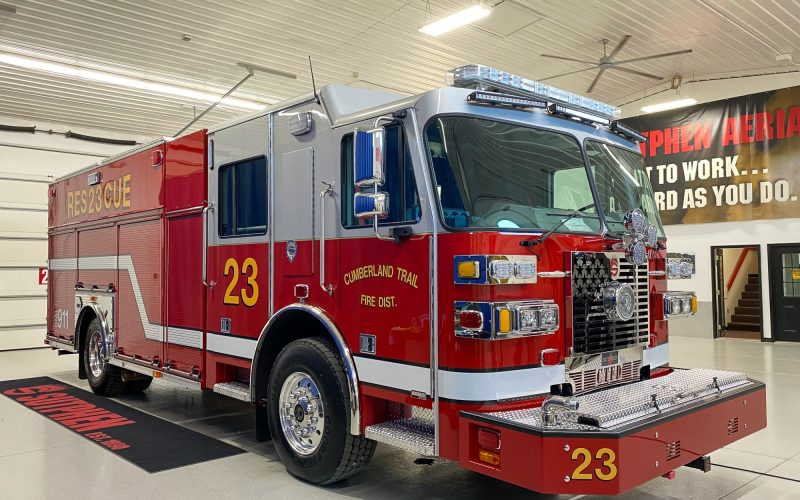

Sutphen Corporation – HS #7017
Dealer – Heritage Fire Equipment
WHEELBASE: 186 ½”
TRAVEL HEIGHT: 9’ – 9”
TRAVEL LENGTH: 32’ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 24,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS3000

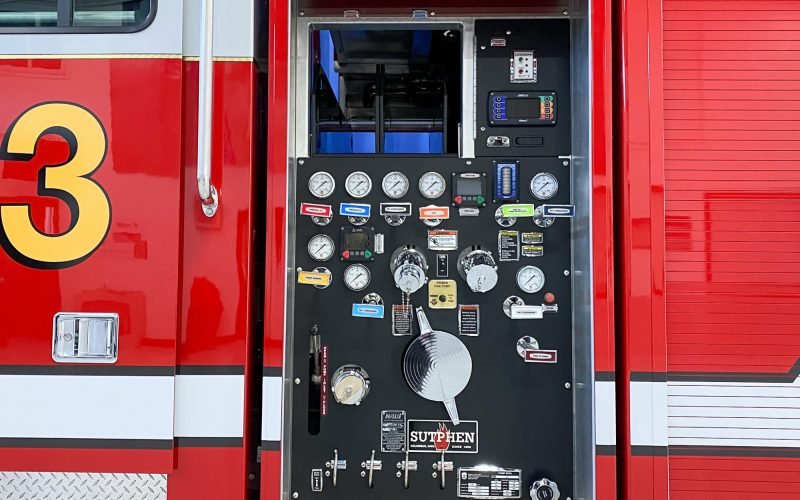

PUMP: Hale
- XS QMAX – 1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Right Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front Bumper Discharge, (1) 3” Deck Gun
- Speedlays: (2) 2” w/ 1 ½” Swivel & Poly Lift-Out Trays
- 750-Gallon Water Tank
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors, Satin Finish
- Over 400 cu ft. Total Compartment Space
- Duo-Safety Ladder Package: (1) 900A 24’ 2-section & (1) 775A 14’ Roof & (1) 10’ Folding
- Body: S8 – Aluminum 56/53 Ladder Through the Tank & Double Hatch
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Single Camera
- Roto-Ray Warning Light
- Command Light SL442D-FS Recessed in Hosebed
- Whelen Freedom IV 72” LED Light Bar
- FireTech 3-Piece 72” 12V LED Brow Light
- FRC Spectra 12V LED Scene Lights
- Whelen M9 12V LED Scene Lights
