Delivery Date:
06/10/2022
Department Name:
Hartford Fire Department
Department City / State:
Croton, OH
Truck Type:

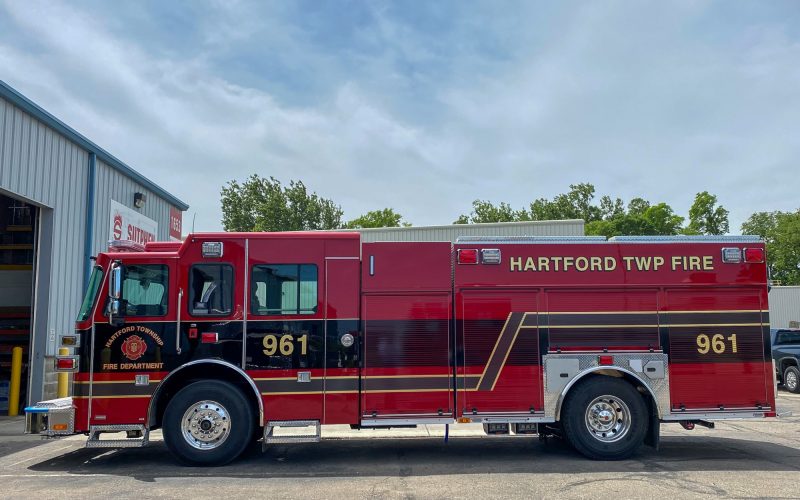

Sutphen Corporation – HS #7090
Dealer – Heritage Fire Equipment
WHEELBASE: 198”
TRAVEL HEIGHT: 10’
TRAVEL LENGTH: 32’ – 5”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 20,000 lbs
- Rear Axle and Suspension 27,000 lbs
- Engine: Cummins X 12, 455HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS4000

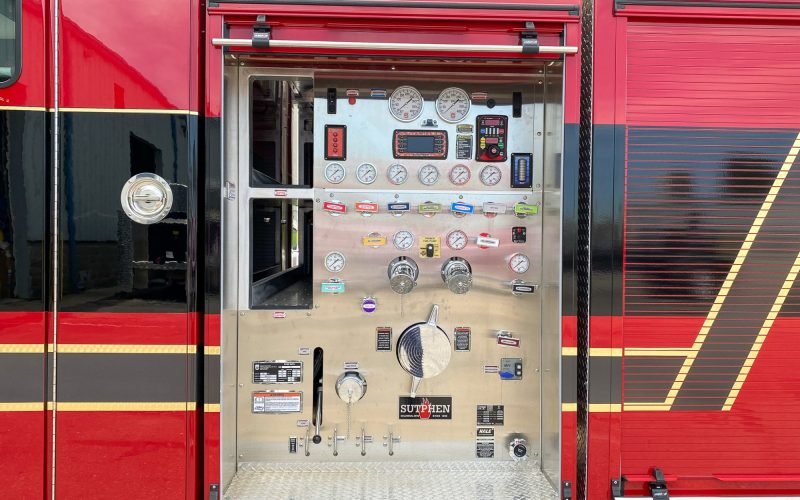

PUMP: Hale
- XS QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Left Rear, (1) 2 ½” Right Rear, (1) 1 ½” Front Bumper, (1) 3” Deck Gun
- Speedlays: (2) 2” w/ 1 ½” Swivels & Poly Lift-Out Trays
- 1000-Gallon Water Tank
- 20-Gallon Foam Tank
- Foam System: Smartfoam 5.0 (PRG)
BODY: Sutphen
- 3/16” Extruded Aluminum
- Amdor Roll-Up Compartment Doors, Painted
- Over 294 cu ft. Total Compartment Space
- Alco-Lite Pel-24 Ladder Package: 24’ 2-section & PRL-14, 14’ Roof & 10’ Folding
- Body: G9 – Alum 40/51 Ladders Thru Tank
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Inverter: Vanner VLT12-300
- Whelen Freedom LED Lightbar
- HIVIZ 72” Brow Light
- Guardian Elite Scene Light
- FireTech LED Work Lights

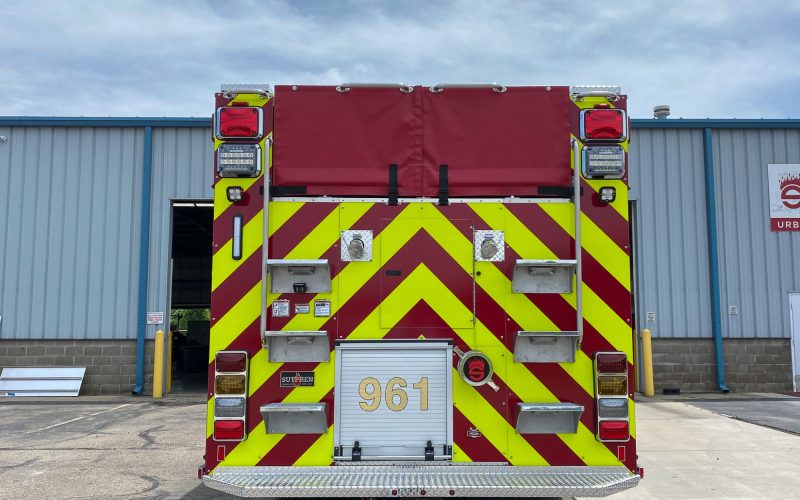

- Whelen 600 LED Quad Tail Lights
