Delivery Date:
03/02/2021
Department Name:
Covington Fire Department
Department City / State:
Covington, GA
Truck Type:
Sutphen Corporation – HS #6698
Dealer – Williams Fire Apparatus
WHEELBASE: 199”
TRAVEL HEIGHT: 9’ – 10”
TRAVEL LENGTH: 33’ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof
- Four-Door, Six-person cab
- 10” Double Rails, Single Axle (110K PSI)
- Front Axle and Suspension 20,000 lbs.
- Suspension Rear Firemaax 24,000 lbs.
- Engine: Cummins L 9, 450 HP
- Alternator: C. E. Niehoff 360 AMP
- Transmission: Allison Gen 5, EVS3000

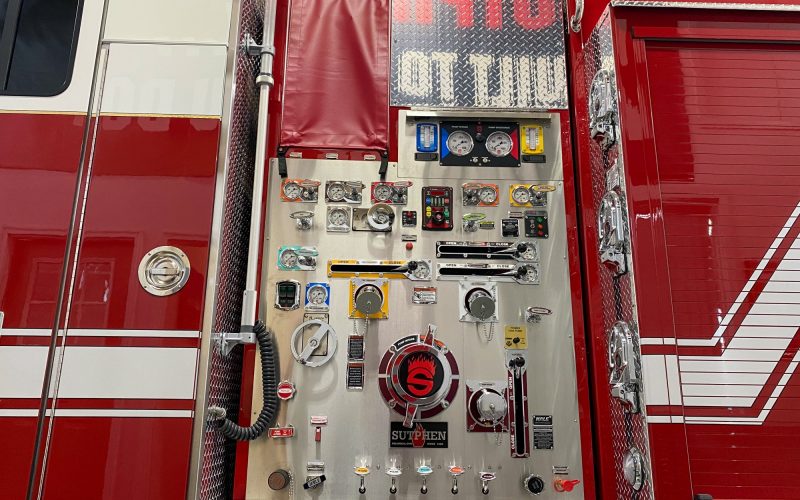

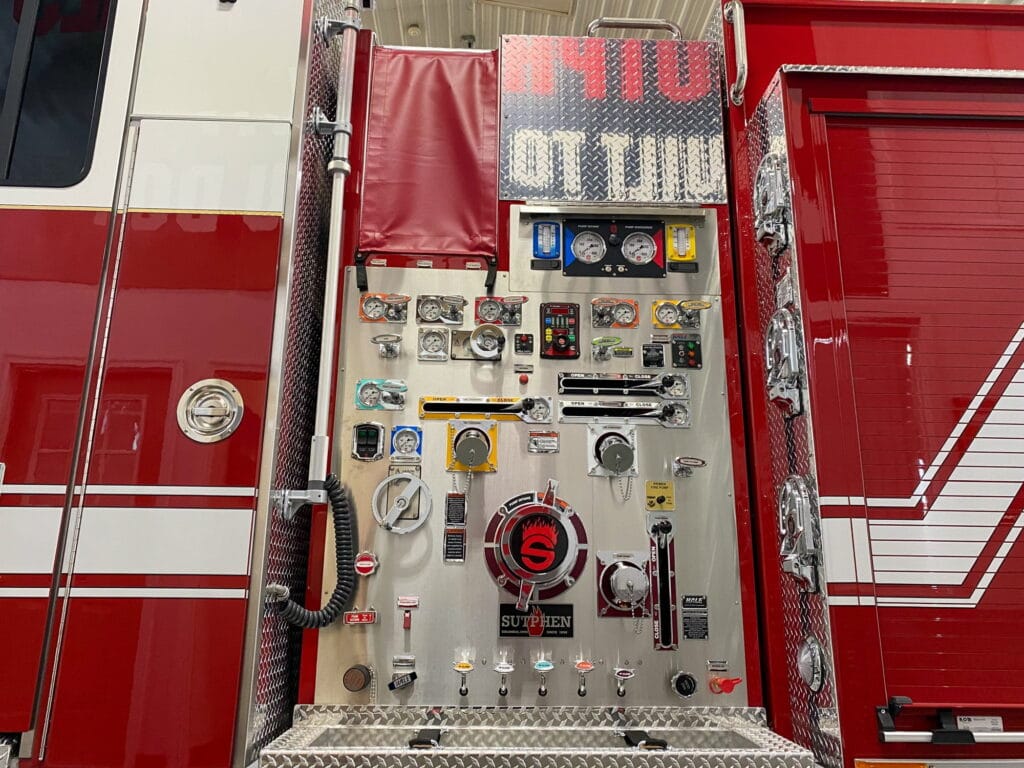

PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Right, (1) 2 ½” Valve 2 ½” pipe to left rear, (1) 2 ½” Valve 2 ½” pipe right rear, (1) 1 ½” Front Bumper w/ 2” plumbing, (1) 3” Deck Gun
- Crosslays: (1) 2 ½” with 2 ½” swivel, (2) 2” with 1 ½” Swivel
- 750-Gallon Water Tank
- 30 Gallon Foam Tank

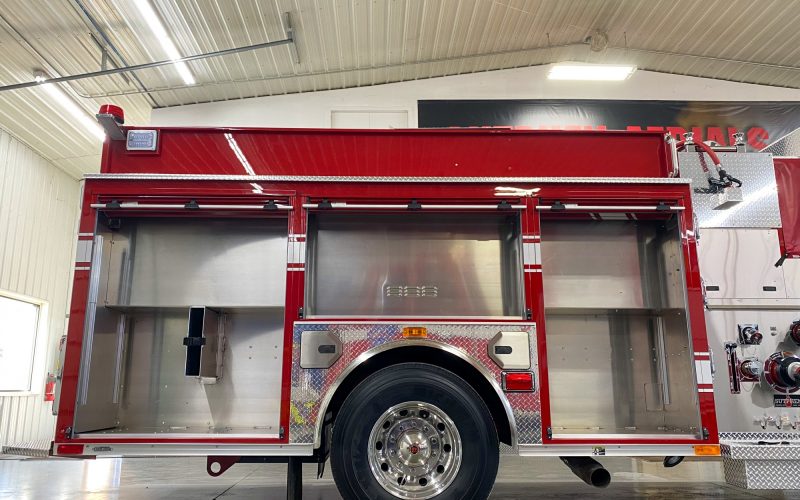

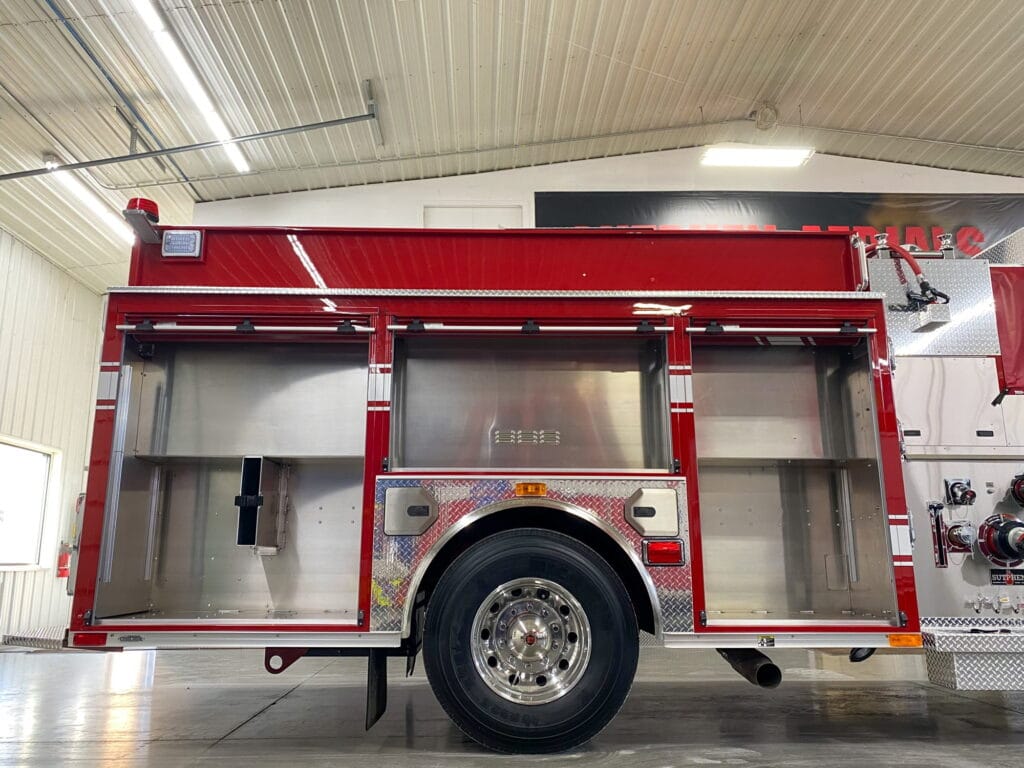

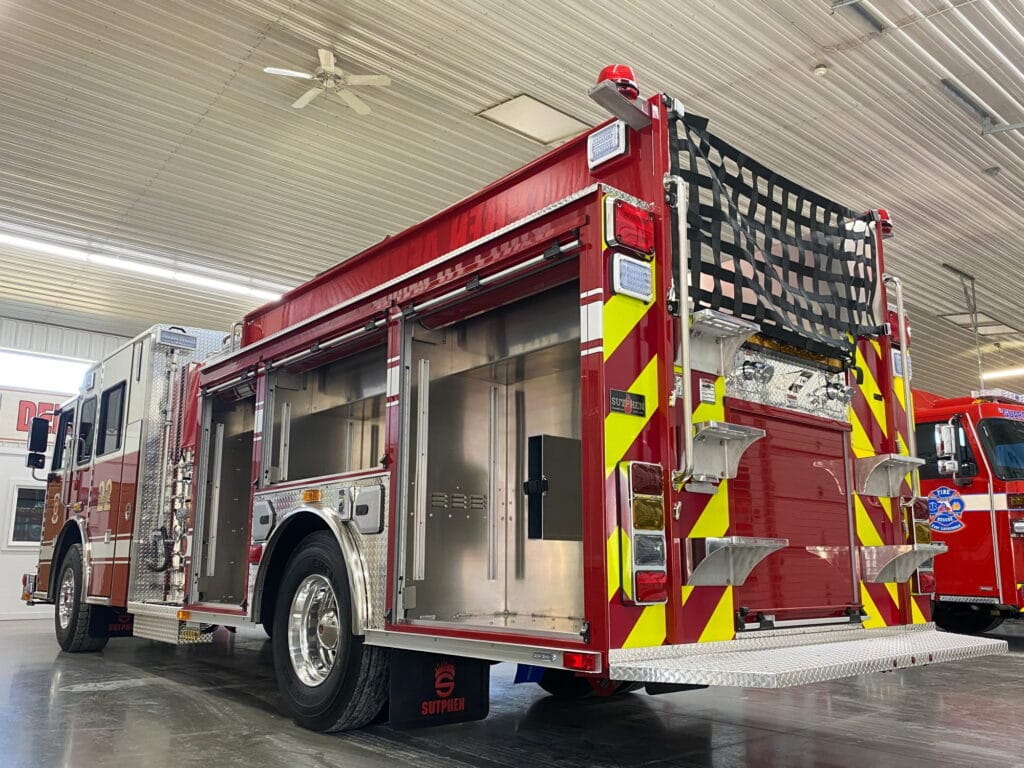

BODY: Sutphen
- 3/16” Extruded Aluminum
- ROM Roll-Up Painted Compartment Doors
- 3 cu. ft. Total Compartment Space
- Duo-Safety 10’ Folding Attic Ladder
- Body: PA-12
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: Voyager 3 (Wired)
- Federal Signal VSLR35-VSLR85 Lightbars
- FR Spectra 12V Brow
- FR Spectra 900 12V Scene
- Whelen 600 Red LED
