Delivery Date:
10/28/2022
Department Name:
Cortland Fire Department
Department City / State:
Cortland, OH

Sutphen Corporation – HS #7028

Dealer –  Herb Fire

WHEELBASE: 197 – 0 ½”

TRAVEL HEIGHT: 9’ – 9”

TRAVEL LENGTH: 33′ – 1 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins L 9, 450 HP
  • Alternator: Delco-Remy 430 AMP
  • Transmission: Allison Gen 5, EVS3000

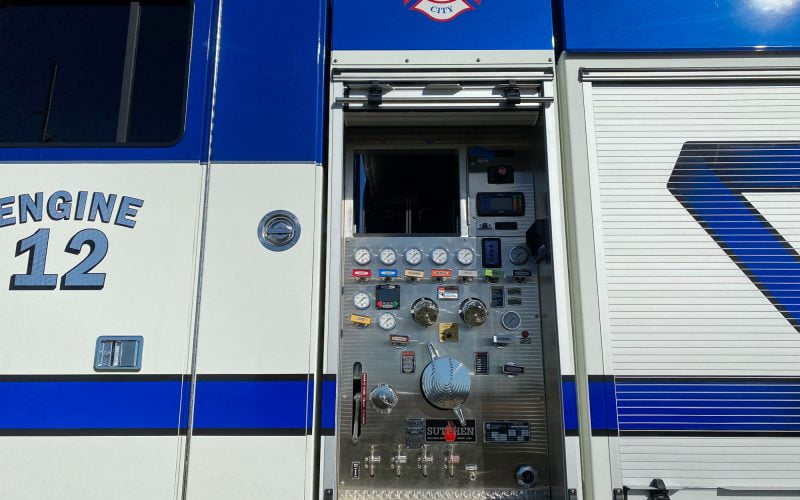

PUMP:                  Hale

  • QMAX-2000 GPM Single Stage Pump
  • Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 3” Right Rear, (1) 2 ½” Front/Left of Main Hosebed, (1) 2 ½” Front Bumper, (1) 3” Deck Gun
  • Speedlays: (2) 2” w/ 1 ½” Swivels & Poly Lift-Out Trays
  • 1,000-Gallon Water Tank

BODY:                  Sutphen

  • 3/16” Extruded Aluminum
  • Amdor Compartment Doors

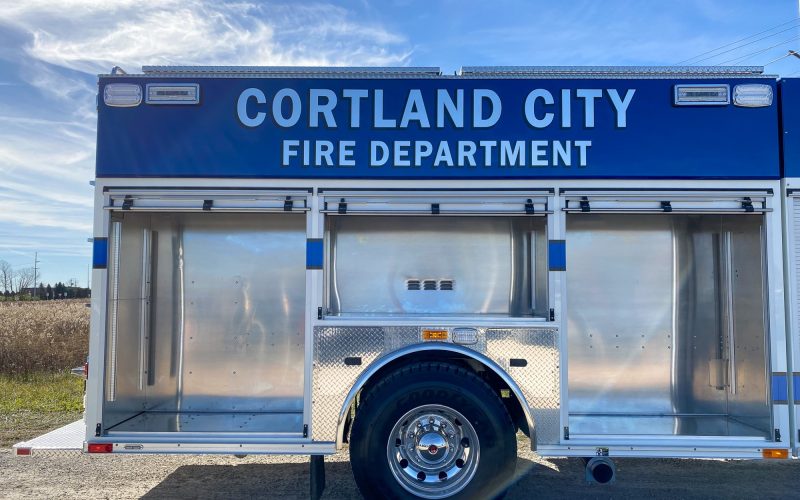

  • Over 400 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Compliment: PEL-24 24’ 2-Section & PRL-14 14’ Roof & 10’ Folding
  • Body: S8 – Alum 56/53 Ladder through Tank & Double Hatch

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Two Cameras
  • Whelen Freedom IV 72” Lightbar
  • FireTech 72” 12V Brow Light
  • 12V Spectra Scene Light
  • Whelen M9 Warning Light
  • Whelen M6 Warning Light
  • Whelen TAL65 Traffic Advisor
  • Whelen M9V2 Warning/Scene Light
